JimSnyder19/IMG_4048.JPG

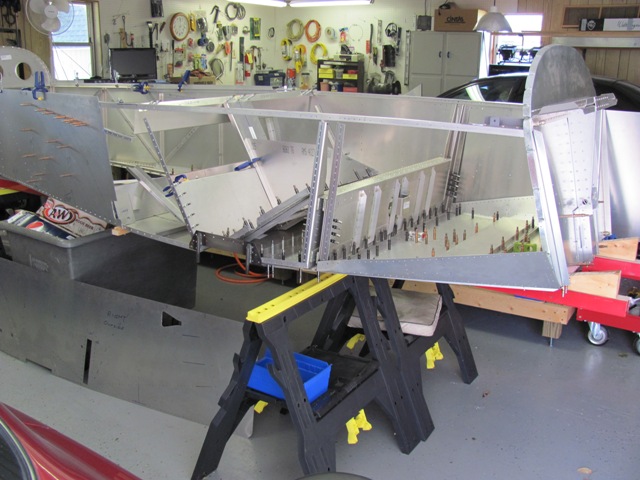

Oct 2, 2011 - Removed right side skin  to gain access to right seat back channel and rear spar support.
JimSnyder19/IMG_4049.JPG

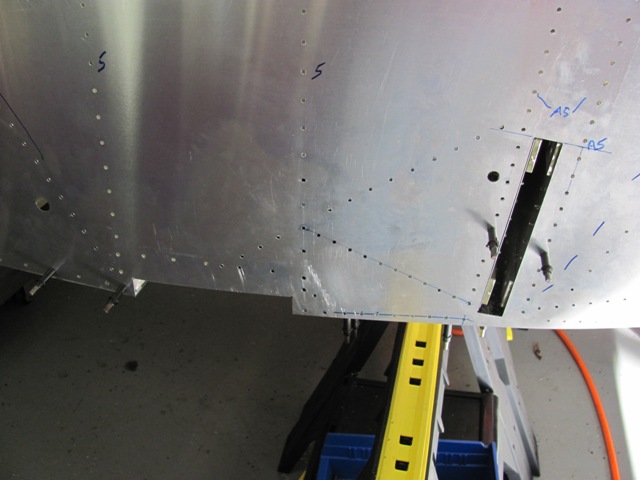

Oct 2, 2011 - Replaced skin and drilled seat back channel to side skin.  Drilled right seat front panel side angles to side skin. Drilled gear bolt holes.
JimSnyder19/IMG_4050.JPG

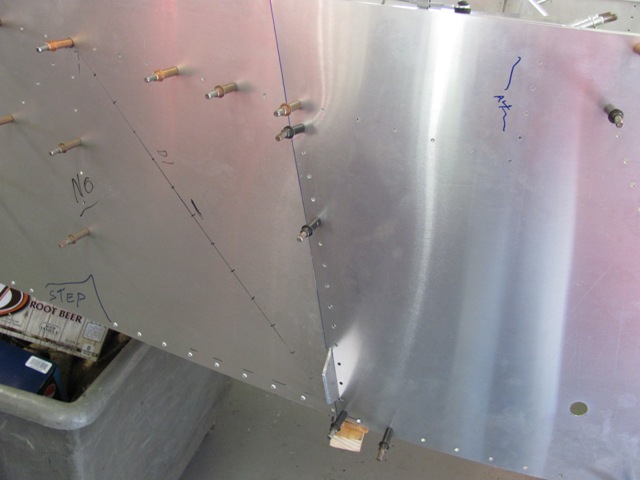

Oct 2, 2011 - Trimmed excess from rear of right side skin.

JimSnyder19/IMG_4052.JPG

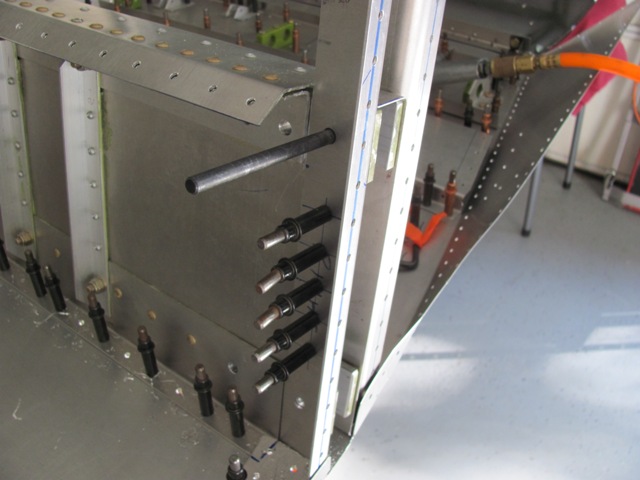

Oct 4, 2011 - Drilled 5/16" bolt holes in right side wing spar uprights.
JimSnyder19/IMG_4053.JPG

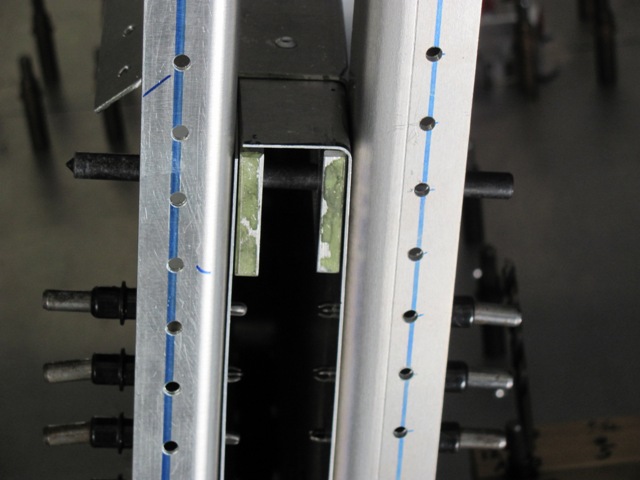

Oct 4, 2011 - Side view right side wing spar uprights showing 5/6" bolt location (center punch through spar at top).  Similar hole at spar bottom.
JimSnyder19/IMG_4057.JPG

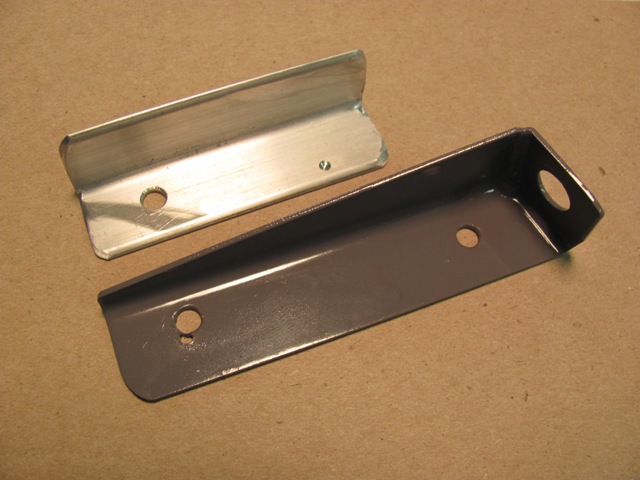

Oct 6, 2011 - Drilled lower engine mounts for AN3 bolts holes.  Piece of .063" extrusion to be used as shim.
JimSnyder19/IMG_4058.JPG

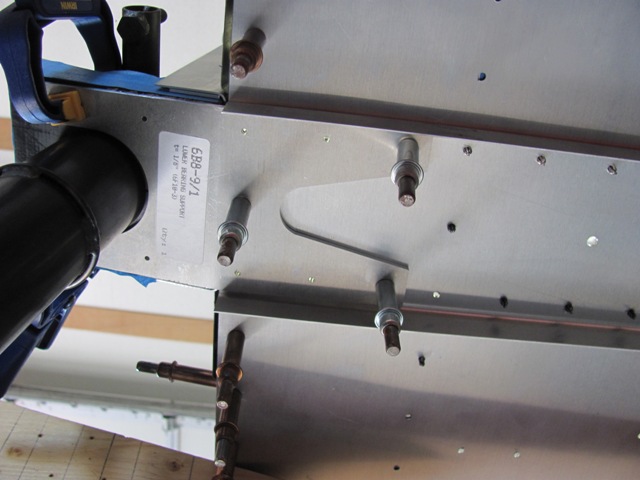

Oct 6, 2011 - Mounted nose gear leg support bracket to bottom of fuselage and firewall.
JimSnyder19/IMG_4059.JPG

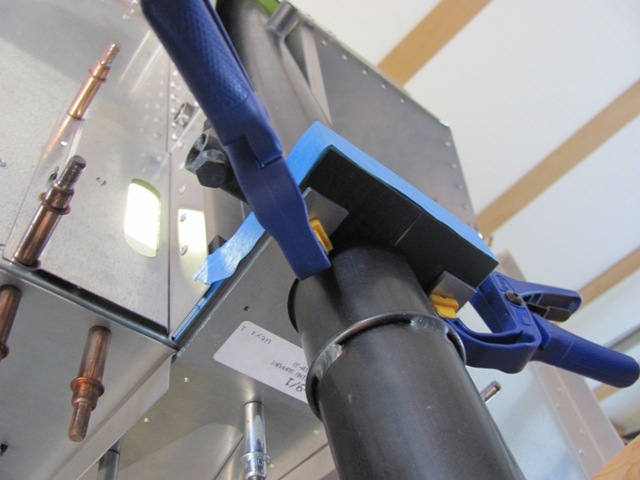

Oct 6, 2011 - Another look at leg support bracket.  The blue tape is holding the nylon bearing block together.
JimSnyder19/IMG_4061.JPG

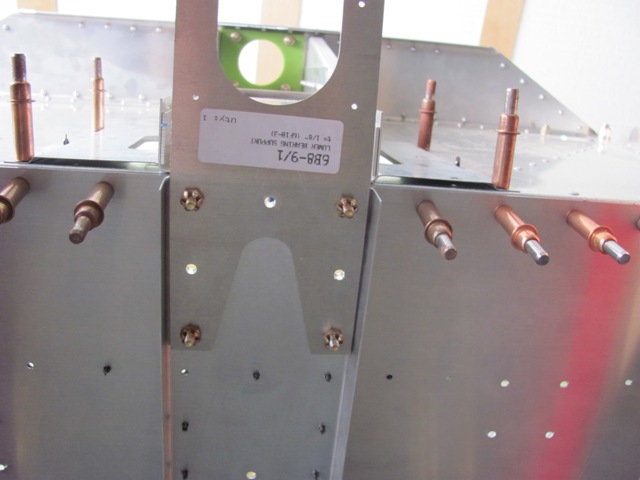

Oct 8, 2011 - Drilled nose gear leg support bracket for AN3 bolts.
JimSnyder19/IMG_4063.JPG

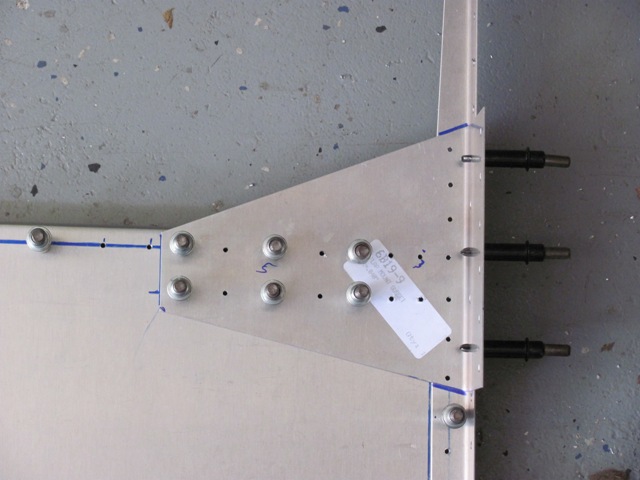

Oct 8, 2011 - Drilled flap motor support to rear seat panel.
JimSnyder19/IMG_4065.JPG

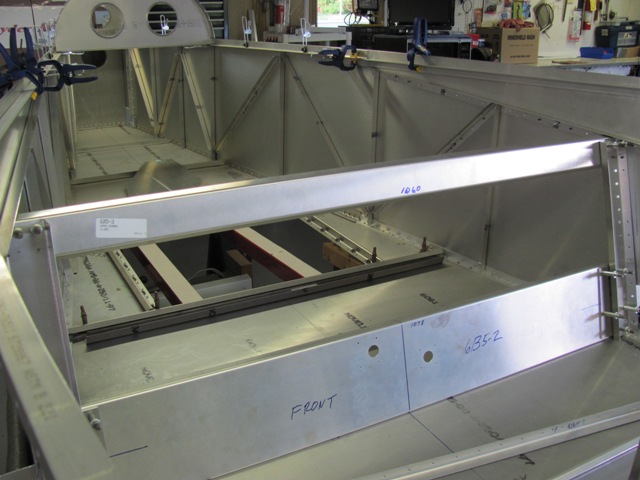

Oct 8, 2011 - Drilled 6B5-3 Upper Channel (baggage support) to rear seat panel uprights.
JimSnyder19/IMG_4067.JPG

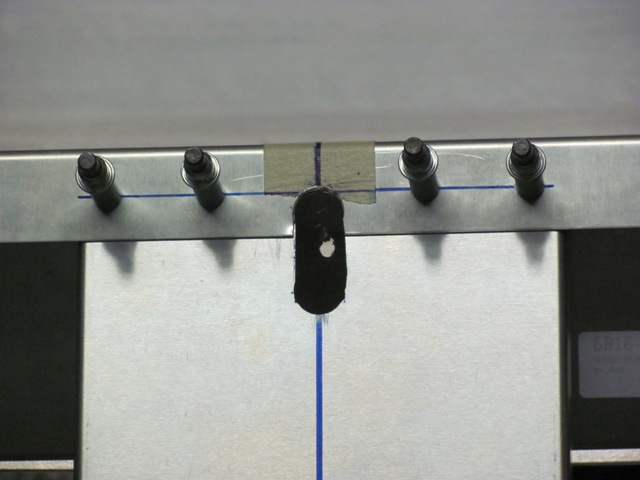

Oct 17, 2011 - Cut slot in top of seat back support for handle of canopy latch control rod.
JimSnyder19/IMG_4068.JPG

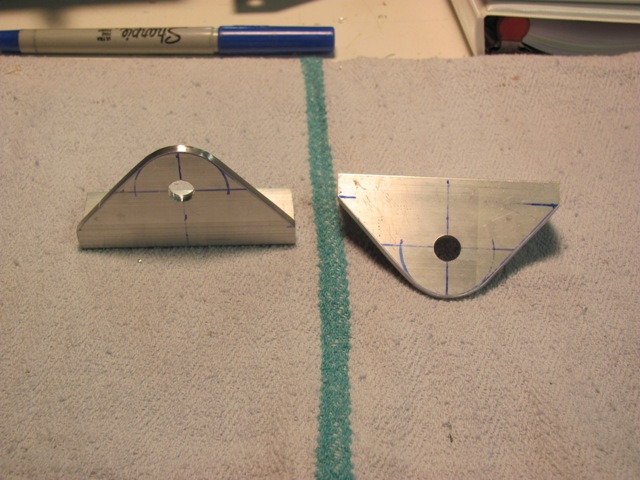

Oct 18, 2011 - Fabricated O/B lower seat belt brackets.
JimSnyder19/IMG_4069.JPG

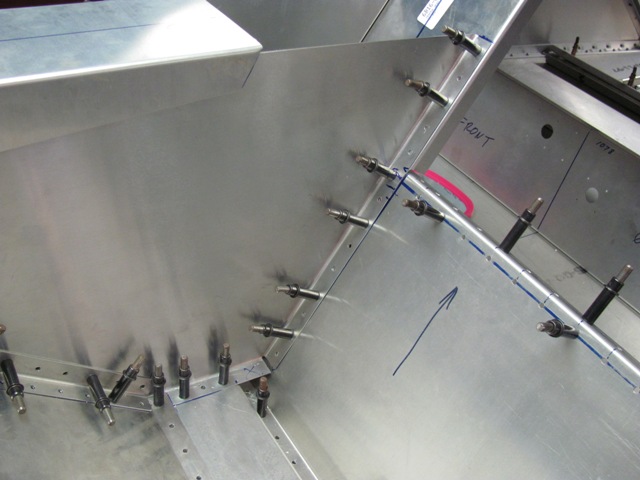

Oct 19, 2011 - Drilled center console to gear channel and seat back support.  Left side shown.
JimSnyder19/IMG_4070.JPG

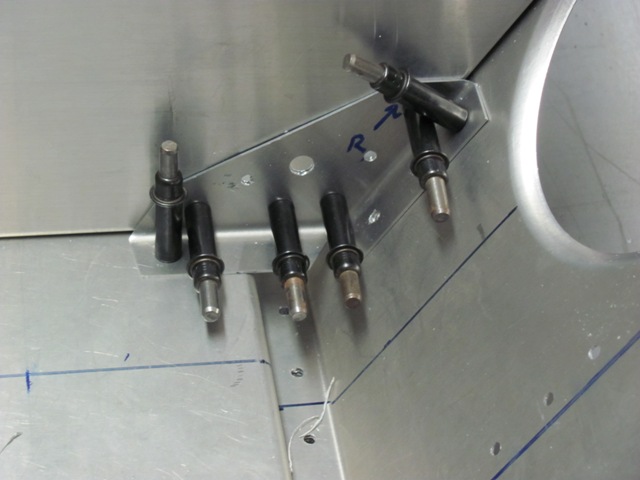

Oct 19, 2011 - Drilled I/B lower seat belt brackets to gear channel, center console, and seat back support.  Belt brackets mount inside center console.
JimSnyder19/IMG_4073.JPG

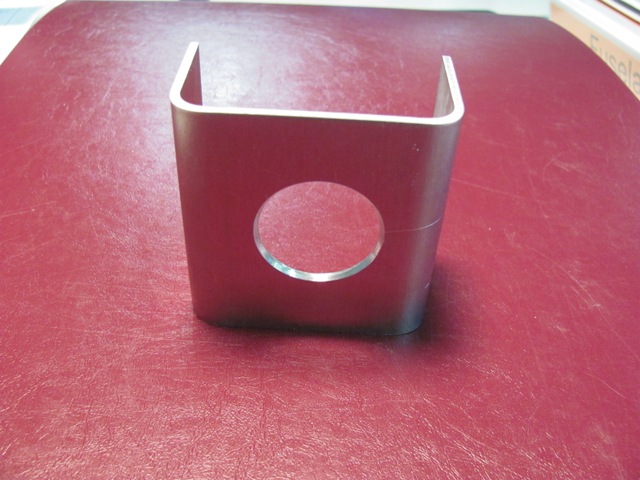

Oct 21, 2011 - Drilled 1-1/8" hole in center of forward Torque Tube bearing.
JimSnyder19/IMG_4074.JPG

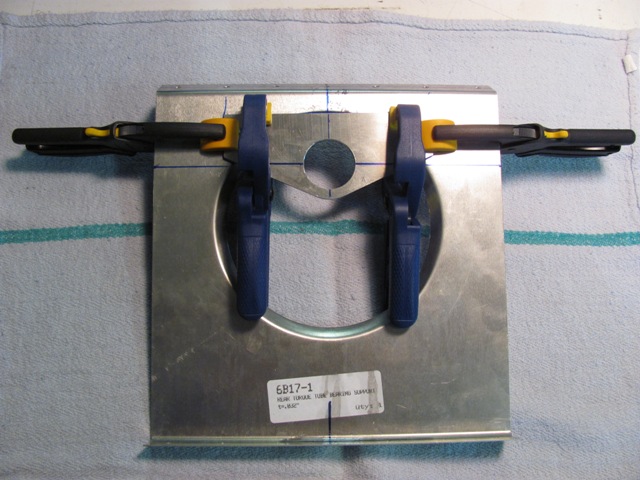

Oct 21, 2011 - Marked & clamped rear Torque Tube bearing to bearing support.
JimSnyder19/IMG_4075.JPG

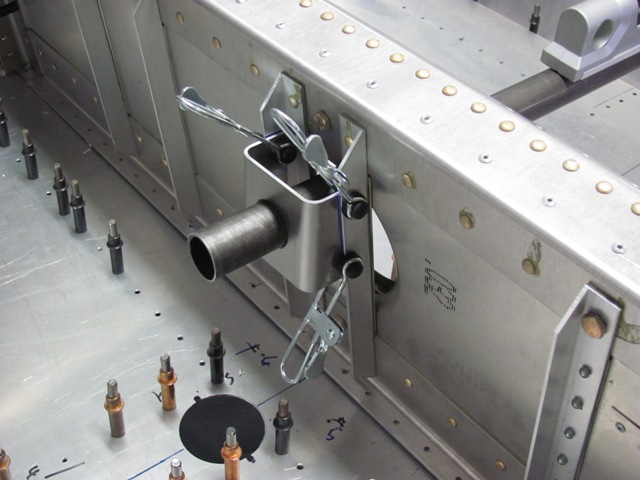

Oct 21, 2011 - Inserted forward Torque Tube Bearing into center spar,  Inserted Torque Tube through both bearings,
JimSnyder19/IMG_4076.JPG

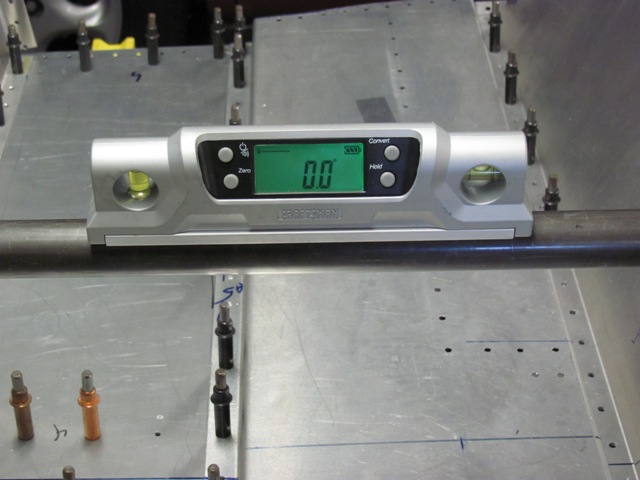

Oct 21, 2011 - Leveled TT and clamped both bearings in place.
JimSnyder19/IMG_4078.JPG

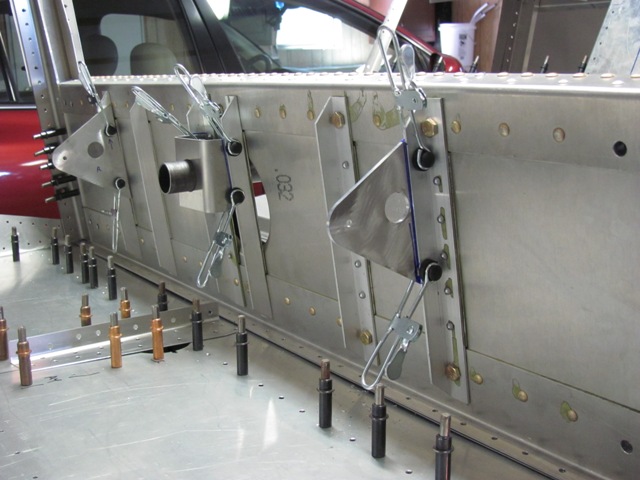

Oct 21, 2011 -  Clamping Control Hinge Plate to center spar.
JimSnyder19/IMG_4079.JPG

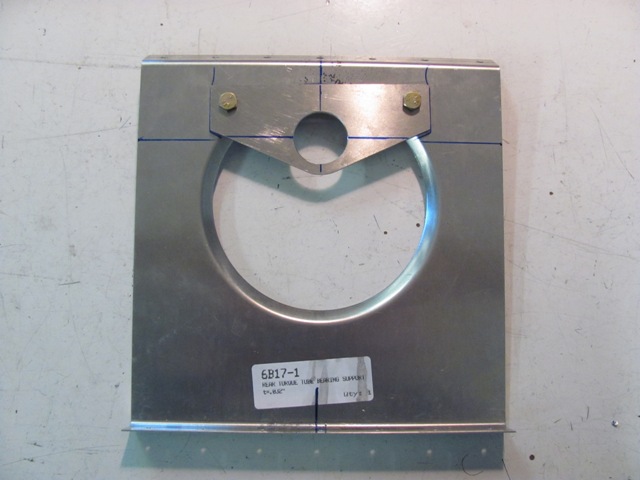

Oct 21, 2011 - Drilled and bolted rear torque tube bearing to bearing support.
JimSnyder19/IMG_4080.JPG

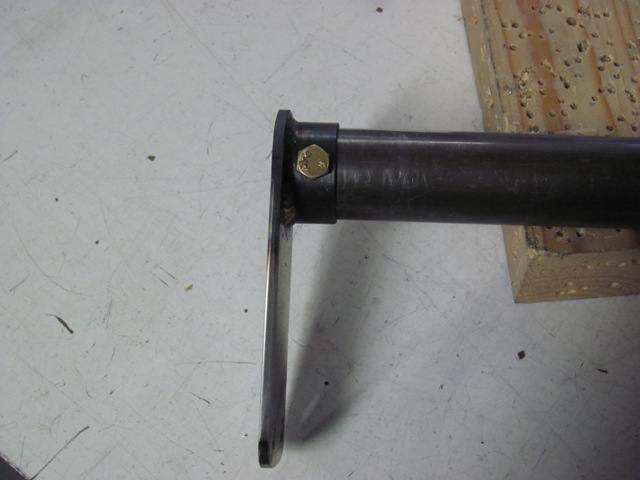

Oct 22, 2011 - Drilled bolt hole in torque tube for front Aileron Control Horn.  This horn will link to the control sticks.
JimSnyder19/IMG_4081.JPG

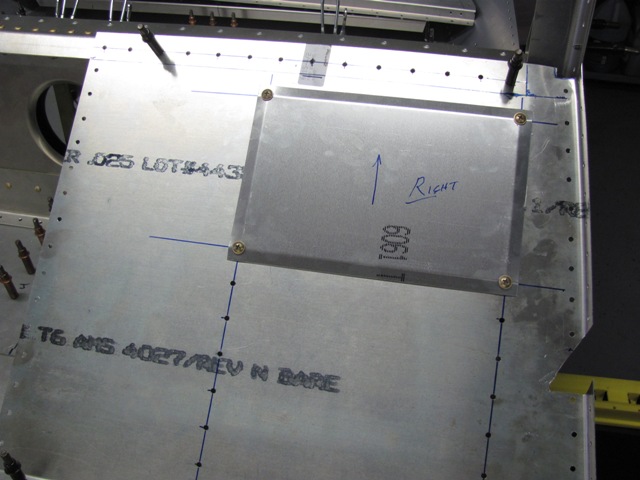

Oct 22, 2011 - Installed nut plates on seat panels for spar access covers.
JimSnyder19/IMG_4086.JPG

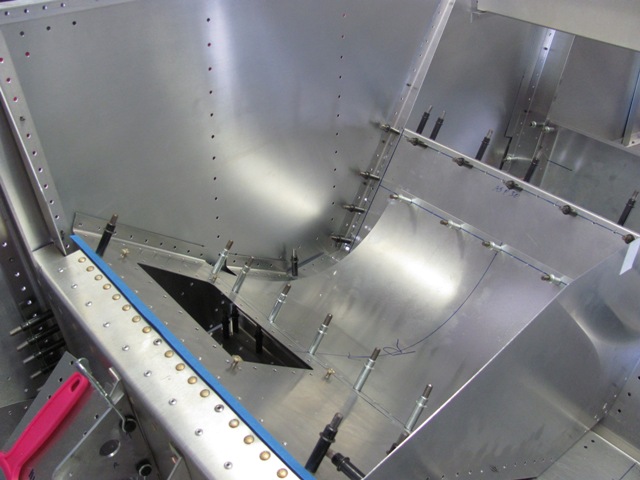

Oct 23, 2011 - Drilled & cleco-ed seat bottoms to front seat panel and seat back supports.
JimSnyder19/IMG_4087.JPG

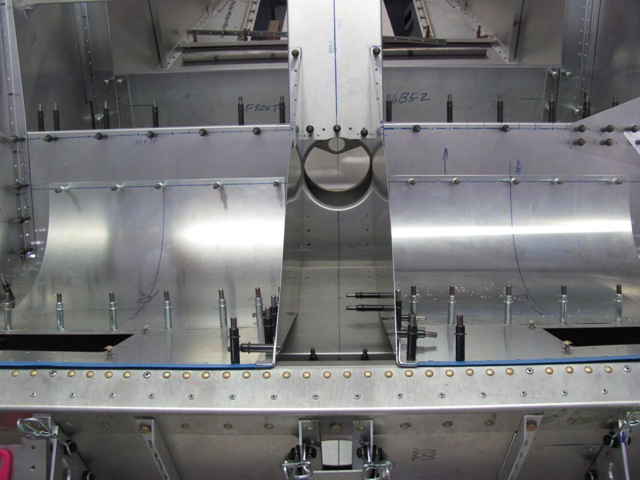

Oct 23, 2011 - View from aircraft front looking back at seating area.
