JimSnyder14/IMG_3605.JPG

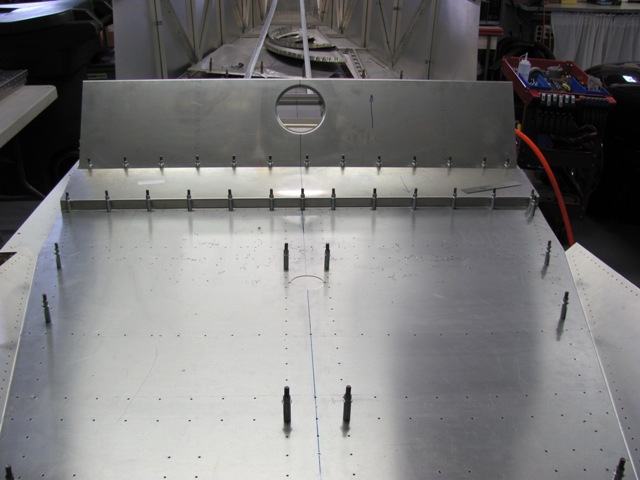

Dec 1, 2010 - Drilled floor pan to front of gear channel.
JimSnyder14/IMG_3606.JPG

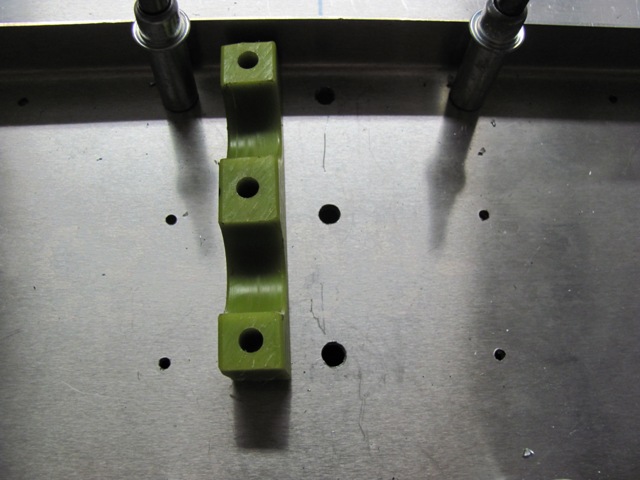

Dec 1, 2010 - Lower center bearing for rudder pedals.  Drilled for AN3 bolts.

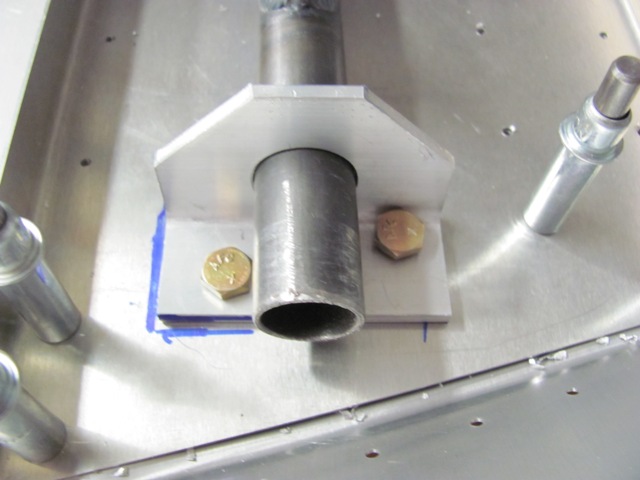

JimSnyder14/IMG_3609.JPG
Dec 1, 2010 - Rudder pedal end bearing
JimSnyder14/IMG_3611.JPG

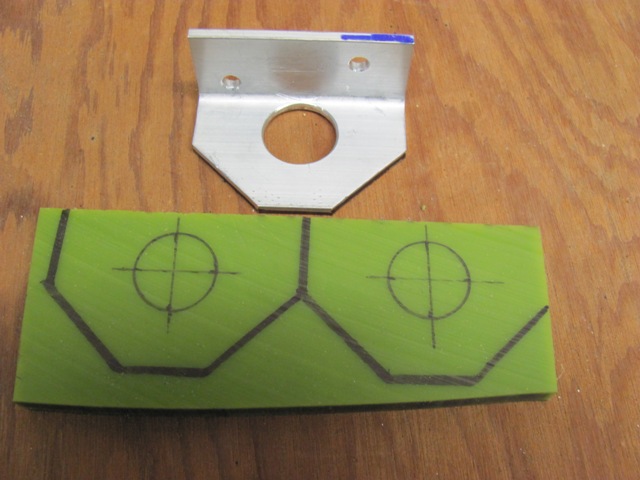

Dec 3, 2010 - Traced end bearings onto nylon bearing material.
JimSnyder14/IMG_3613.JPG

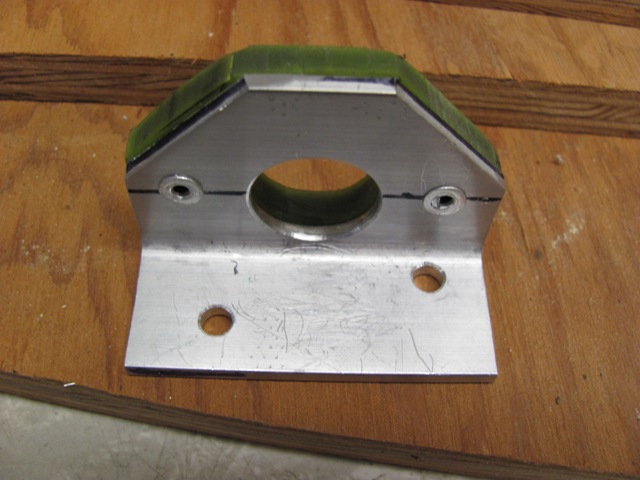

Dec 3, 2010 - Nylon material cut out and riveted to end bearings.

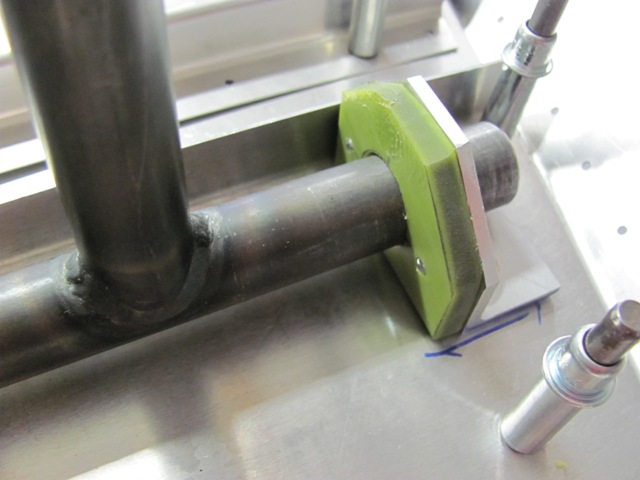

JimSnyder14/IMG_3614.JPG
Dec 3, 2010 - New end bearings in place.  This was not called for in the plans, but should prolong the life of the end bearings and rudder pedal tube.
JimSnyder14/IMG_3615.JPG

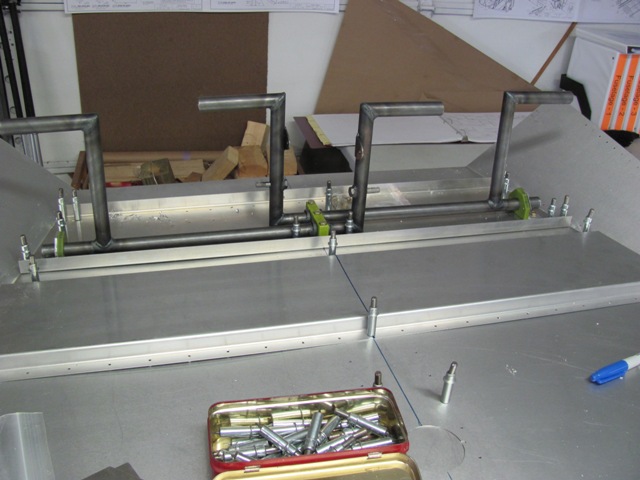

Dec 3, 2010 - Rudder pedals view from seat location.
JimSnyder14/IMG_3639.JPG

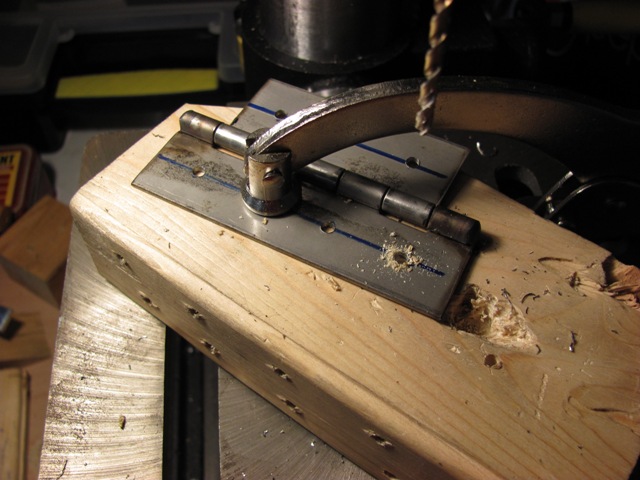

Jan 6, 2011 - Progress slow thru December.  Here, using drill press to drill brake pedal hinges.

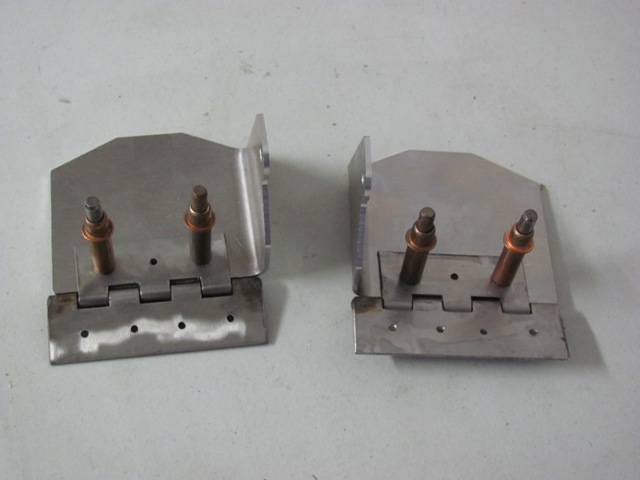

JimSnyder14/IMG_3641.JPG
Jan 6, 2011 - Hinges cleco-ed to brake pedals.

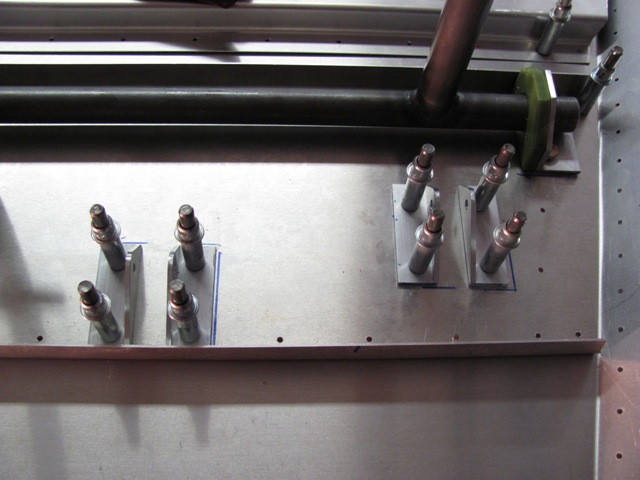

JimSnyder14/IMG_3642.JPG
Jan 7, 2011 - Drilled and mounted brake cylinder bottom support brackets.
JimSnyder14/IMG_3648.JPG

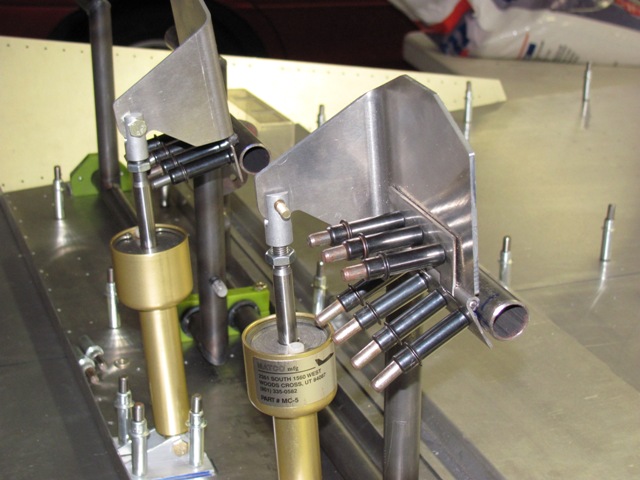

Jan 13, 2011 - Brake pedal assembly mouted to rudder pedals.  Brake cylinders mounted and connected to pedals.
JimSnyder14/IMG_3658.JPG

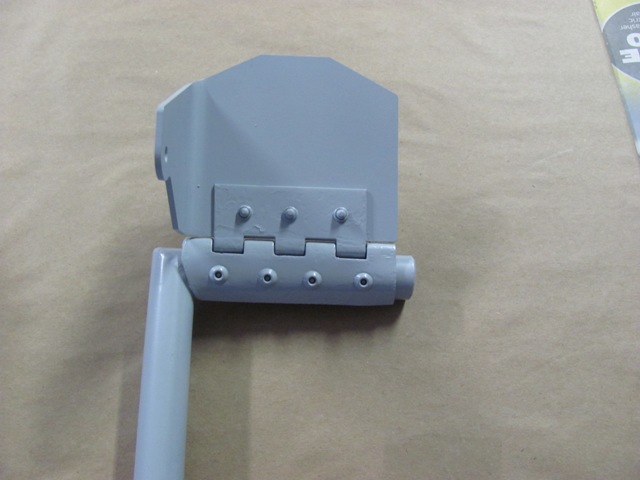

Jan 24, 2011 - Brake pedal hinges riveted, and brake/rudder assembly pime coated.

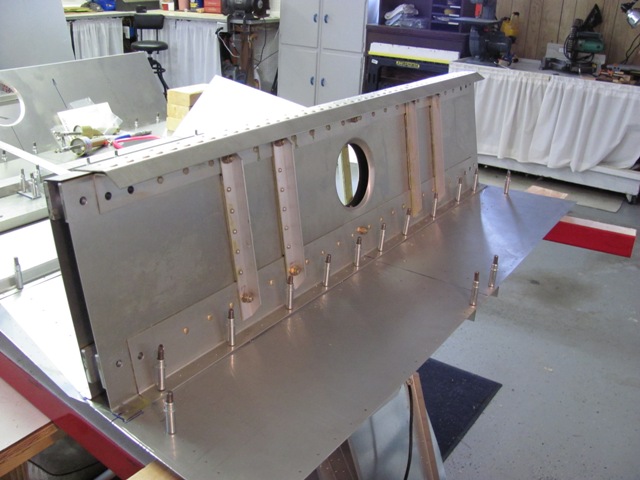

JimSnyder14/IMG_3659.JPG
Jan 25, 2011 - Using existing pilot holes in floor, back drilled into Center Section rear flange (viewed from what will be the pilot seat).
JimSnyder14/IMG_3662.JPG

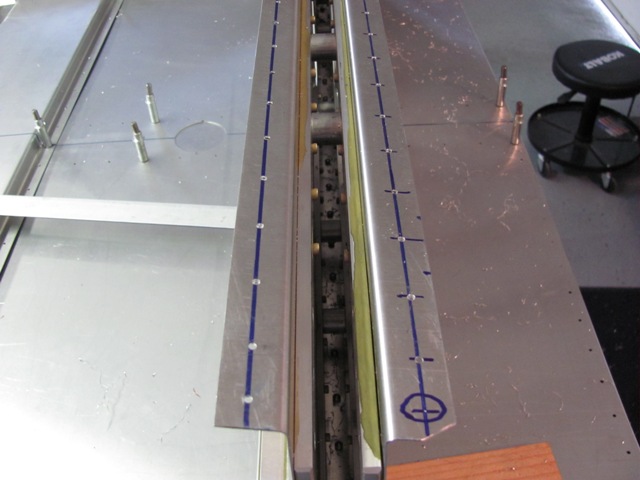

Jan 25, 2011 - Center Section removed, and turned upside down.  Front flange (on right) marked and drilled.
JimSnyder14/IMG_3663.JPG

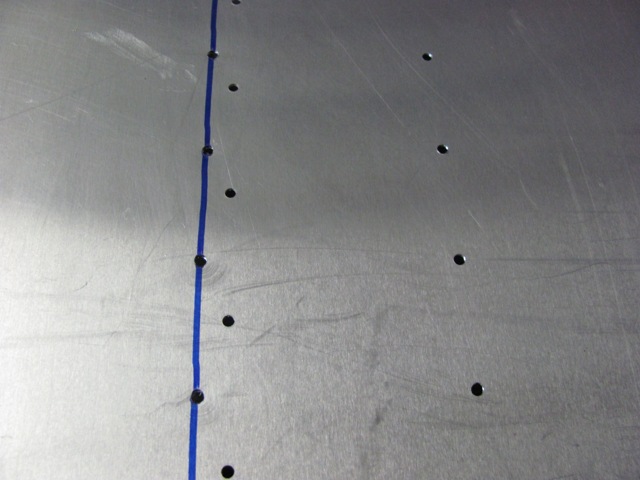

Jan 25, 2011 - Center Section put back in place, then drilled through front flange into floor pan.  Blue line shows NEW rivet line after drilling.  This was necessary due to additional thicknees of Center Section as result of wing spar upgrade.

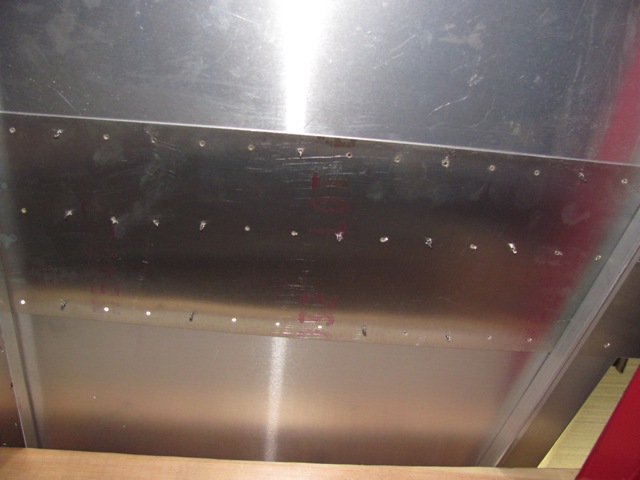

JimSnyder14/IMG_3668.JPG
Jan 26, 2011 - Part of the wing spar upgrade is the addition of a Bottom Skin Doubler under the floor skin beneath the Center Section.
JimSnyder14/IMG_3669.JPG

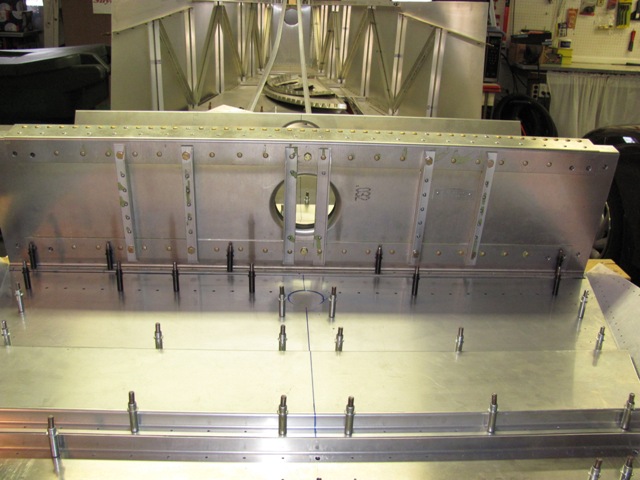

Jan 26, 2011 - The Center Section replaced, then rivet holes enlarged to A5 size.  View from firewall side.

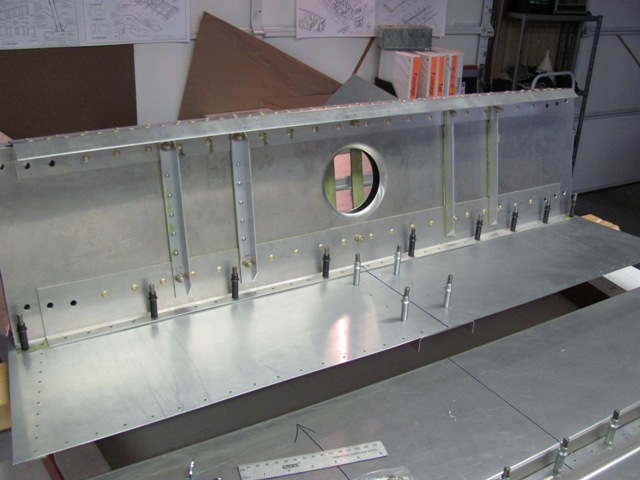

JimSnyder14/IMG_3670.JPG
Jan 26, 2011 - View of Center Section from cockpit side.
JimSnyder14/IMG_3671.JPG

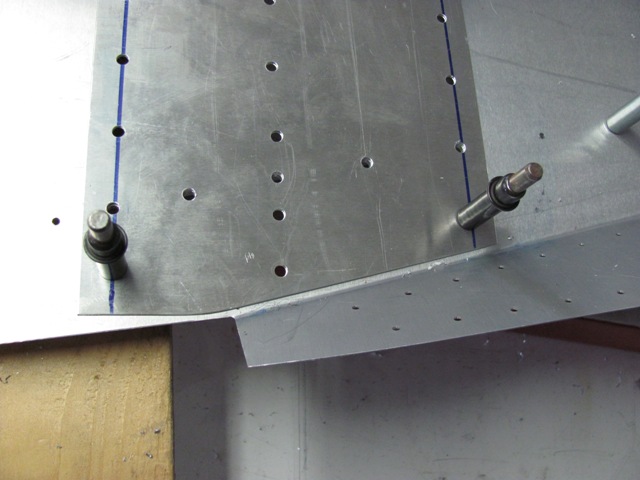

Jan 28, 2011 - Trimmed ends of Bottom Skin Doubler to match floor.
JimSnyder14/IMG_3672.JPG

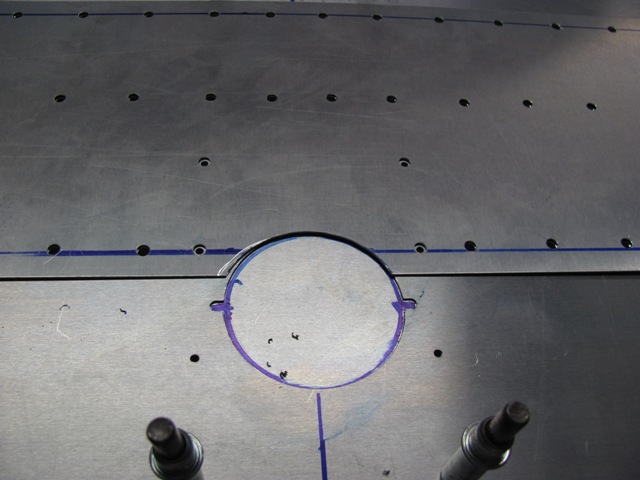

Jan 28, 2011 - Made cutout in Bottom Skin Doubler for gasolator.
JimSnyder14/IMG_3674.JPG

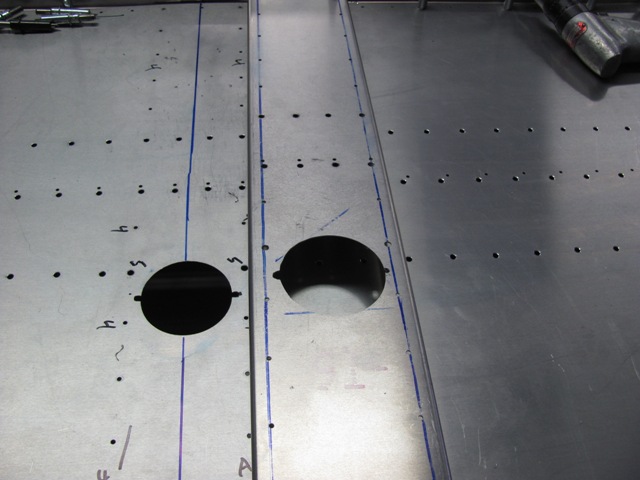

Jan 28, 2011 - Cut hole in bottom support channel for gasolator.
JimSnyder14/IMG_3675.JPG

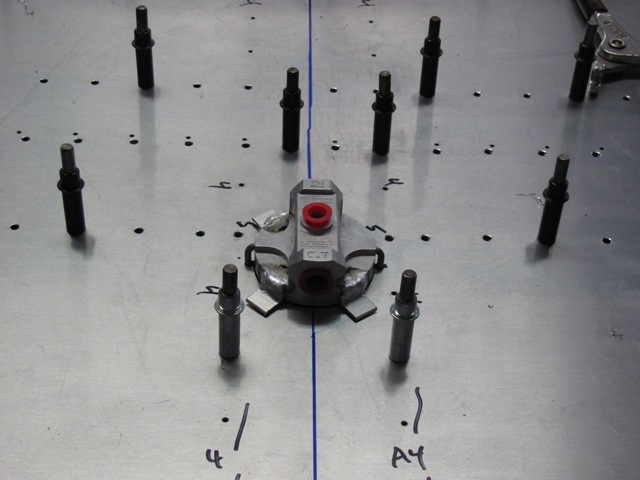

Jan 28, 2011 - Test fit gasolator.
JimSnyder14/IMG_3676.JPG

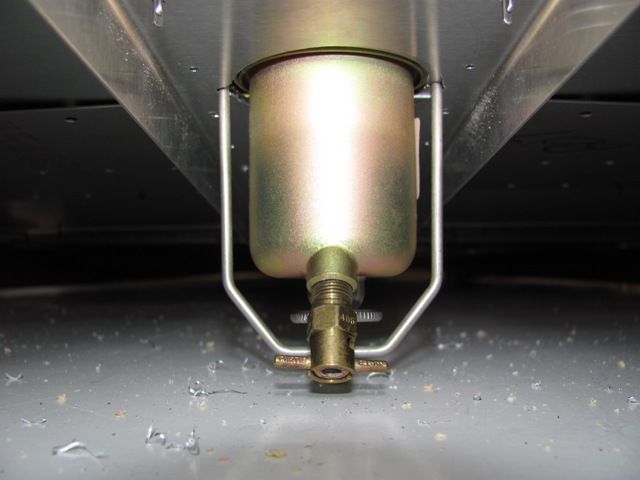

Jan 28, 2011 - Gasolator viewed from bottom.
