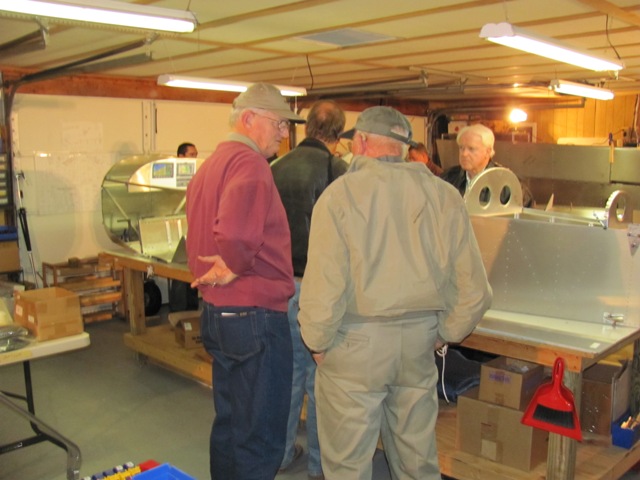

Nov 3, 2010 - Members of my local EAA Chapter 1311 visited to review my project.  John Saalwaechter & Jim Winings (foreground).  Mike Mossman & Doug Moncreiff (background).
JimSnyder13/IMG_3565.JPG

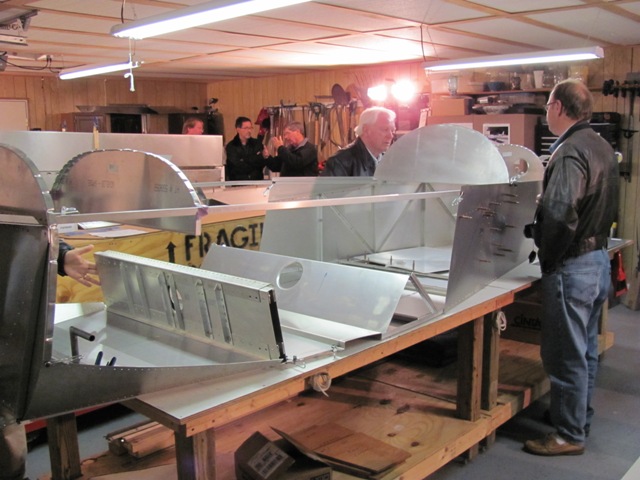

Nov 3, 2010 -  Doug Moncreiff & Mike Mossman.
JimSnyder13/IMG_3566.JPG
Nov 3, 2010 -  Mike Mossman, Jim Winings and John Saalwaechter.
JimSnyder13/IMG_3567.JPG

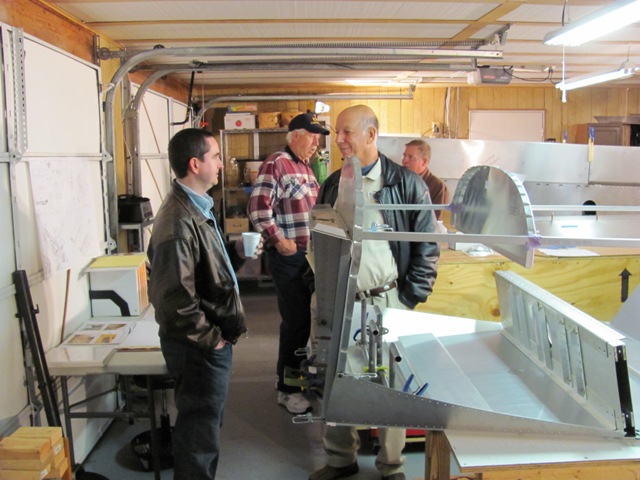

Nov 3, 2010 -  Jim Buist & Vern Sullenger (foreground).  Steve Weathers & John Broyles (background).
JimSnyder13/IMG_3568.JPG

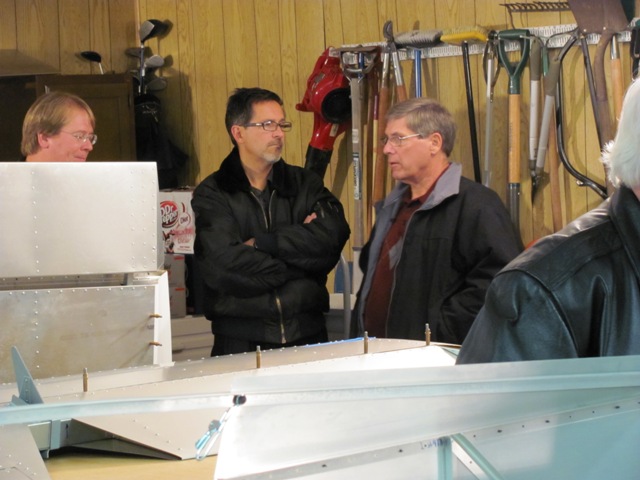

Nov 3, 2010 - David Stucker, Chuck Long, Gary Reynolds.
JimSnyder13/IMG_3573.JPG

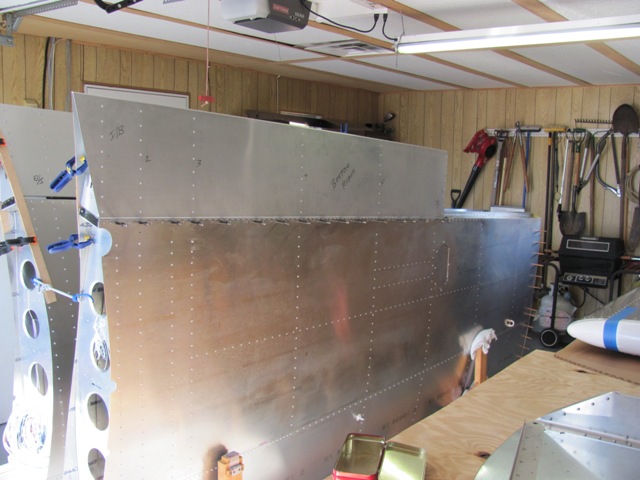

Nov 12, 2010 - Wings in cradle in grarage.  Removing ailerons and flaps before transporting to hanger.
JimSnyder13/IMG_3575.JPG

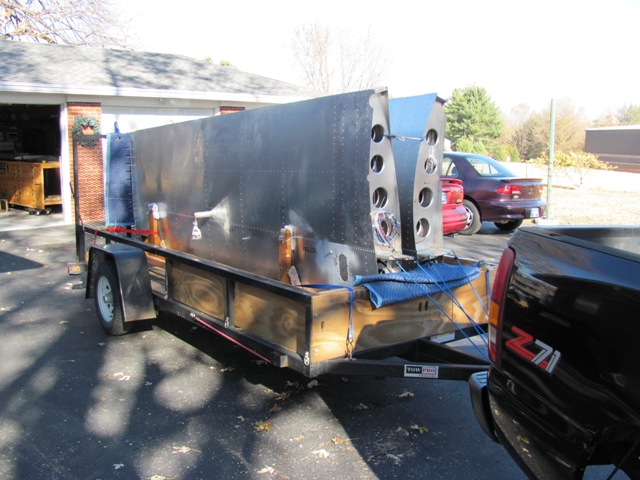

Nov 12, 2010 - Wings in cradle loaded in my son's trailer for towing to hanger.
JimSnyder13/IMG_3577.JPG

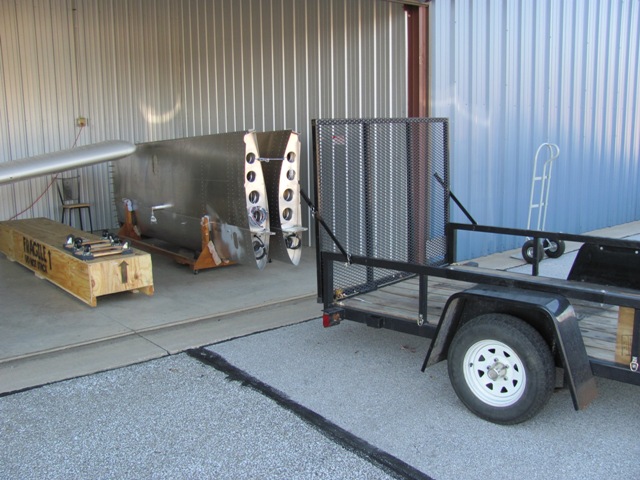

Nov 12, 2010 - Wings made it to hanger unscathed.
JimSnyder13/IMG_3578.JPG

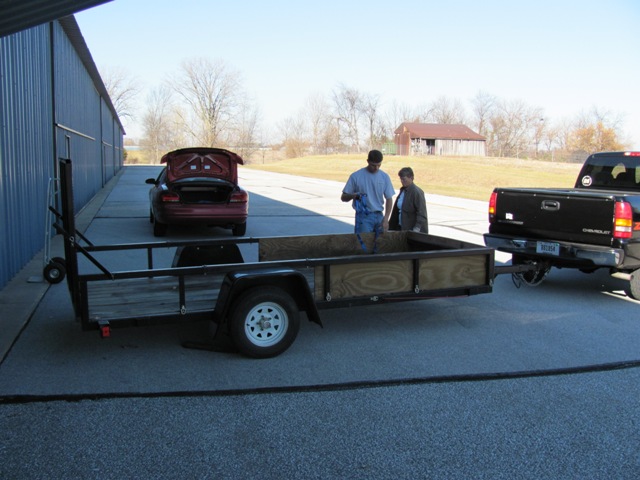

Nov 12, 2010 - My son, Jason, and wife, Suzanne, helping with the wing move.
JimSnyder13/IMG_3582.JPG

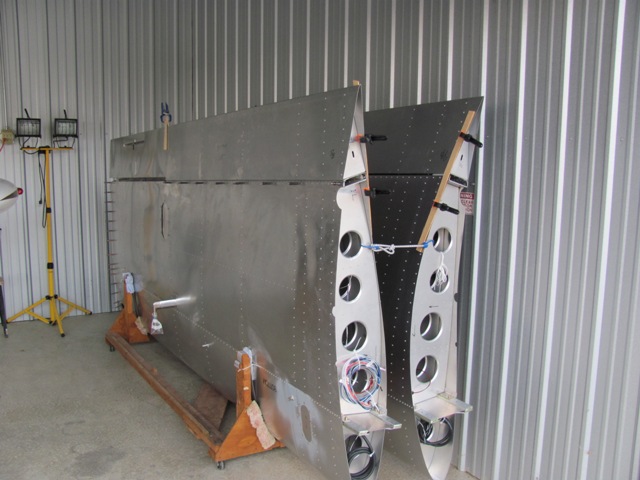

Nov 13, 2010 - Moved flaps, ailerons, horizontal stab, elevator, & rudder to hanger for storage.  Here ailerons and flaps cleco-ed back in place.  Wings tucked away in hanger awaiting assembly to fuselage next year.
JimSnyder13/IMG_3584.JPG

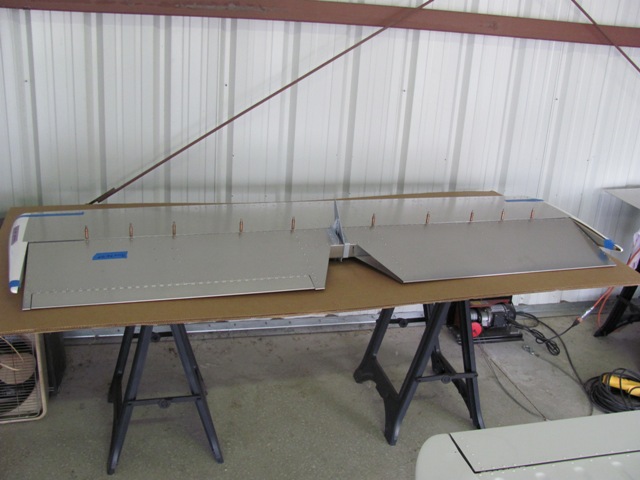

Nov 13, 2010 - Horizontal Stabilzer and Elevator.
JimSnyder13/IMG_3586.JPG

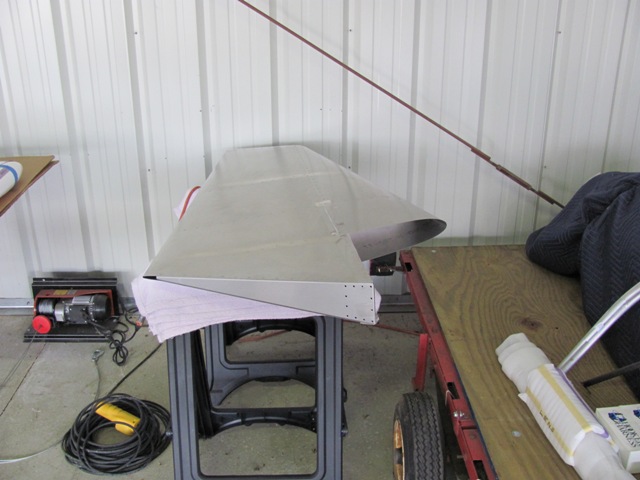

Nov 13, 2010 - Rudder.
JimSnyder13/IMG_3588.JPG

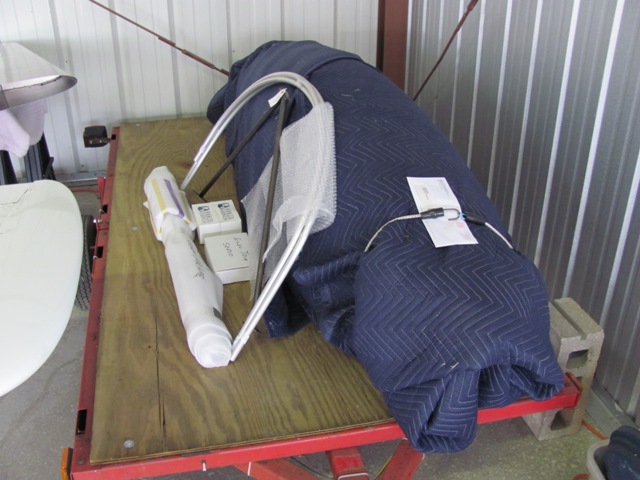

Nov 13, 2010 - Canopy (under padding) and canopy frame.
JimSnyder13/IMG_3589.JPG

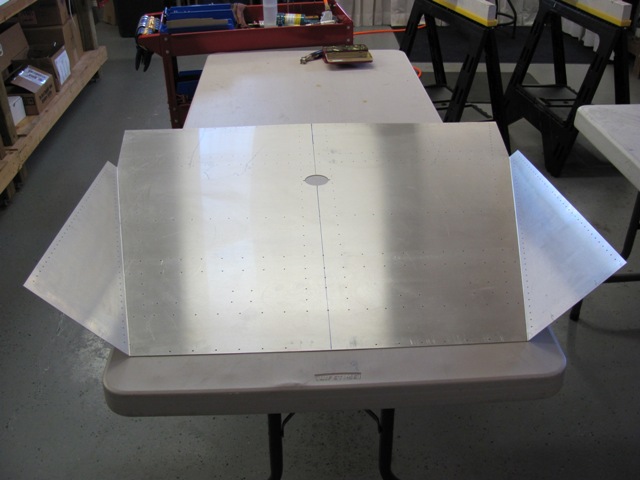

Nov 14, 2010 - Starting work on the Cabin Floor Pan.
JimSnyder13/IMG_3590.JPG

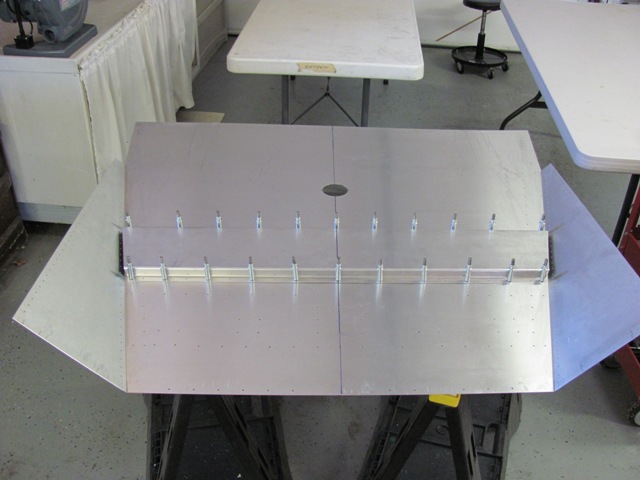

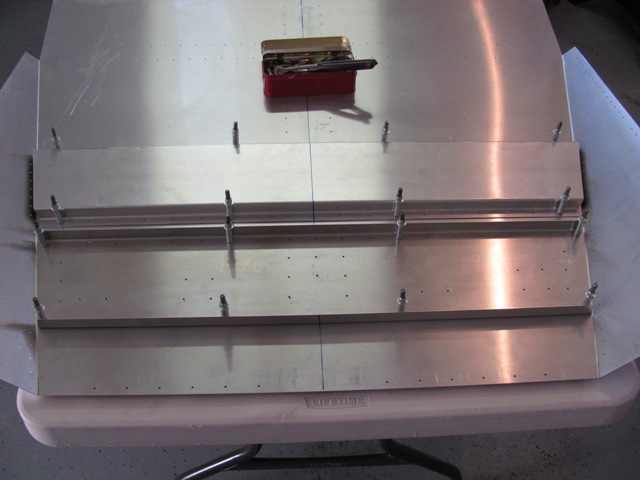

Nov 14, 2010 - Drilled 6B8-8 Heel Support to the floor pan.
JimSnyder13/IMG_3591.JPG
Nov 14, 2010 - Drilled 6B8-3 Rudder Bearing Channel to the floor pan.
JimSnyder13/IMG_3592.JPG

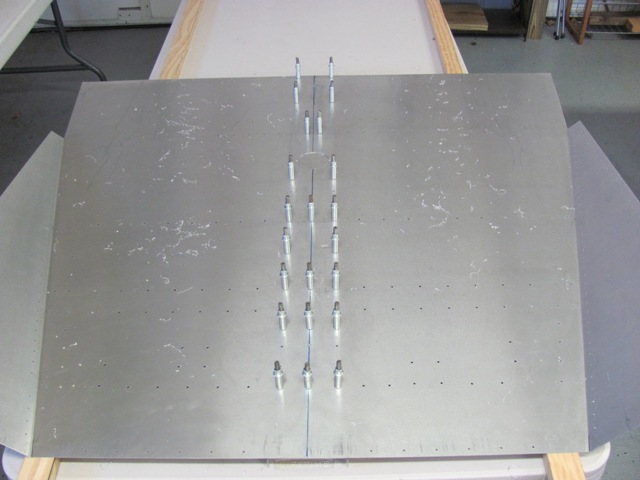

Nov 14, 2010 - Drilled 6B10-2 bottom Support Channel to the floor pan.
JimSnyder13/IMG_3597.JPG

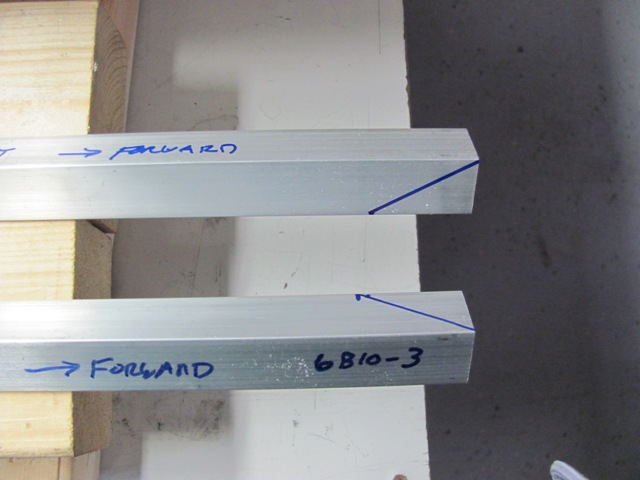

Nov 23, 2010 - Front bottom longerons.  Both ends of each need to be trimmed at 30 degrees.
JimSnyder13/IMG_3598.JPG

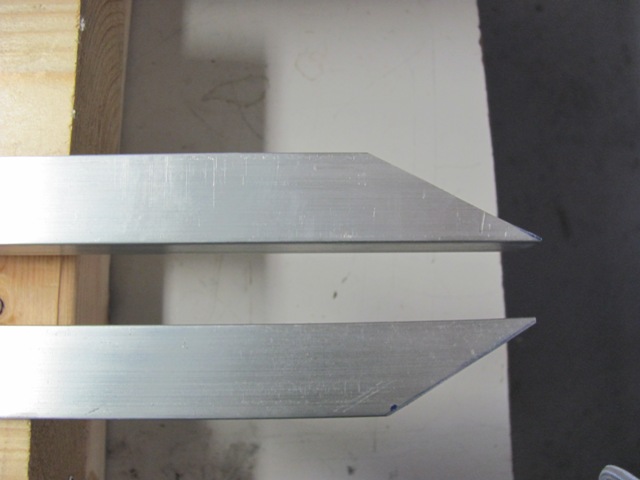

Nov 23, 2010 - Front bottom longerons cut and ready for installation.
JimSnyder13/IMG_3599.JPG

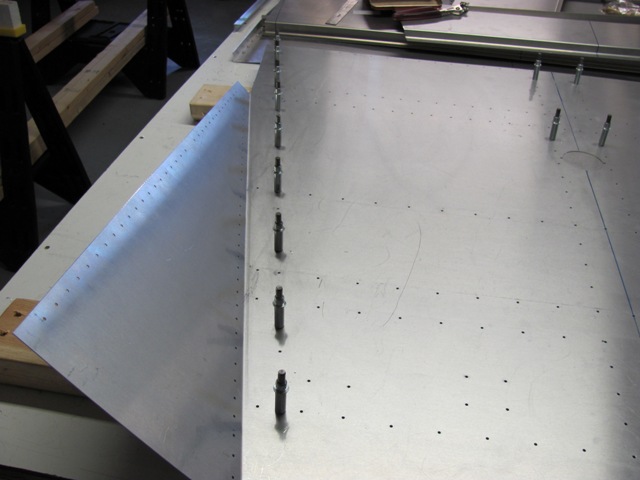

Nov 23, 2010 - front bottom longerons drilled and cleco-ed to floor pan.
JimSnyder13/IMG_3600.JPG

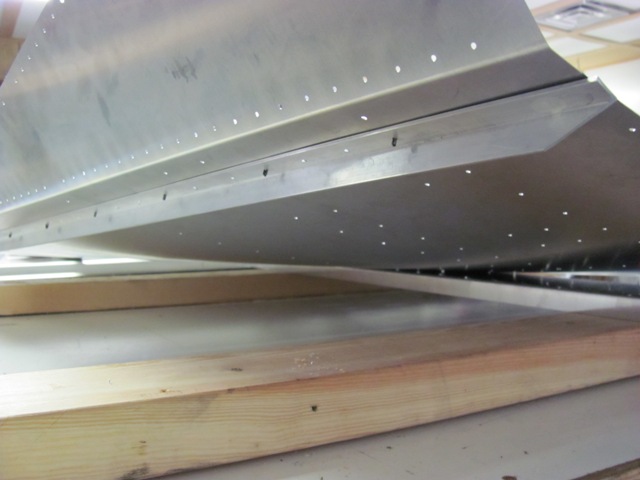

Nov 23, 2010 - Bottom view of from longerons cleco-ed to bottom of floor pan.
JimSnyder13/IMG_3601.JPG

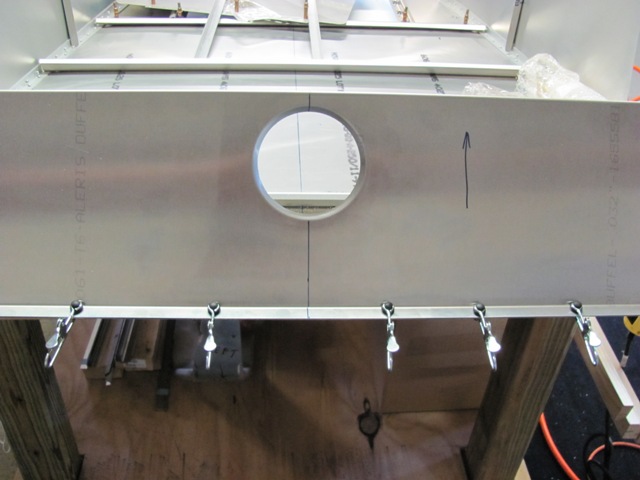

Nov 23, 2010 - Rear seat panel ready to drill to rear fuselage.  Must be drilled from bottom side.
JimSnyder13/IMG_3604.JPG

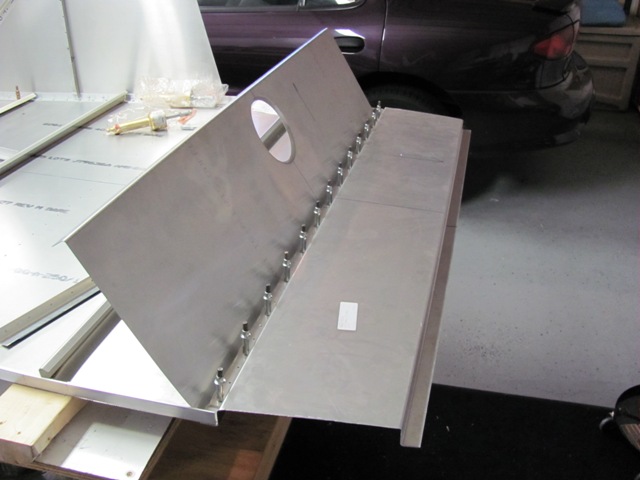

Nov 23, 2010 - Rear Seat Panel and main Gear Channel cleco-ed to rear fuselage bottom.
