JimSnyder8/IMG_2927.jpg

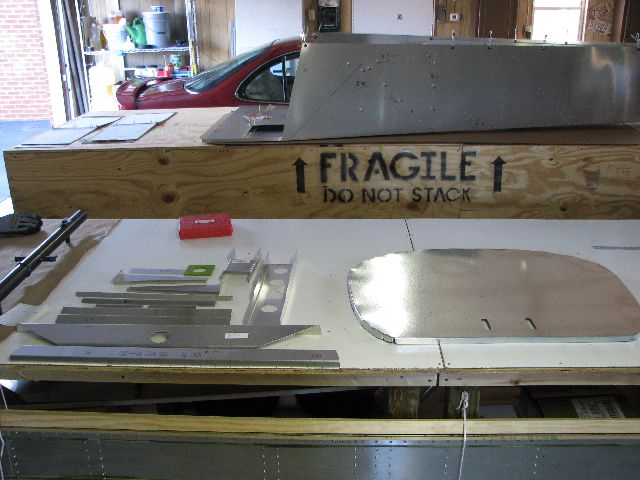

Mar 19, 2010 - Firewall plate and componets..
JimSnyder8/IMG_2939.jpg

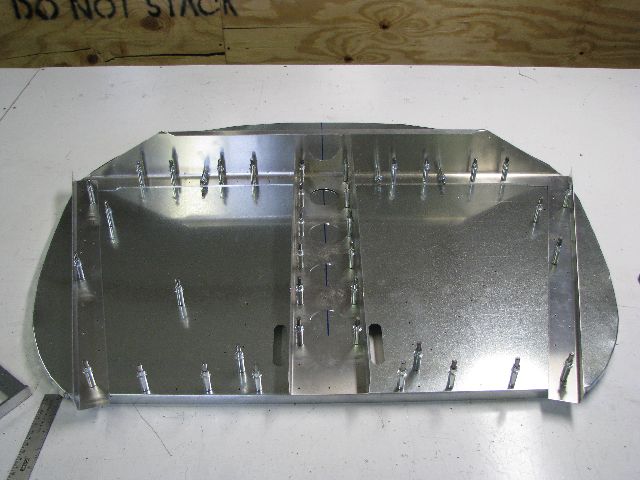

Mar 19, 2010 - Added top, center, and side stiffeners.  The two slots are for the steerable nose wheel control rods.
JimSnyder8/IMG_2942.jpg

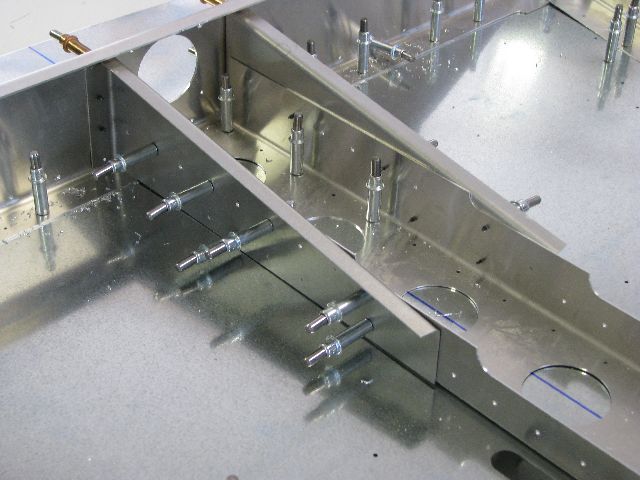

Mar 20, 2010 - Added gear gussets to sides of center firewall support.
JimSnyder8/IMG_2945.jpg

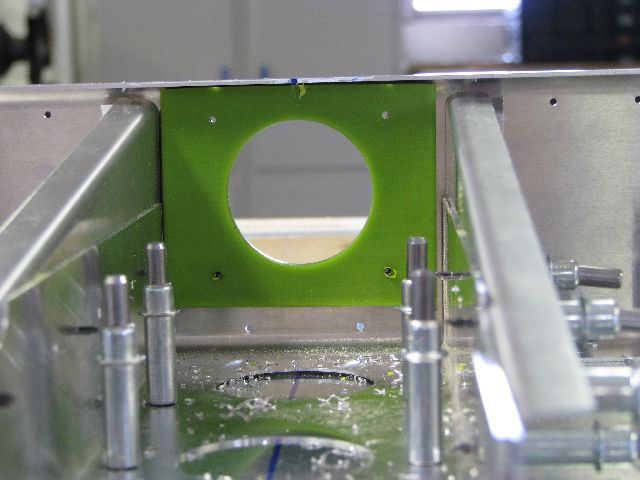

Mar 20, 2010 - Nylon bearing material added to top firewall stiffener.  This will be the top bearing for the nose wheel strut.
JimSnyder8/IMG_2946.jpg

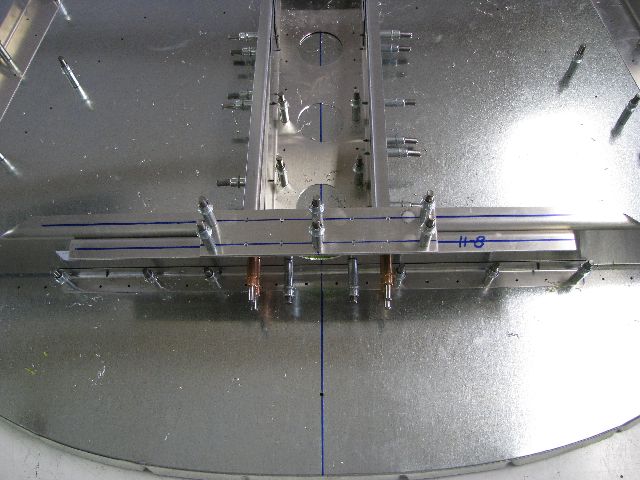

Mar 20, 2010 - More support added to top firewall stiffener.
JimSnyder8/IMG_2950.jpg

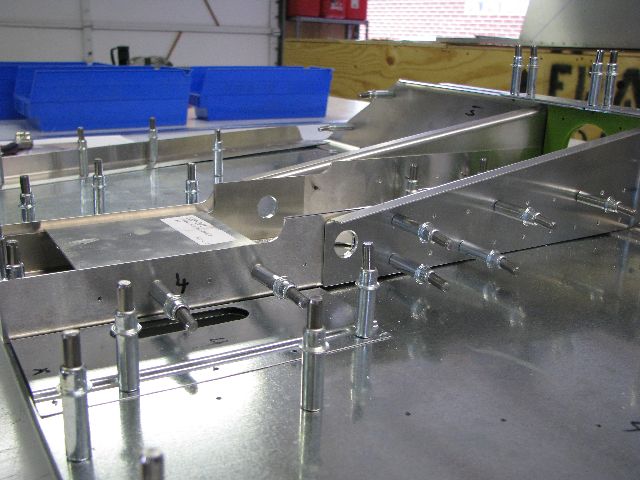

Mar 20, 2010 - 5/8" holes created for the nose wheel strut bungee pin.  Added center stiffener doubler, and nose wheel steering rod cover plates added.
JimSnyder8/IMG_2955.jpg

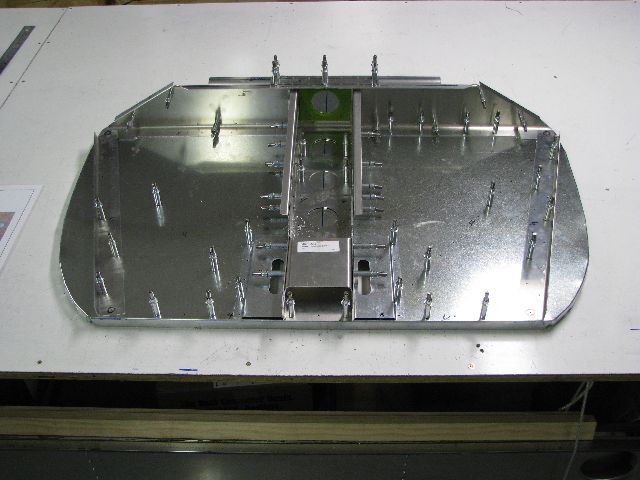

Mar 20, 2010 - All assembled.  Nexxt, disassemble and deburr all componets prior to riveting.
JimSnyder8/IMG_2958.jpg

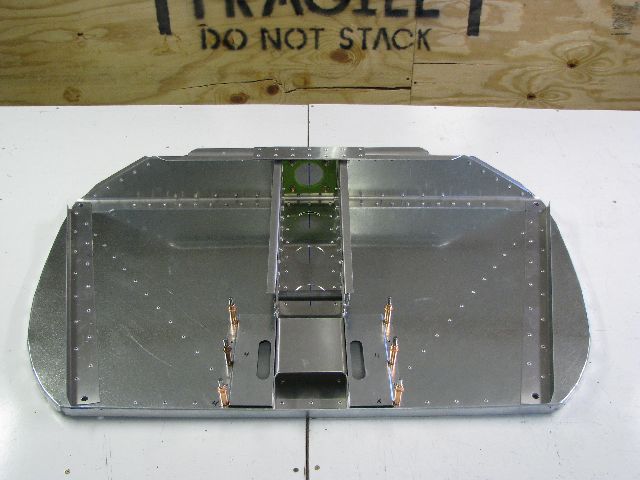

Mar 23, 2010 - Front (engine side) of firewall, all riveted except for nose wheel steering rod cover plates.
JimSnyder8/IMG_2959.jpg

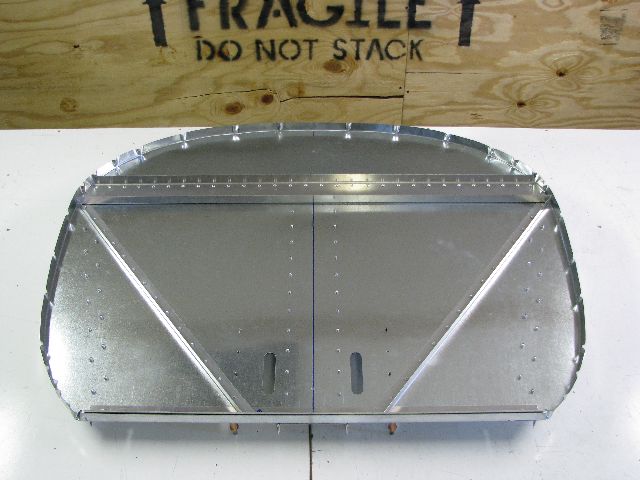

Mar 23, 2010 - Rear side of riveted firewall.
JimSnyder8/IMG_2960.jpg

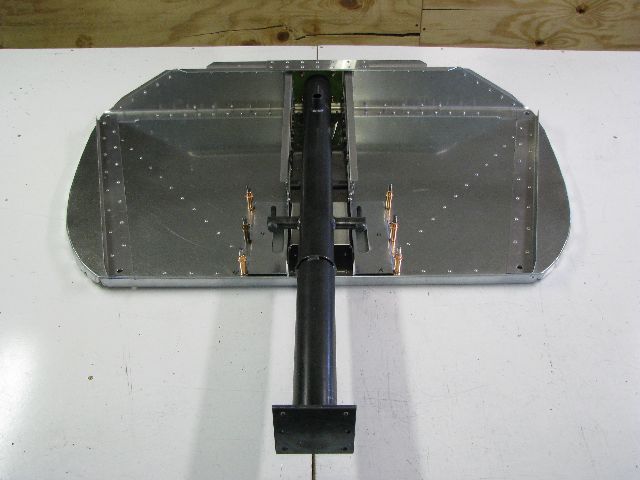

Mar 23, 2010 - Approximate location of nose wheel strut when assembled later.
JimSnyder8/IMG_2961.jpg

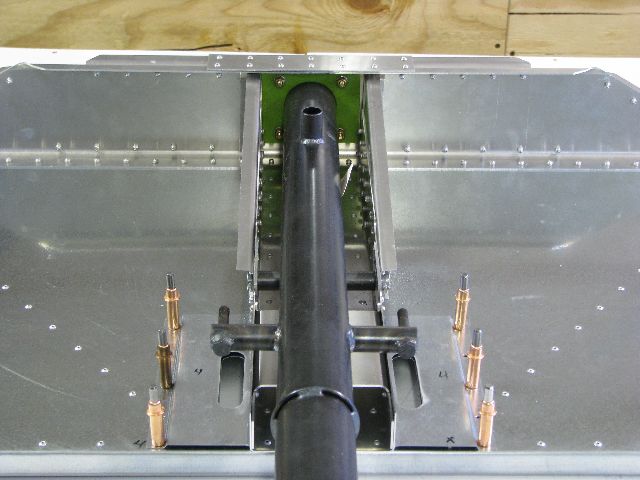

Mar 23, 2010 - Closer view showing strut in upper bearing.
JimSnyder8/IMG_2962.jpg

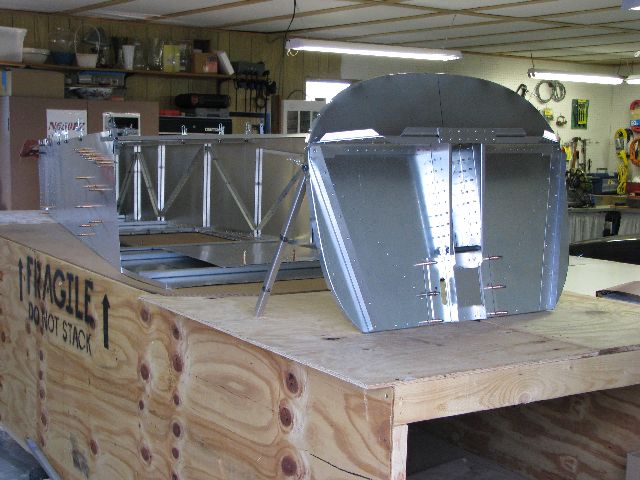

Mar 23, 2010 - Rear fuselage and firewall.  A lot more work left to do.  Can't proceed any further until receiving new wing modifcation kit.
