JimSnyder17/IMG_3943.JPG

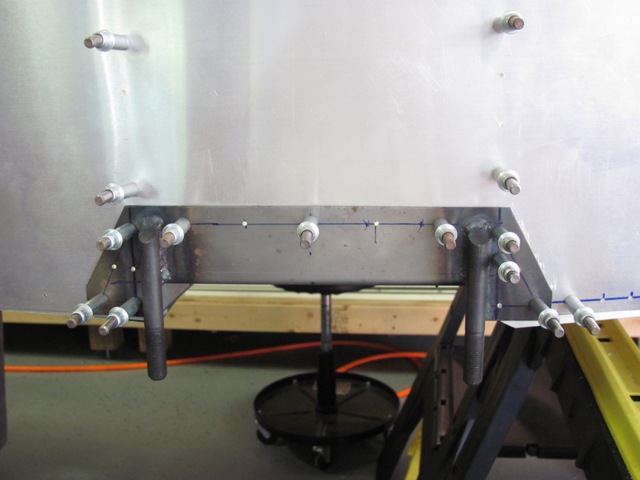

Aug 9, 2011 - Drilling the main gear bracket to gear uprights, longerons, and skins.  The bracket will be attached with combination of bolts & rivets.
JimSnyder17/IMG_3947.JPG

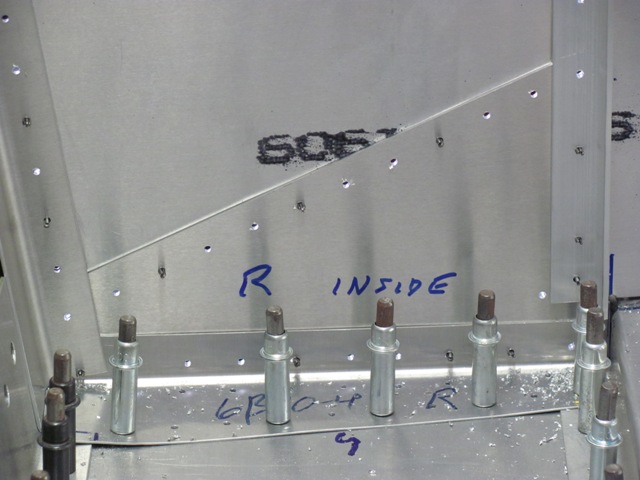

Aug 9, 2011 - A new .063" reinforcing plate added as part of the upgrade package provides substantial reinforcement to this area.  Also shown is gusset tying bottom skin to side skin.
JimSnyder17/IMG_3955.JPG

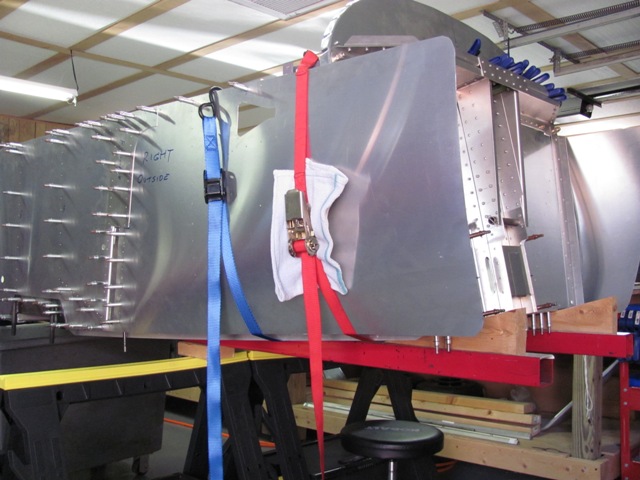

Aug 12, 2011 - Used ratchet straps to bend side skins around front of fuselage and firewall.
JimSnyder17/IMG_3958.JPG

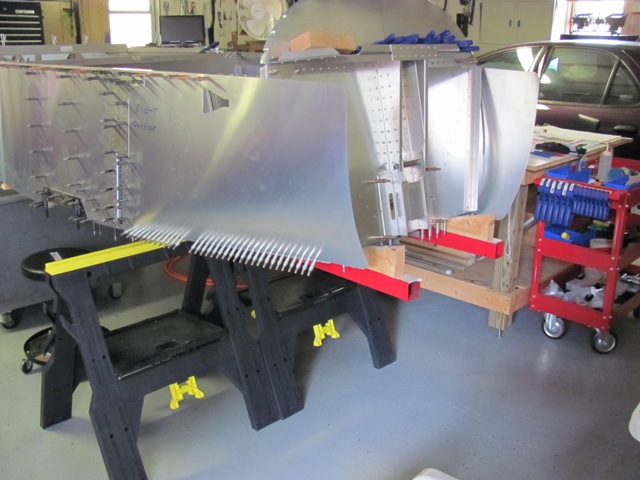

Aug 12, 2011 - Drilled and cleco-ed bottom of front side skin to floor pan.
JimSnyder17/IMG_3961.JPG

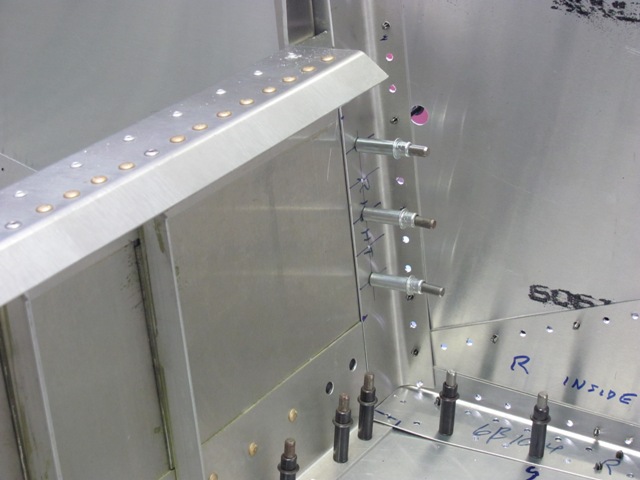

Aug 12, 2011 - Drilled five rivet locations in each center spar upright into center spar web.  These rivets are part of the wing upgrade plan.
JimSnyder17/IMG_3963.JPG

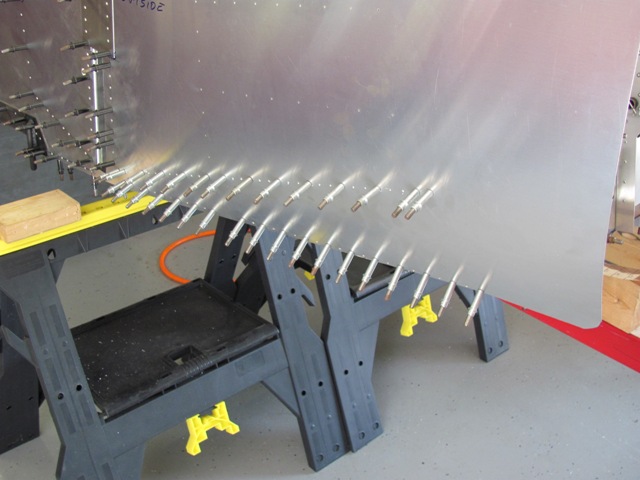

Aug 13, 2011 - Drilled front side skin to top edge of floor pan (top row of clecos).
JimSnyder17/IMG_3964.JPG

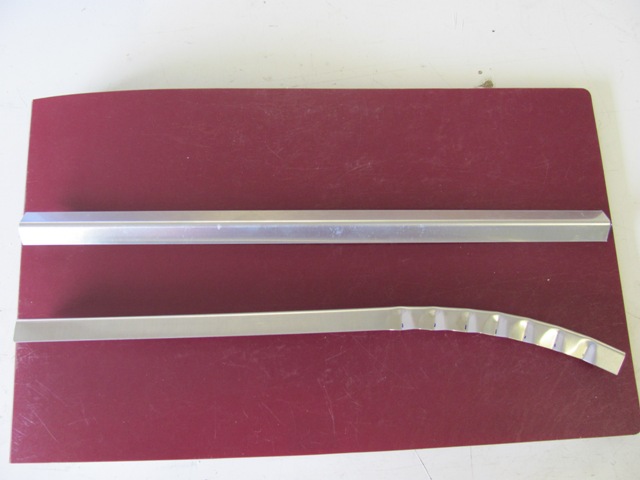

Aug 13, 2011 - Used fluting tool to bend L-angle to fit inside of front fuselage skin.
JimSnyder17/IMG_3966.JPG

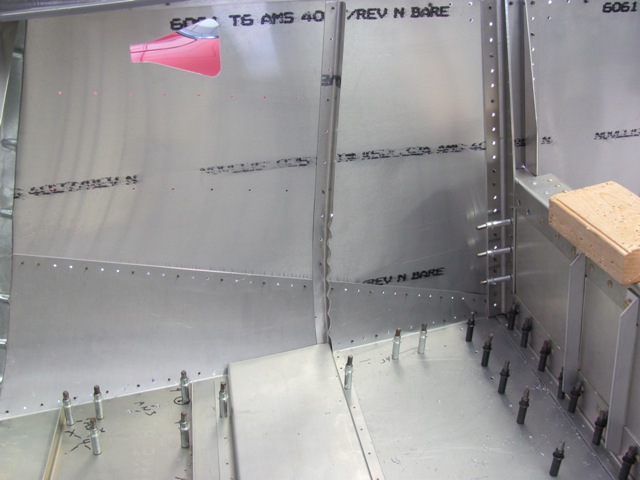

Aug 13, 2011 - Fluted L-angle installed in front of center spar.
JimSnyder17/IMG_3970.JPG

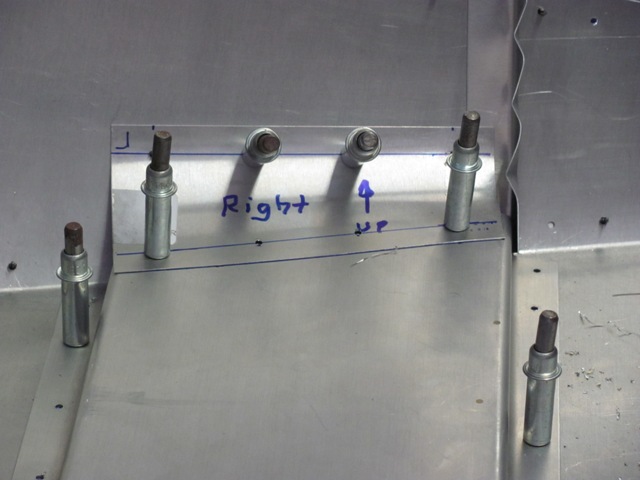

Aug 13, 2011 - Gusset installed tying end of heel support to side skin.
JimSnyder17/IMG_3972.JPG

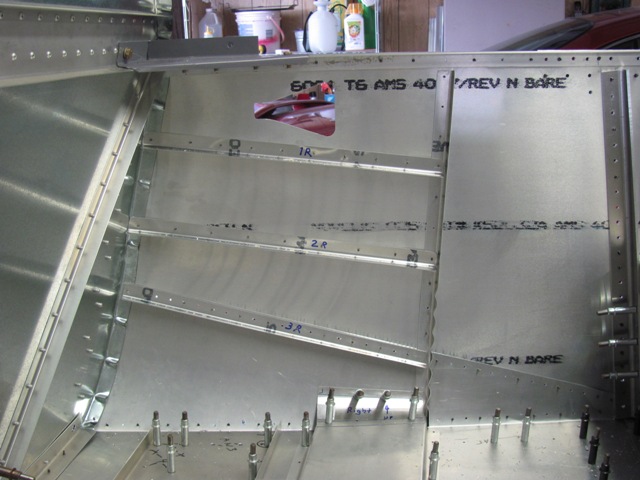

Aug 14, 2011 -Installed horizontal L-angles on forward side skins.
JimSnyder17/IMG_3974.JPG

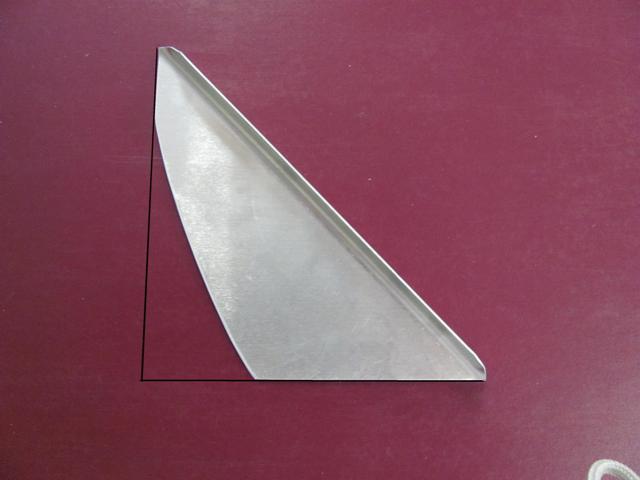

Aug 14, 2011 -Triangle gusset trimmed to fit curvature of forward side skins at the heel support.  Black line indicates where material was trimmed away.
JimSnyder17/IMG_3976.JPG

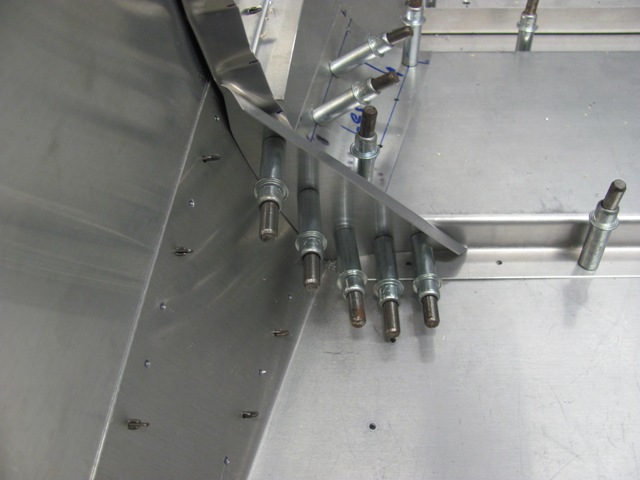

Aug 14, 2011 - Trimmed gusset drilled to heel support and curved vertical L-angle.
JimSnyder17/IMG_3978.JPG

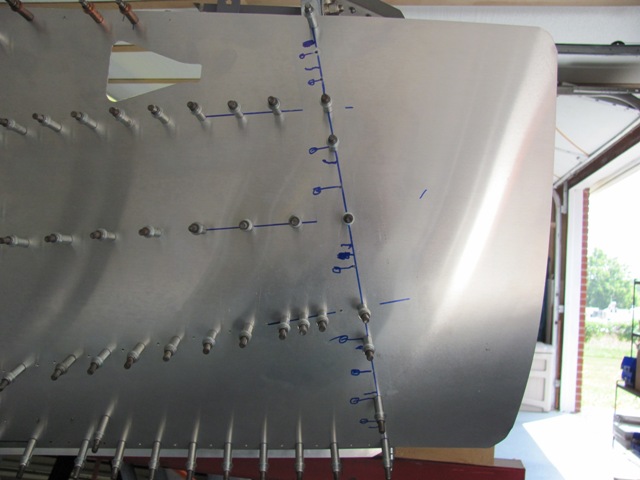

Aug 15, 2011 - Locating rivet line in side skin for the firewall.  Trick was trying to avoid the flutes in the firewall.
JimSnyder17/IMG_3981.JPG

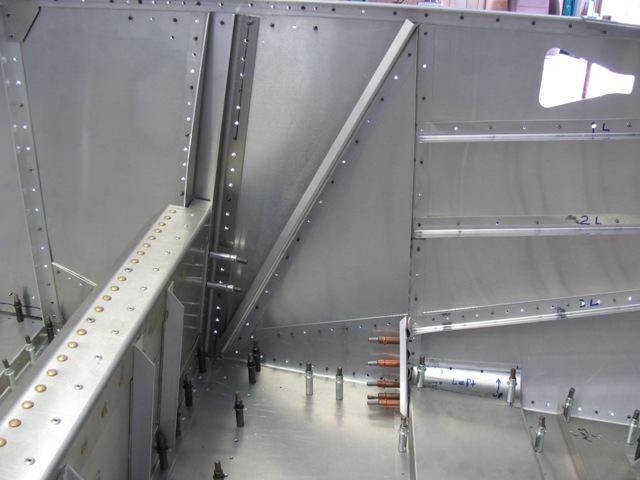

Aug 15, 2011 - Z-angle installed in left side forward skin.  These Z-angles are part of the upgrade kit.
JimSnyder17/IMG_3988.JPG

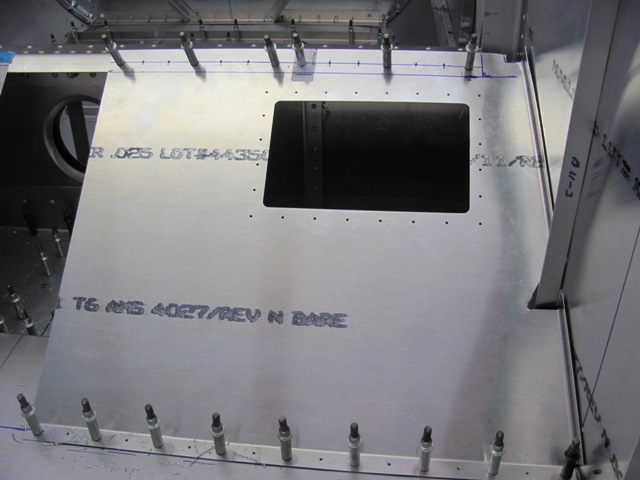

Aug 22, 2011 - Installing Front Seat Panel.  Top drilled to top lip of center spar, and botton drilled to center of main gear channel.
JimSnyder17/IMG_3993.JPG

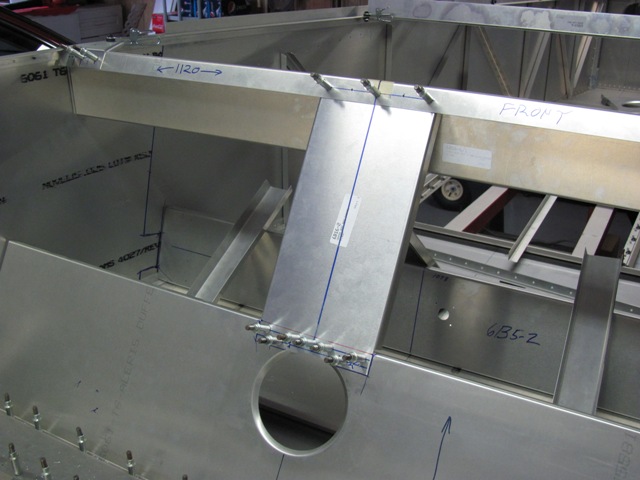

Aug 23, 2011 - Trimmed and drilled Center Seat Back Support to the Rear Seat Panel and Top Seat Channel.
JimSnyder17/IMG_4015.JPG

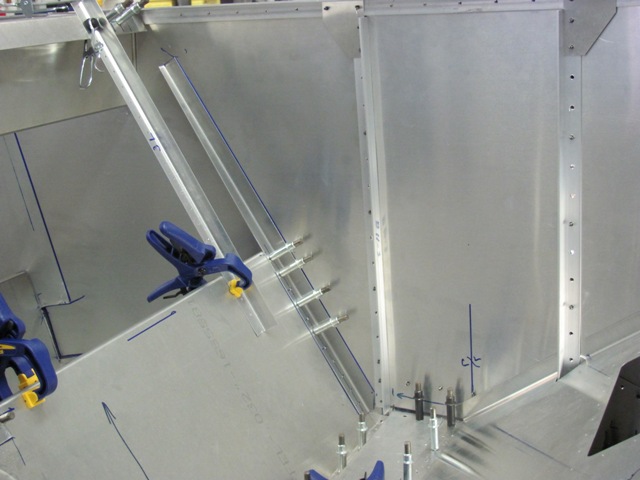

Aug 30, 2011 - Installing Seat Back Side Angles.  These lock the lower seat back to the side skin, and add more support.
JimSnyder17/IMG_4018.JPG

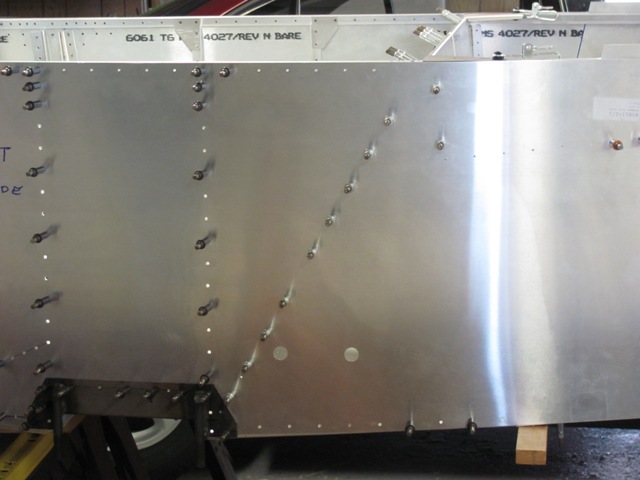

Aug 30, 2011 - Diagonal silver clecos indicate rivet line for the Side Angles.
JimSnyder17/IMG_4020.JPG

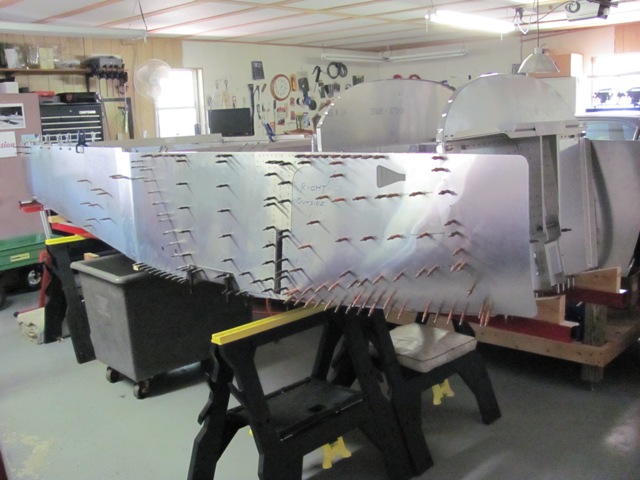

Aug 31, 2011 - View of fuselage to this point.
JimSnyder17/IMG_4021.JPG
JimSnyder17/IMG_4021.JPG

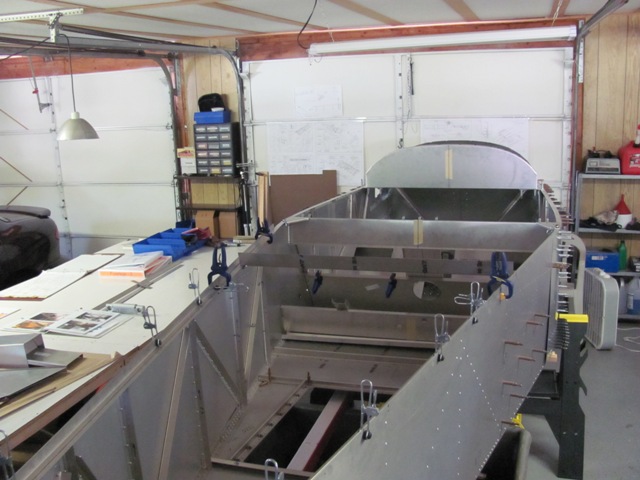

Aug 31, 2011 - View of fuselage from tail.
JimSnyder17/IMG_4022.JPG

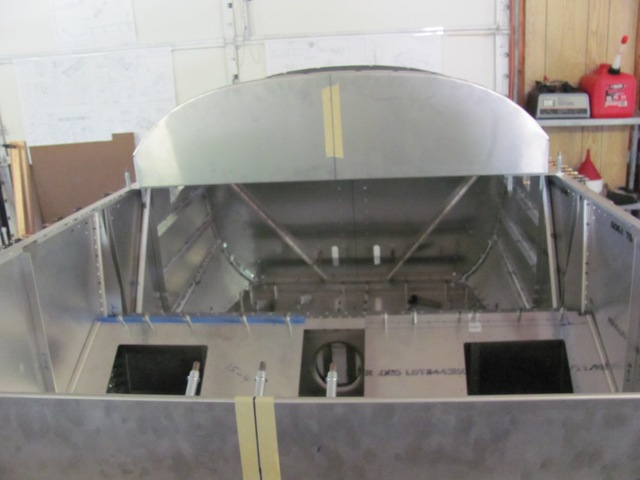

Aug 31, 2011 - Future cockpit area.
