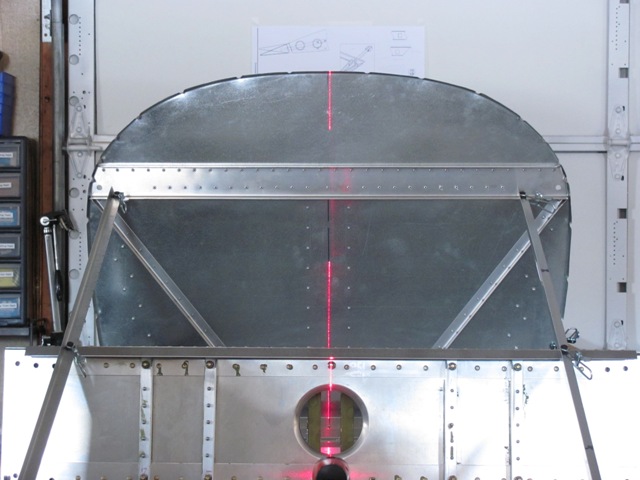

Feb 8, 2011 - Mounted and braced firewall on forward fuselage bottom.  Laser ensures firewall centered and perpendicular.
JimSnyder15/IMG_3699.JPG

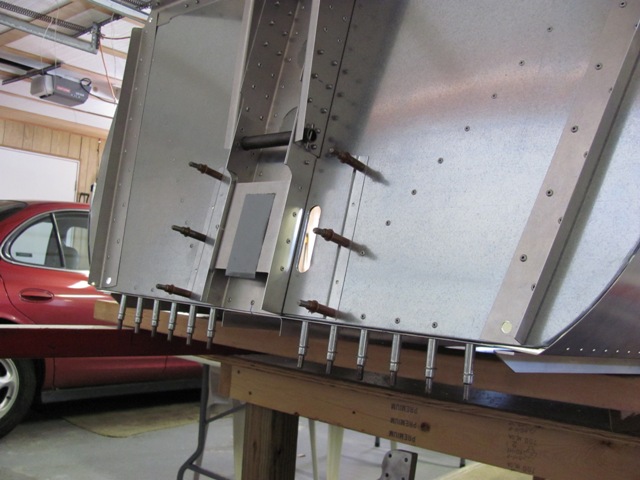

Feb 8. 2011 - Aligned firewall with front edge of floor pan, drilled and cleco-ed.  Plans call for 13 degree back slope.
JimSnyder15/IMG_3705.JPG

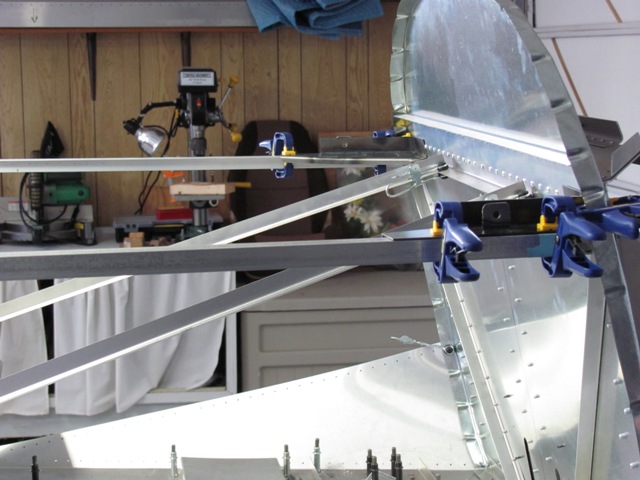

Feb 13, 2011 - Clamped engine mount support bracket to back of firewall, then clamped top front longeron to the bracket.
JimSnyder15/IMG_3706.JPG

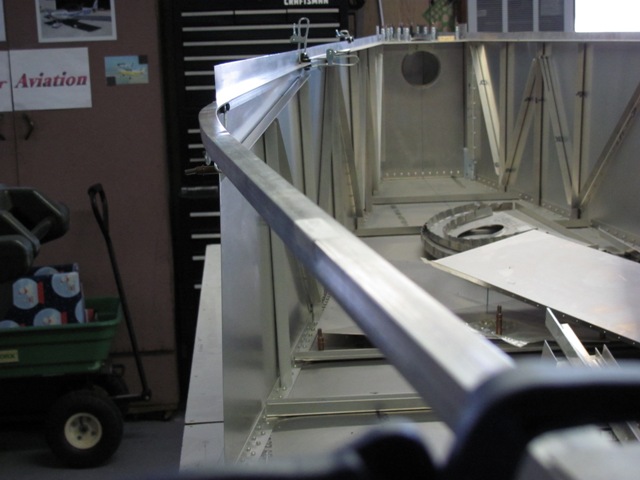

Feb 13, 2011 - Top front longeron preliminary leveled and clamped to rear side skin.
JimSnyder15/IMG_3708.JPG

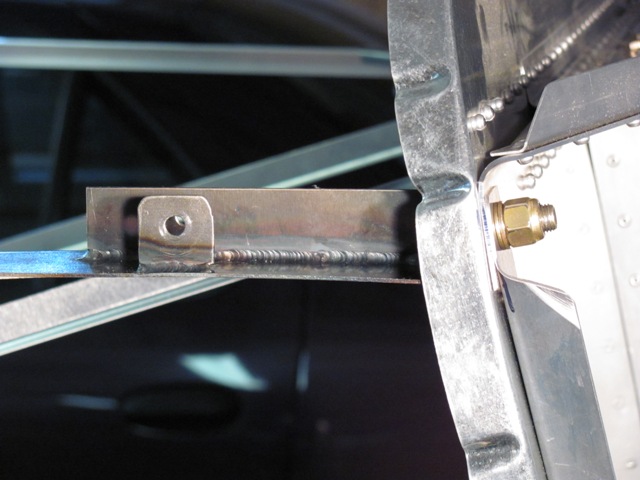

Feb 15, 2011 - Drilled engine mount support brackets, and bolted to firewall with AN6 (3/8") bolt.
JimSnyder15/IMG_3710.JPG

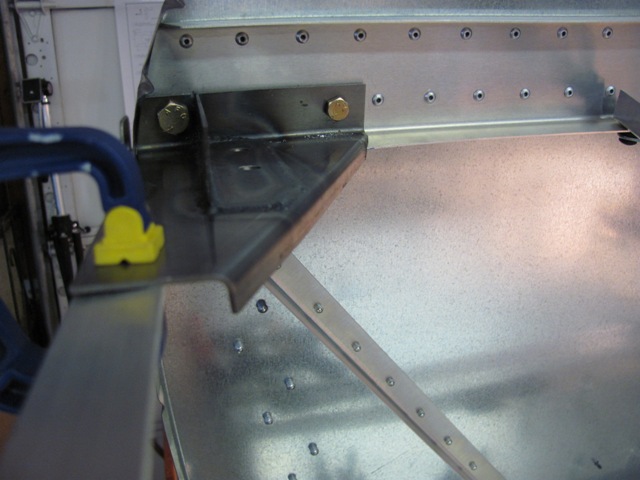

Feb 15, 2011 - Drilled secondary bolt location (AN4) through bracket and firewall.
JimSnyder15/IMG_3715.JPG

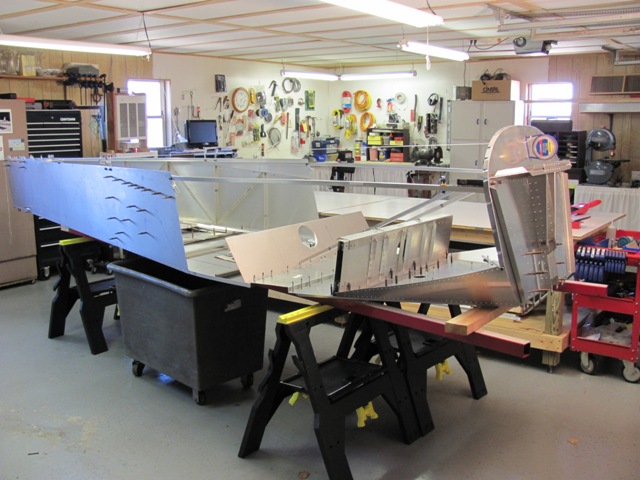

Mar 11, 2011 - Moved fuselage from work table to steel beams on saw horses.
JimSnyder15/IMG_3717.JPG

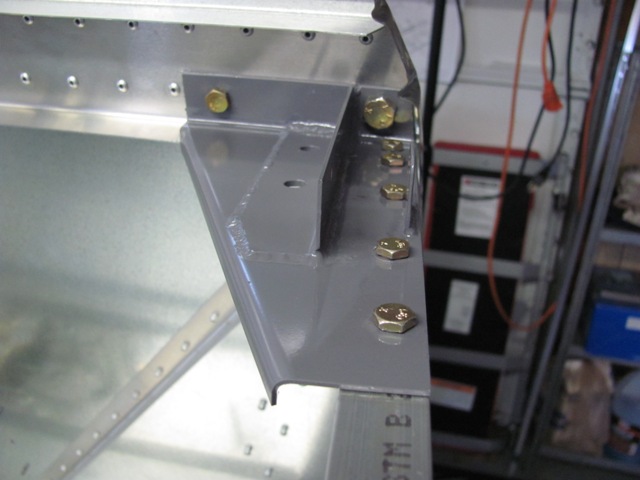

Mar 12, 2011 - Drilled, primed, and painted top engine mounting brackets.  Drilled matching holes in top forward longerons, and bolted together using AN3.
JimSnyder15/IMG_3718.JPG

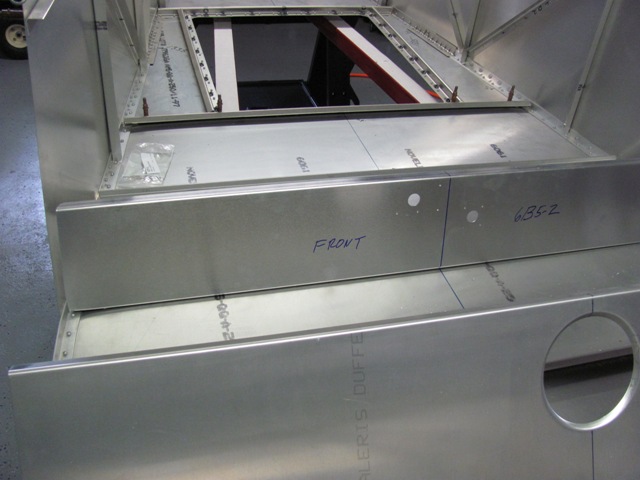

Mar 14, 2011 - Installed Rear Frame Channel.  Drilled and cleco-ed to floor.
JimSnyder15/IMG_3723.JPG

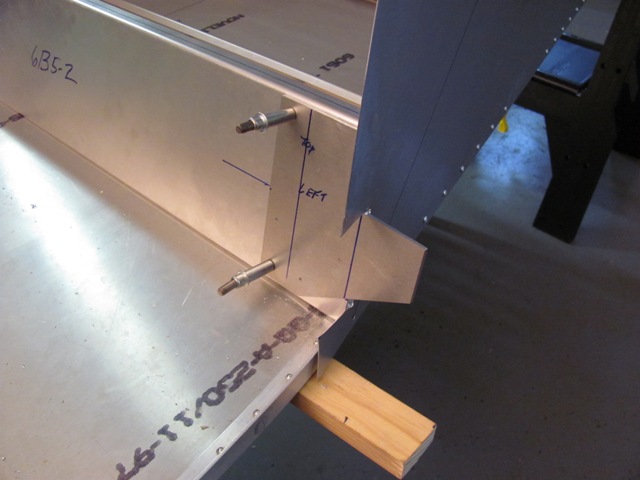

Mar 17, 2011 -Rear Frame Channel with Rear Spar Attachment plate installed.  Required to make cutout in side skin for fit.
JimSnyder15/IMG_3732.JPG

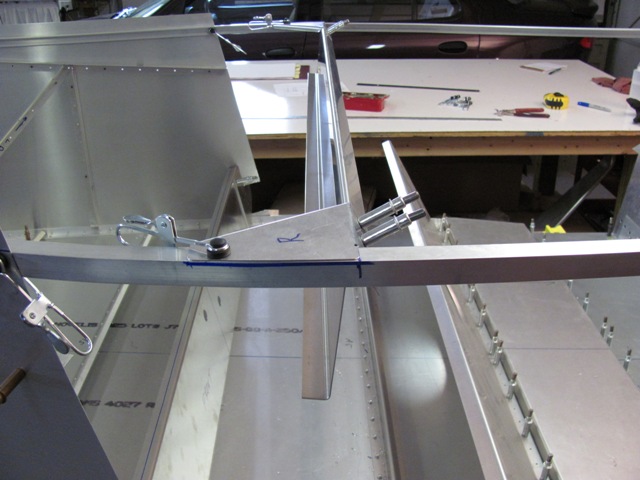

Mar 21, 2011 - Upper Rear Seat Support ans gusset installed.
JimSnyder15/IMG_3734.JPG
Mar 22, 2011 - Panel positioned across longerons.
JimSnyder15/IMG_3735.JPG

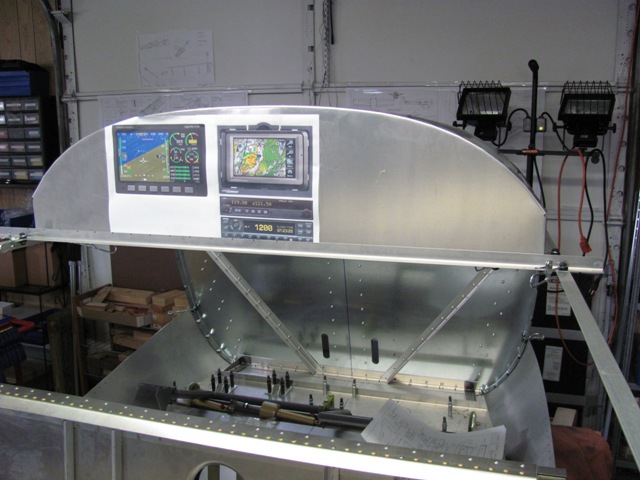

Mar 22, 2011 - Proposed panel avionics.
JimSnyder15/IMG_3737.JPG

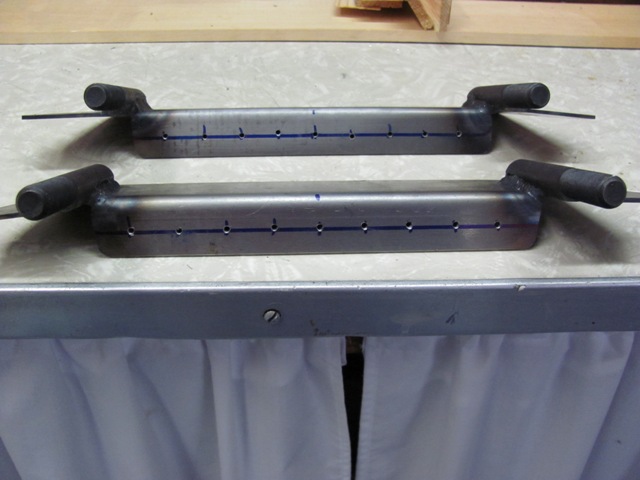

Mar 23, 2011 - Marked and drilled main gear mounting brackets.
JimSnyder15/IMG_3738.JPG

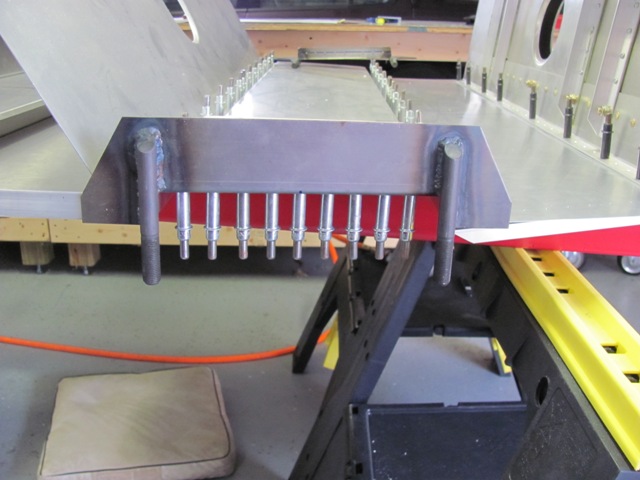

Mar 23, 2011 - Main gear brackets drilled and cleco-ed to main gear channel.  More holes will be drilled when side skin & internal bracing is added.
JimSnyder15/IMG_3739.JPG

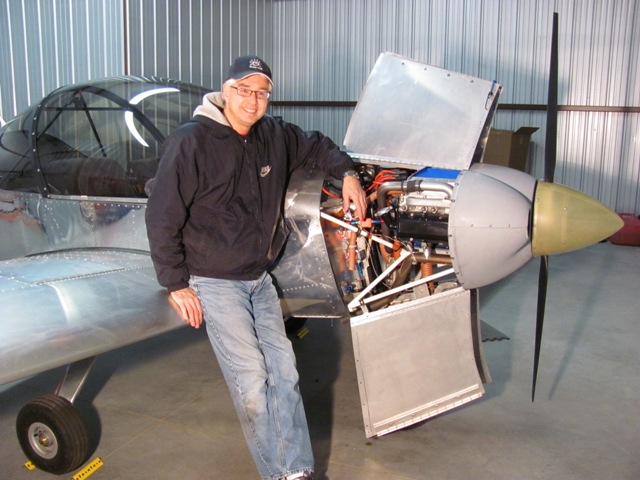

Mar 26, 2011 - Went to Shelbyville Airport to visit with Dave Gardea, who is building a Zenith 601/650.  He is using a Corvair engine,  FAA inspection scheduled for April 1.
JimSnyder15/IMG_3751.JPG

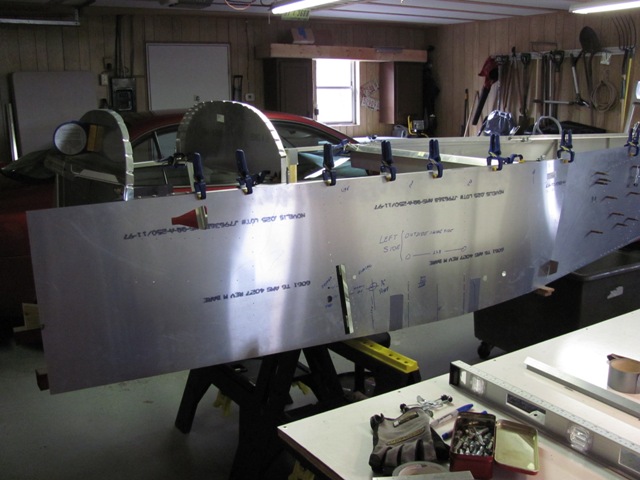

Mar 29, 2011 - Fitting forward side skin to fuselage.  More adjustments are needed to make sure everything lines up OK.
JimSnyder15/IMG_3752.JPG

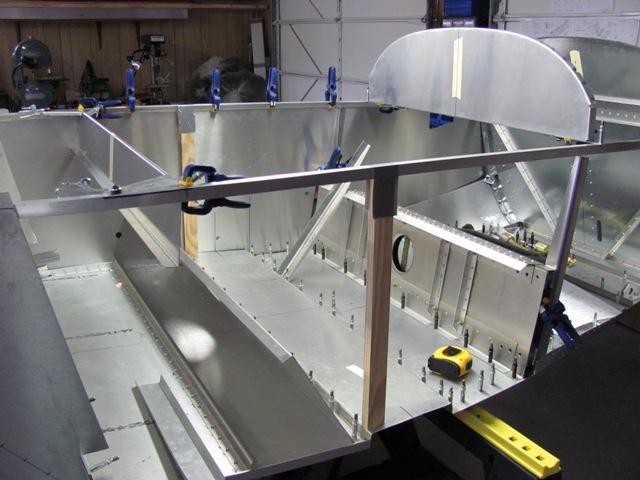

Mar 29, 2011 - View of future cockpit area.
