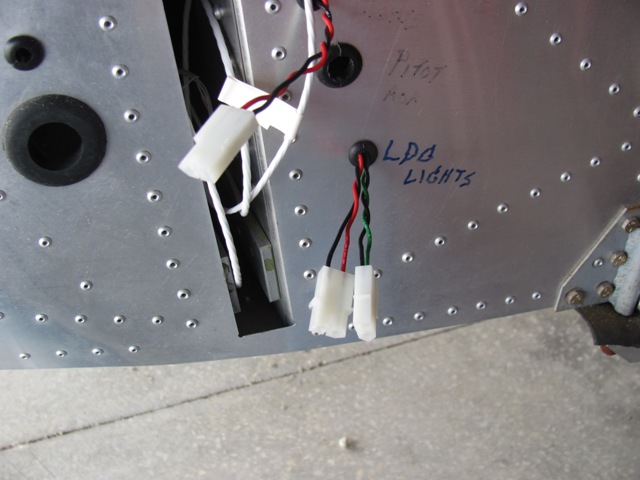

Sep 15, 2020 - The first couple weeks of September was spent doing on
various small wiring jobs and odds and ends.

HCAANewsletter/IMG_6418.JPG

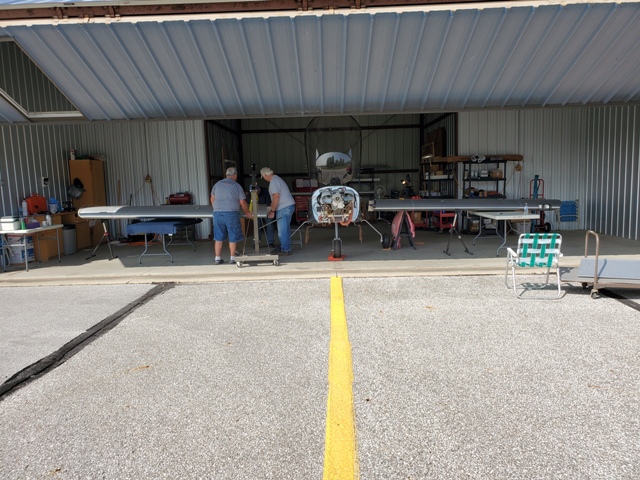

Sep 18, 2020 - Finally attempting the dry fit the wings and determine
flap attach points, etc.

HCAANewsletter/IMG_6419.JPG

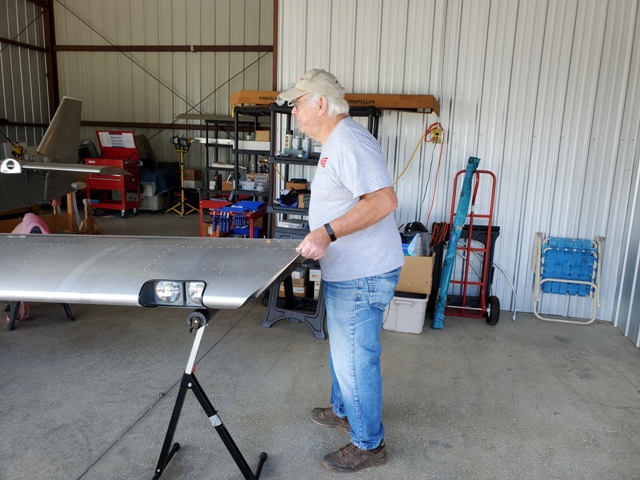

Sep 18, 2020 - Dallas Harding on the left wing tip.

HCAANewsletter/IMG_6420.JPG

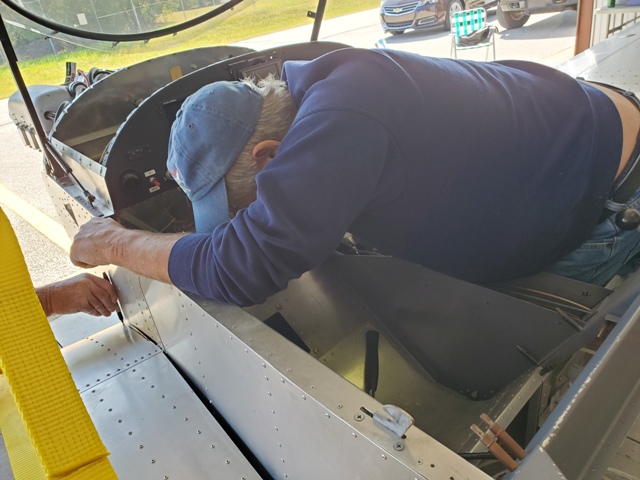

Sep 18, 2020 - Gary Reynolds inside the plane trying to insert bolts thru
the spars.  Dallas' hand is marking where the skin still needs trimming.

 HCAANewsletter/IMG_6423.JPG

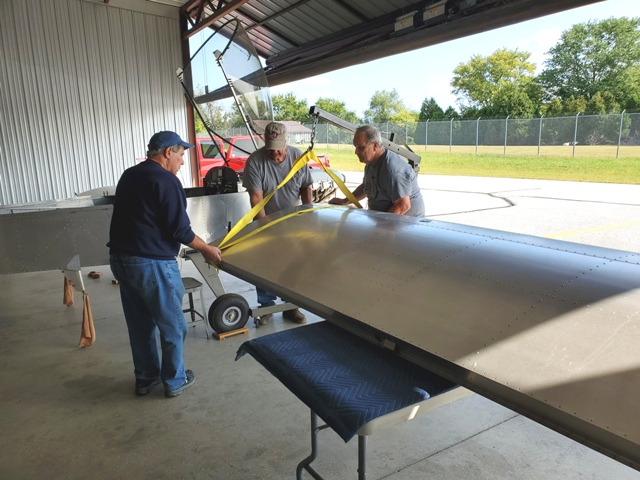

Sep 18, 2020 - Dallas, Gary and Don Hughes are starting to work on he
right wing.  Unfortunately, the wing spar would not fit into the main spar.

HCAANewsletter/IMG_6424.JPG

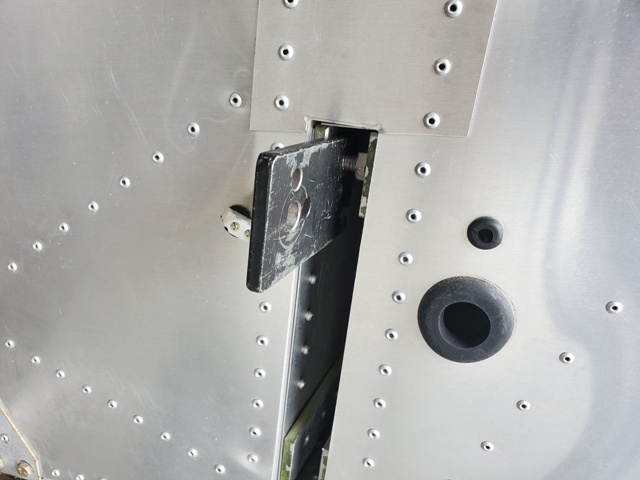

Sep 22, 2020 - Gary Reynolds fabricated a jack plate to try and enlarge
the opening of the main spar.

HCAANewsletter/IMG_6430.JPG

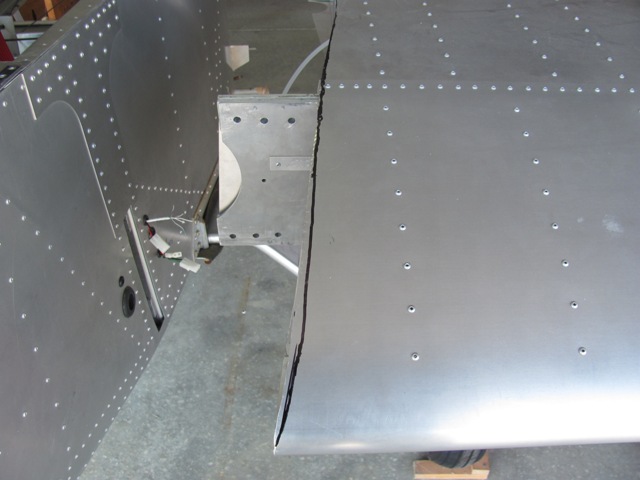

Sep 24, 2020 - Marking for additional trimming on left wing.

HCAANewsletter/IMG_6431.JPG

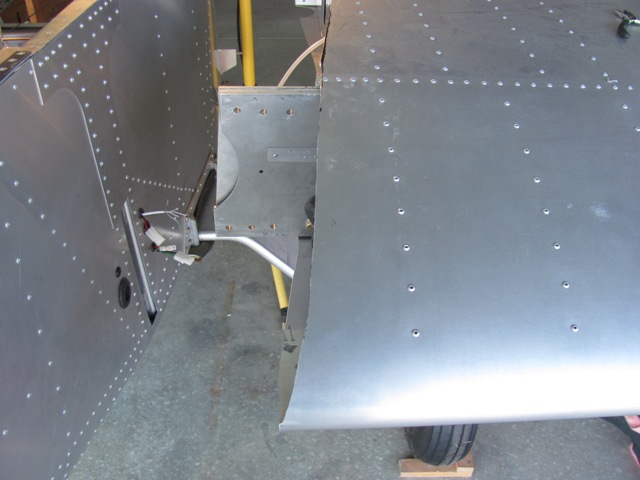

Sep 24, 2020 - After the trimming.

HCAANewsletter/IMG_6432.JPG

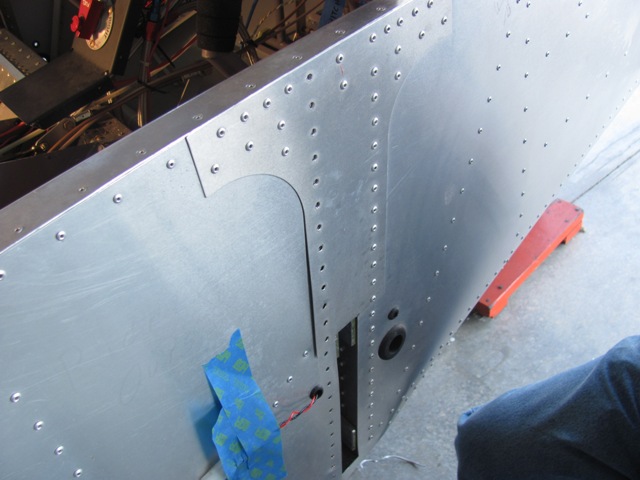

Sep 24, 2020 - Removed all rivets holding internal upright angle, releasing
pressure on the main spar for the right wing.

HCAANewsletter/IMG_6433.JPG

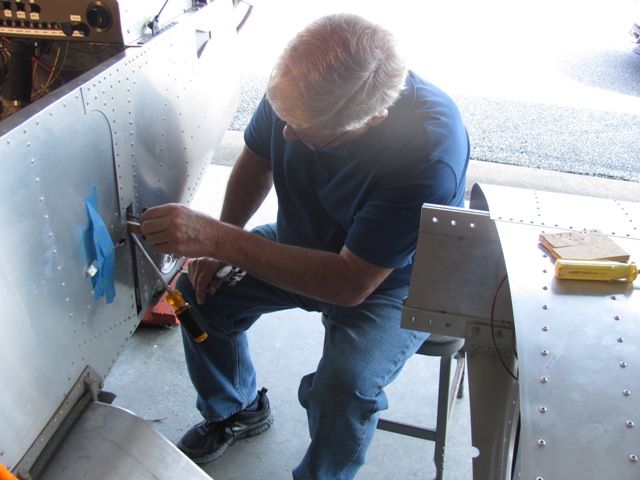

Sep 24, 2020 - Gary Reynolds measuring spar opening.

HCAANewsletter/IMG_6436.JPG

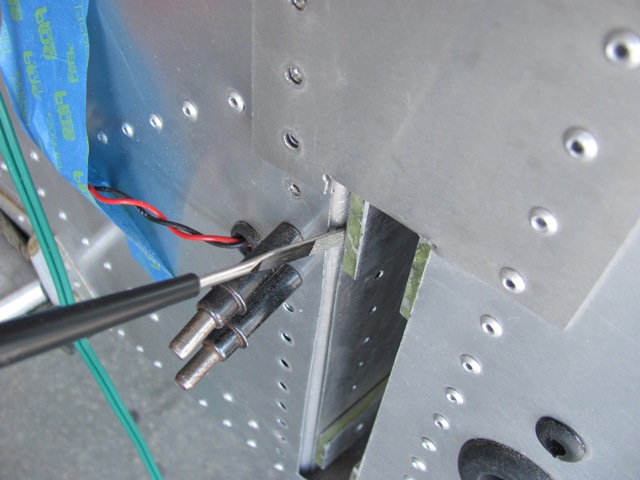

Sep 25, 2020 - Attempting to file the backside of the upright angle to
ease pressure on the main spar.

HCAANewsletter/IMG_6437.JPG

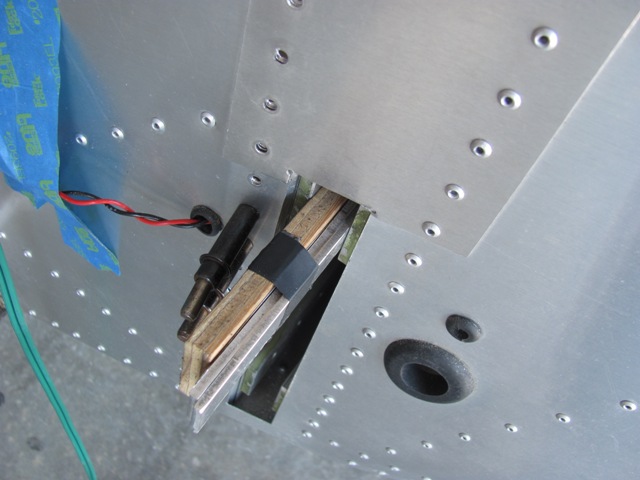

Sep 25, 2020 - Testing the fit of the size spacer that is .004 bigger than
the wing spar.

HCAANewsletter/IMG_6438.JPG

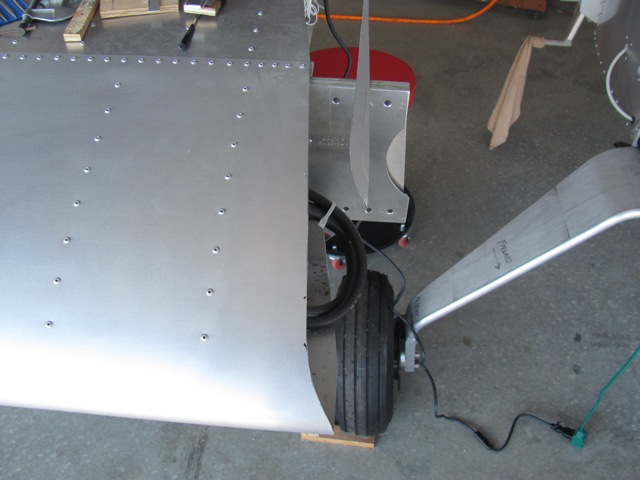

Sep 25, 2020 - Additional skin trimming similar to the left wing.

HCAANewsletter/IMG_6439.JPG

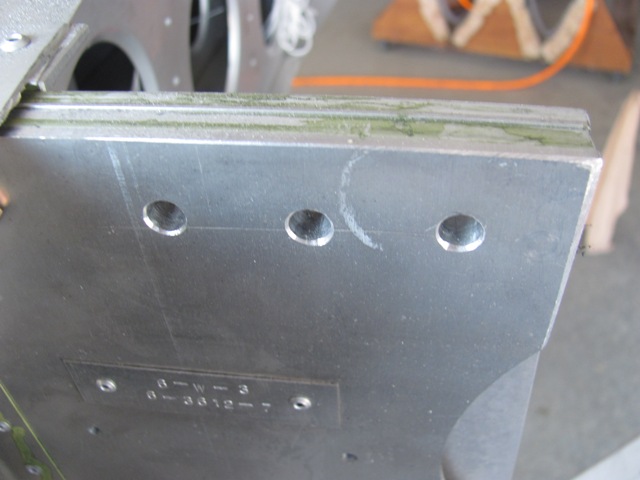

Sep 25, 2020 - Chamfered  bolt holes.

HCAANewsletter/IMG_6440.JPG

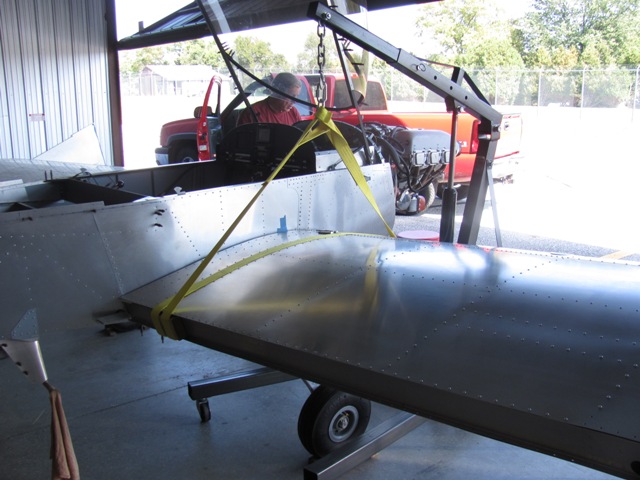

Sep 25, 2020 - With Gary's help, we got the wing inserted into the main spar.

HCAANewsletter/IMG_6443.JPG

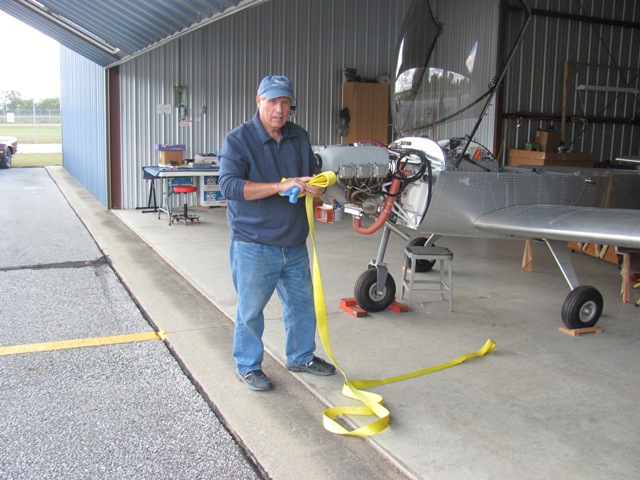

Sep 29, 2020 - Gary Reynolds tiding up after a hard days work attaching
wings.

HCAANewsletter/IMG_6444.JPG

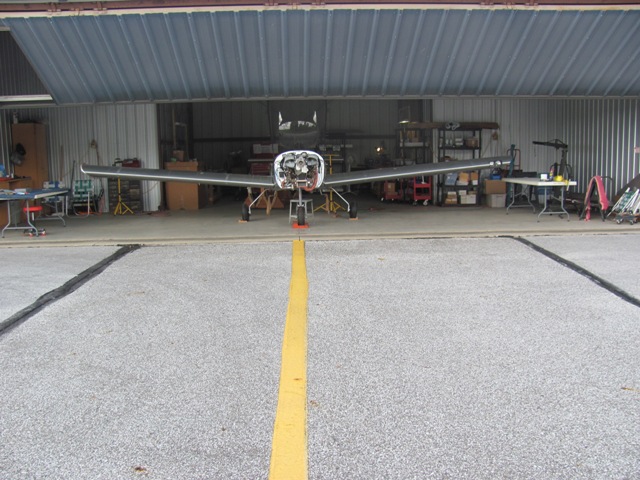

Sep 29, 2020 - Both wings temporally attached with 5/16 inch
(under size) bolts.  This will allow for flap attachment/setting, and
other work.

HCAANewsletter/IMG_6445.JPG

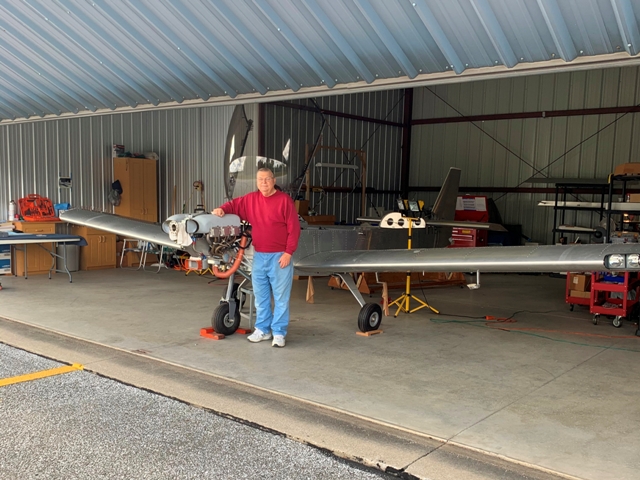

Sep 29, 2020 - Gary insisted on taking tthis picture to prove I was
around. lol
