SnyderUDZodiac41/IMG_5810.JPG

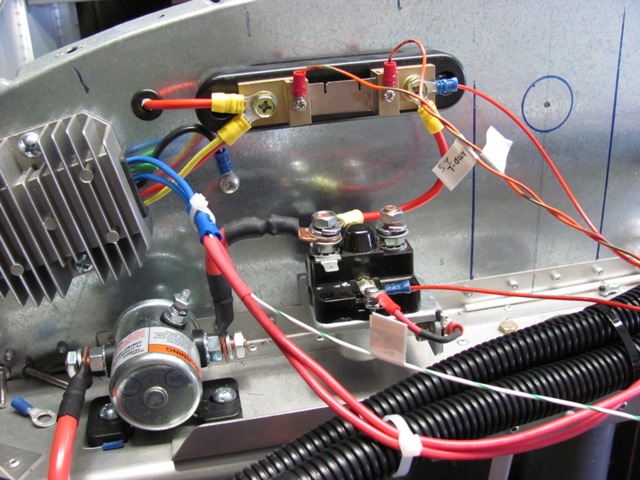

Jul 9, 2015 - Continuing with engine compartment wiring.
SnyderUDZodiac41/IMG_5814.JPG

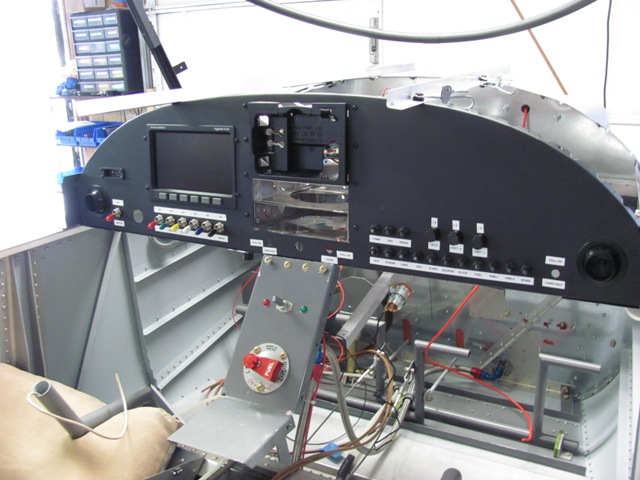

Jul 10, 2015 - Installed panel into airframe
SnyderUDZodiac41/IMG_5818.JPG

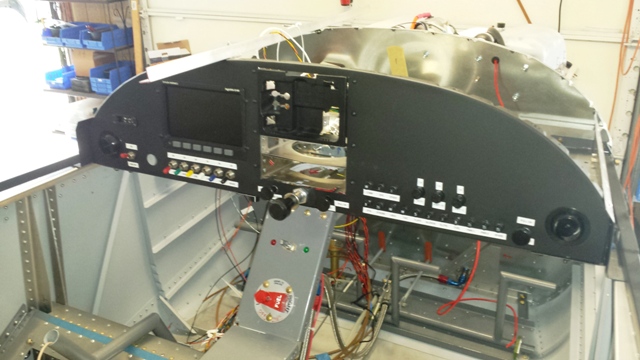

Jul 23, 2015 - Installed control cables into panel.
SnyderUDZodiac41/IMG_5819.JPG

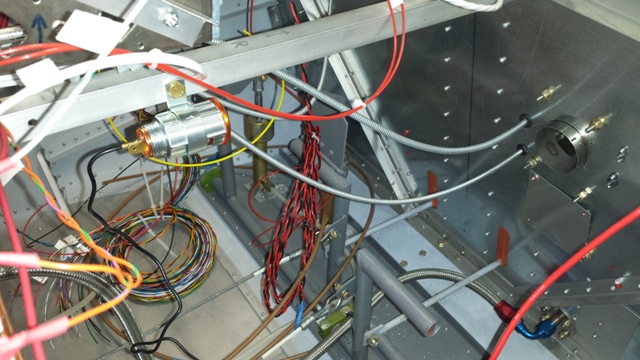

Jul 23, 2015 - Throttle & choke cables passing through firewall.
SnyderUDZodiac41/IMG_5821.JPG

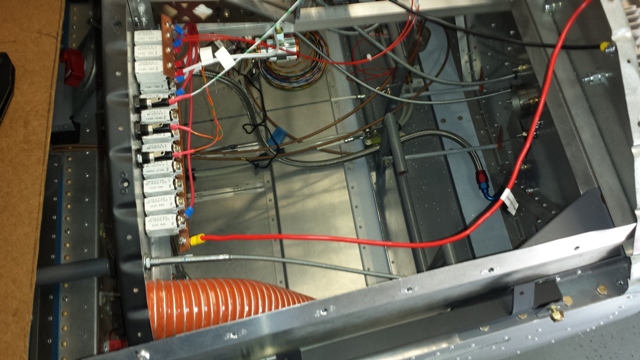

Jul 24, 2015 - .Connected the red B+ lead to the main power buss.
SnyderUDZodiac41/IMG_5822.JPG

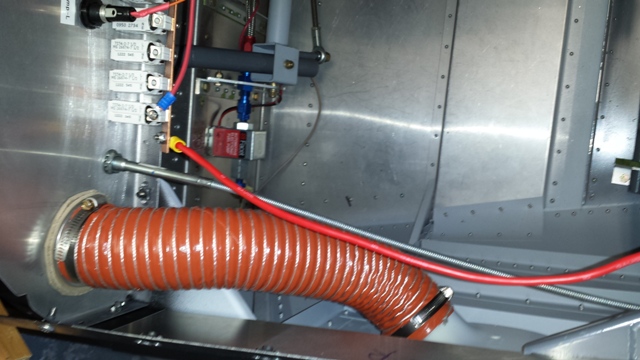

Jul 24, 2015 - Installed the right side fresh air duct.

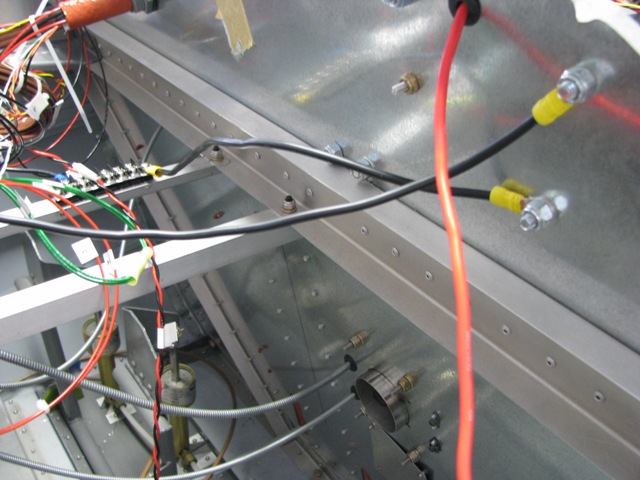

SnyderUDZodiac41/IMG_5831.JPG

Jul 27, 2015 - Power ground buss grounded to firewall.  Second ground goes to separate avionics ground buss.

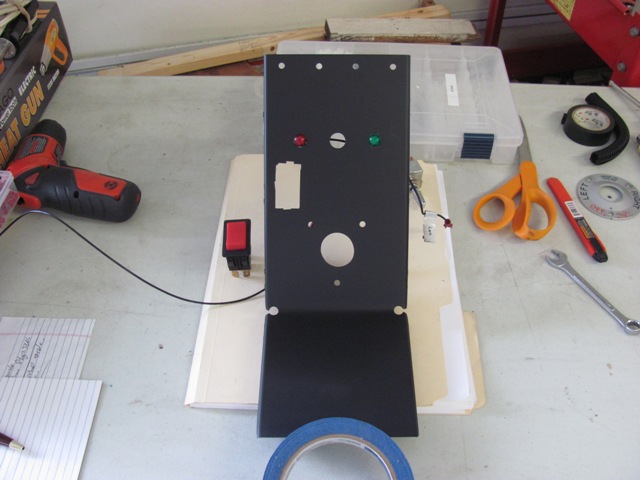

SnyderUDZodiac41/IMG_5847.JPG

Aug 8, 2015 - I decided to mount the flap actuator switch in the center console.  I removed the console, and cut a rectangular hole for the switch using a nibbler.  Then painted flat black to match panel.
SnyderUDZodiac41/IMG_5848.JPG

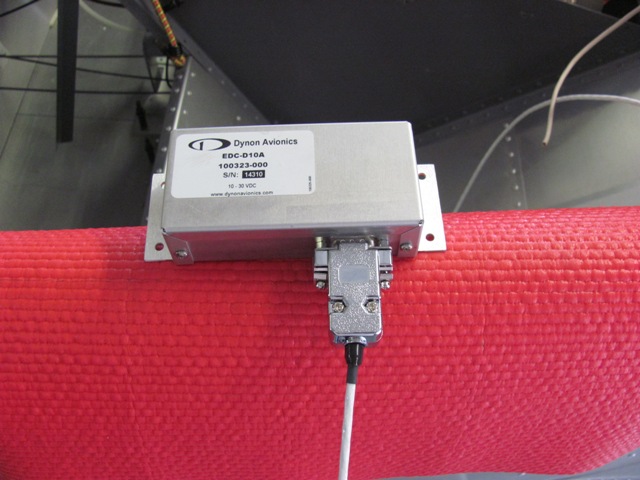

Aug 9, 2015 - This is the Dynon remote compass unit.  It must be located away from any magnetic interference.
SnyderUDZodiac41/IMG_5849.JPG

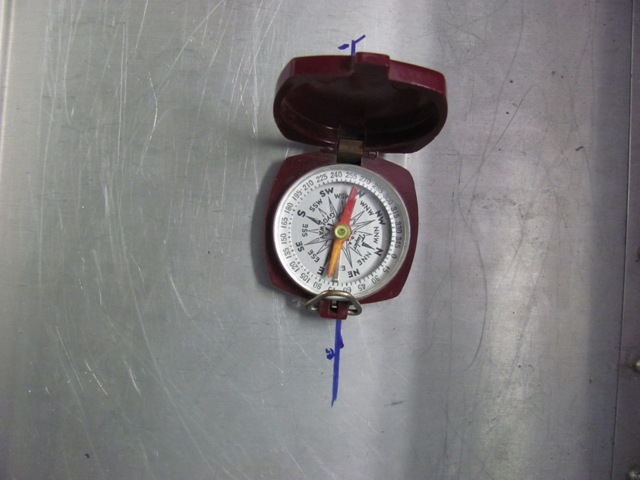

Aug 9, 2015 - Potential location for remote compass behind passenger seat had magnetic interference of nearly 90 degrees.

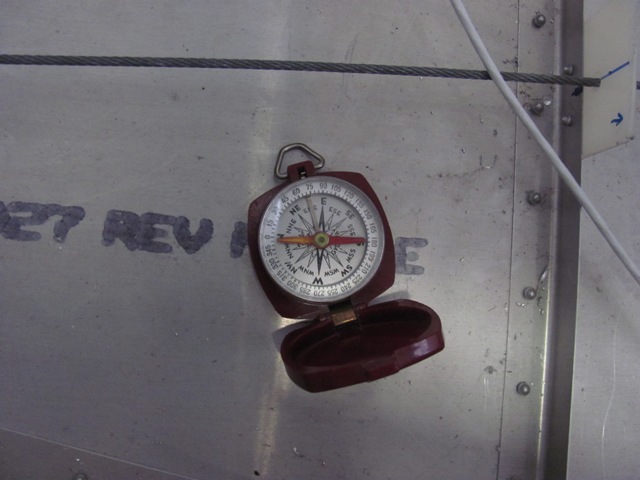

SnyderUDZodiac41/IMG_5850.JPG

Aug 9, 2015 - Found perfect location for remote compass to be in rear fuselage.
SnyderUDZodiac41/IMG_5852.JPG

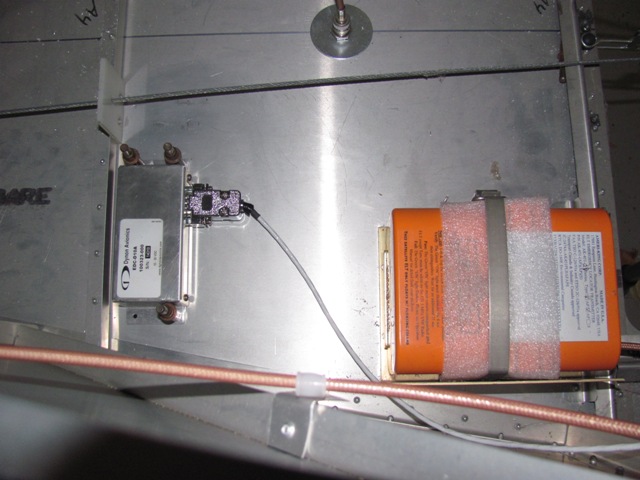

Aug 10, 2015 - Remote compass location.
SnyderUDZodiac41/IMG_5855.JPG

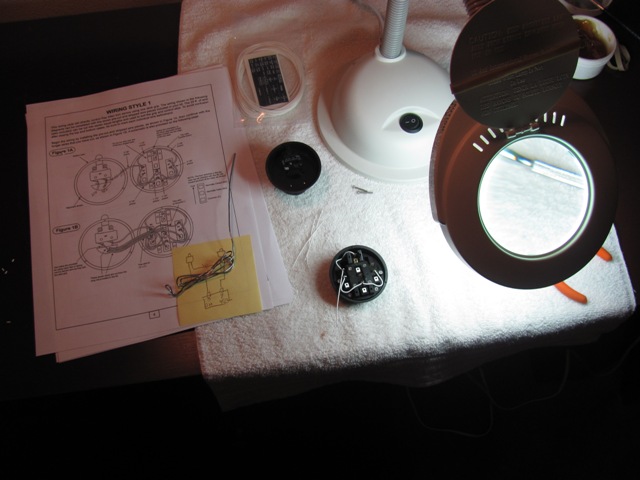

Aug 16, 2015 - Starting to wire the Ray Allen control head for the pilot side stick grip.
SnyderUDZodiac41/IMG_5856.JPG

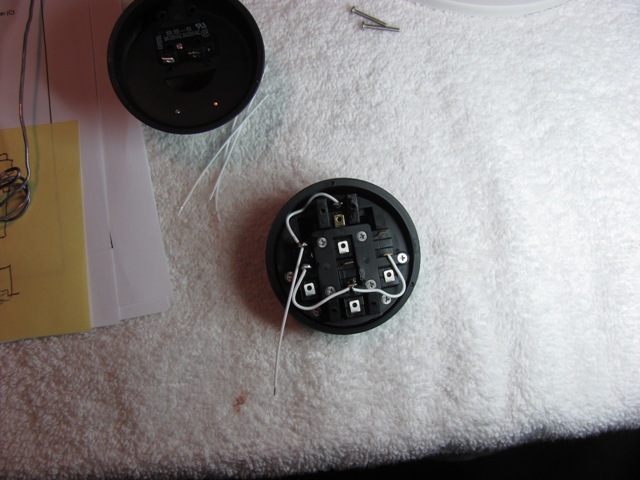

Aug 16, 2015 - A closer view of the wiring required.  I don't know why this could not be doe at the factory.
SnyderUDZodiac41/IMG_5857.JPG

Aug 16, 2015 - Wiring complete and labels attached,.
SnyderUDZodiac41/IMG_5865.JPG

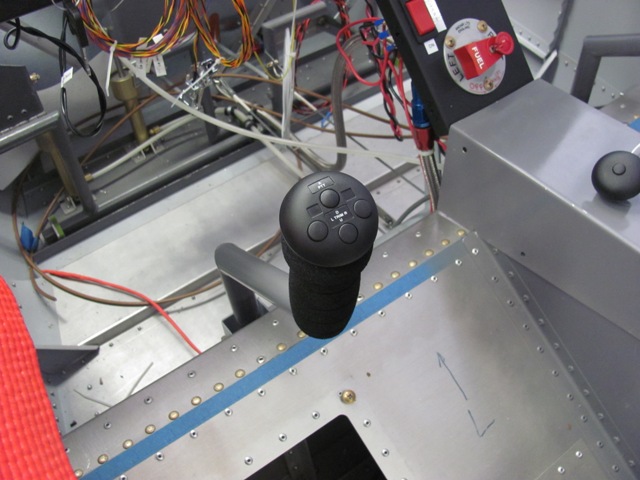

Aug 17, 2015 - The pilot stick grip installed, with trim buttons and PTT.
SnyderUDZodiac41/IMG_5870.JPG

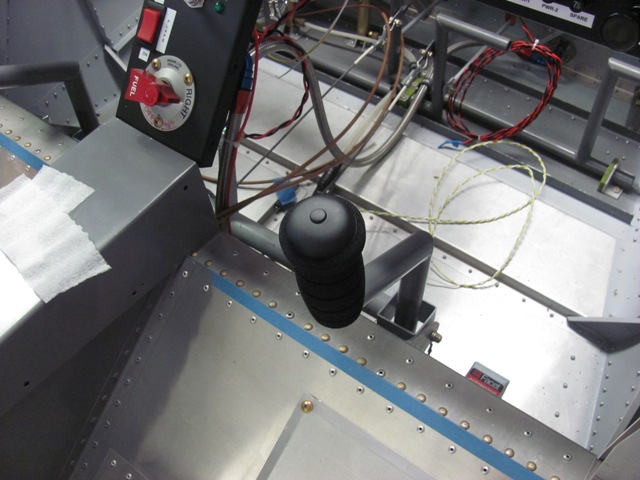

Aug 17, 2015 - The passenger side stick grip and PTT switch installed.
SnyderUDZodiac41/IMG_5873.JPG

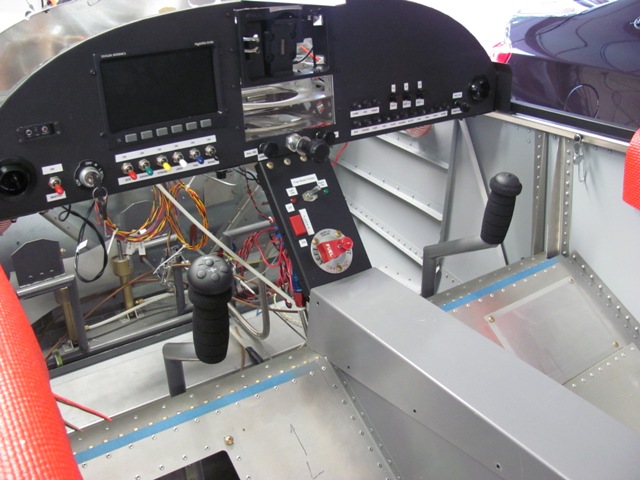

Aug 17, 2015 - View of panel and stick grips.
SnyderUDZodiac41/IMG_5881.JPG

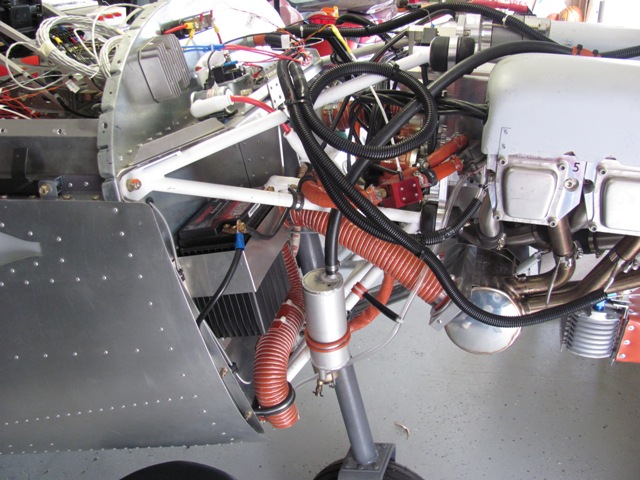

Aug 22, 2015 - Made the throttle and choke cable connections to the carb.  Connected cable to carb heat control.  Reconnected cabin heat control cable.  Battery reinstalled.  All engine compartment plumbing and wiring completed.  Ready for cowling.
SnyderUDZodiac41/IMG_5882.JPG

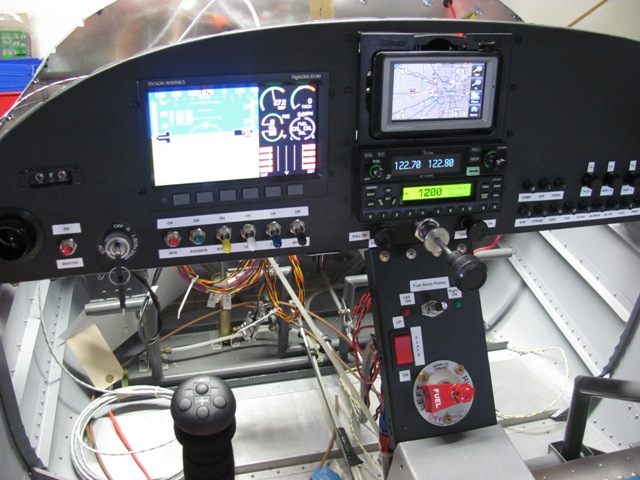

Aug 23, 2015 - Installed GPS, Comm, and transponder unit in the radio stack.
