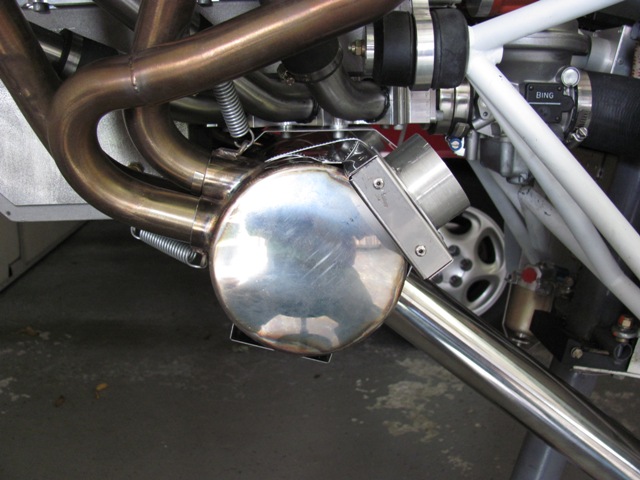

Sep 12, 2014 -  Inserted and trimmed new end piece for cabin heat muff.  Installed cabin heat muff and carb heat muff on the muffler.  Installed muffler, held in place with four springs.
HCAANewsletter/IMG_5510.JPG

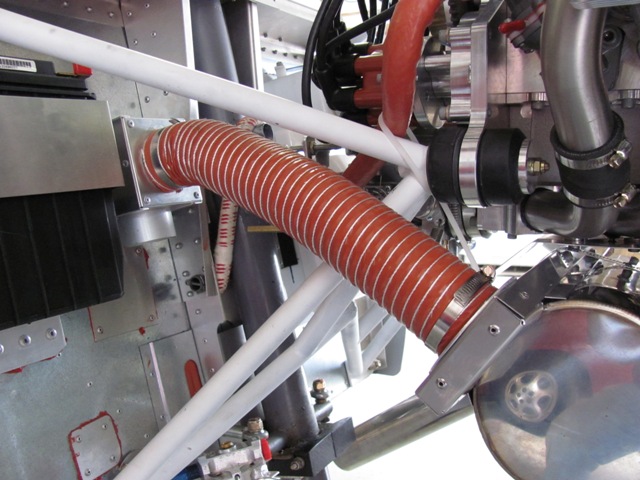

Sep 12, 2014 - Installed scat tubing to cabin heat box.
HCAANewsletter/IMG_5512.JPG

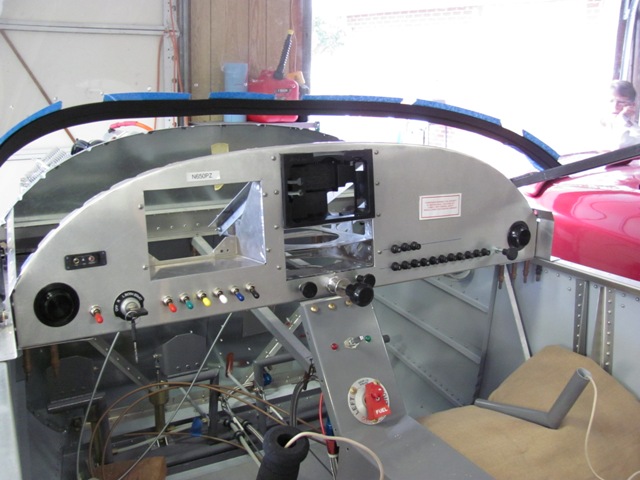

Sep 13, 2014 - Temporary installation of panel.
HCAANewsletter/IMG_5513.JPG

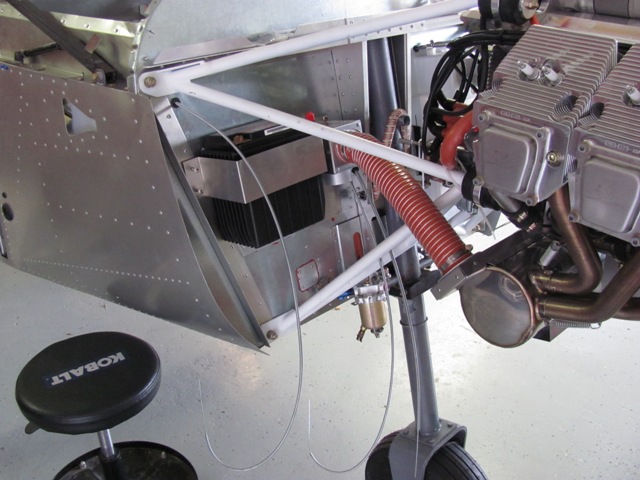

Sep 13, 2014 - Obviously, all the control cables will have to be trimmed to length.
HCAANewsletter/IMG_5520.JPG

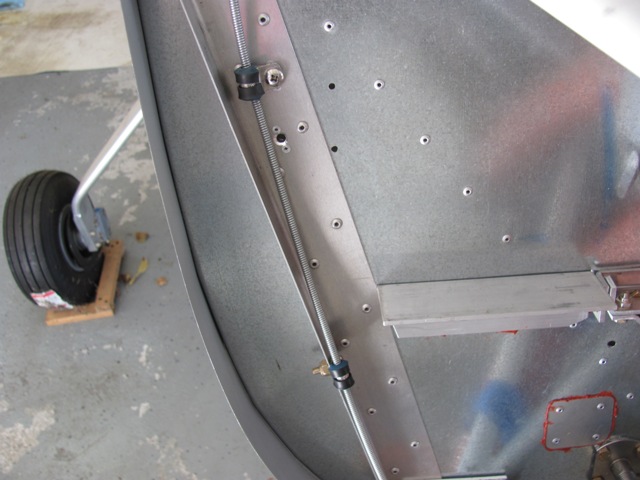

Sep 19, 2014 - Control cable for cabin heat running down side of firewall.
HCAANewsletter/IMG_5521.JPG

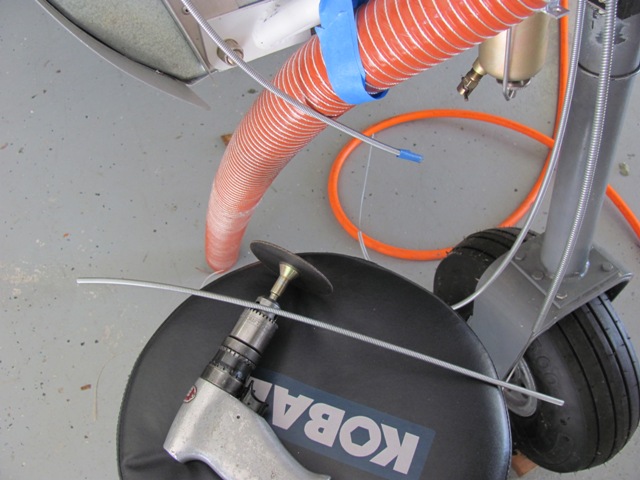

Sep 19, 2014 - Trimmed 17 inches from the cable as provided.

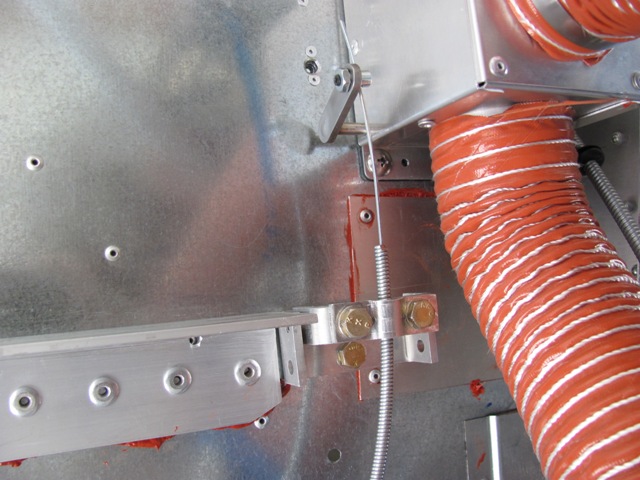

HCAANewsletter/IMG_5522.JPG

Sep 19, 2014 - Trimmed length installed and adjusted to ensure full open and close.  Bottom scat tube will dump hot air overboard when not going to cabin.
HCAANewsletter/IMG_5523.JPG

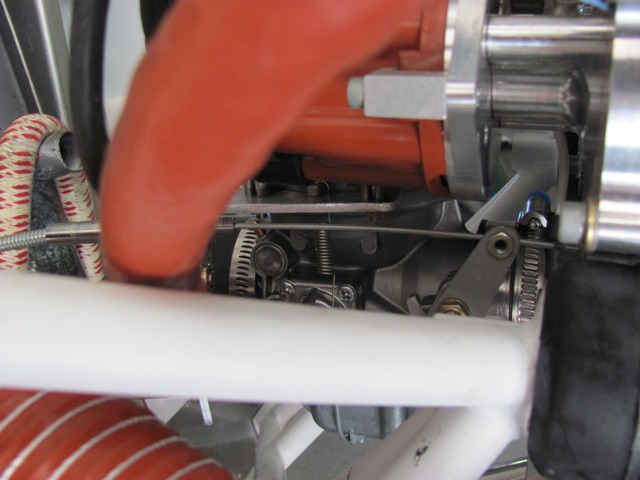

Sep 21, 2014 - Trimmed and installed throttle cable.  Also, choke and carb heat cables.
HCAANewsletter/IMG_5529.JPG

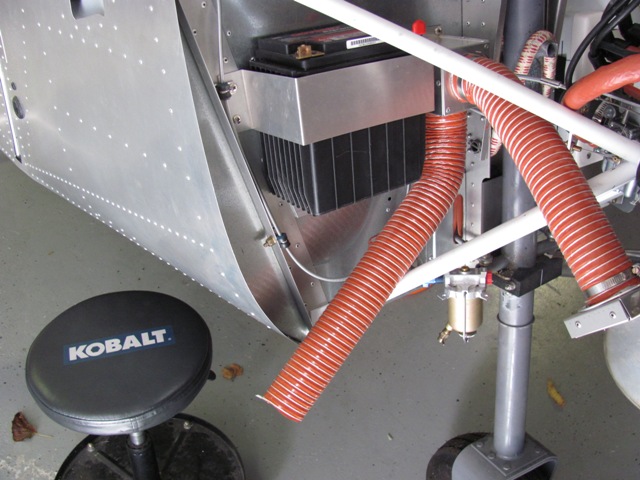

Sep 24, 2014 - Cut off length of scat tubing to dump hot air over board when not used for cabin heat.
HCAANewsletter/IMG_5530.JPG

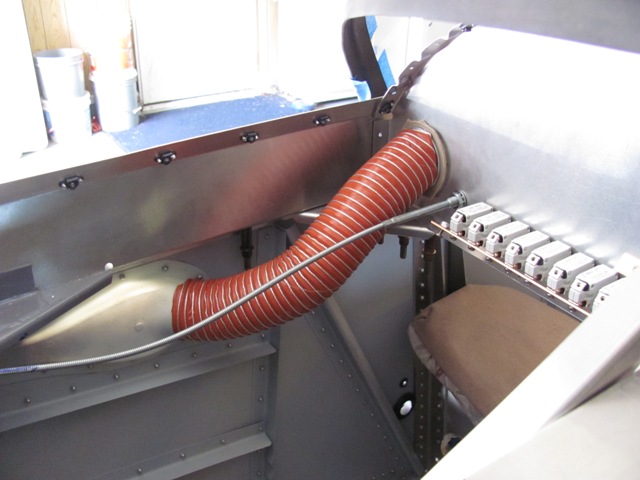

Sep 24, 2014 - Cut scat tubing for fresh air ducting to cabin.
HCAANewsletter/IMG_5540.JPG

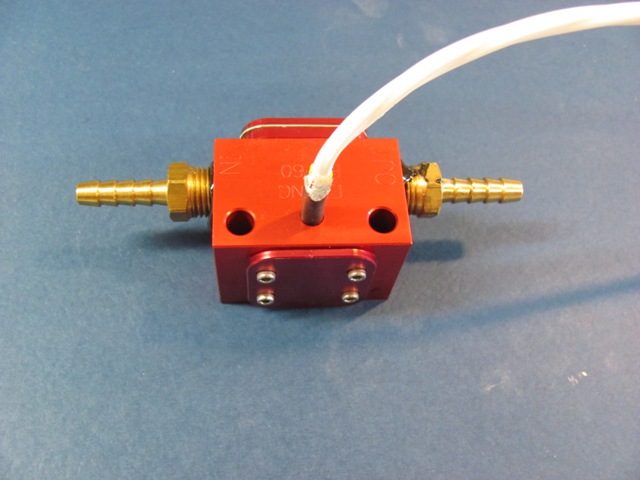

Oct 11, 2014 - Inline Fuel Flow Sensor for the Dynon EFIS/EMS unit.
HCAANewsletter/IMG_5542.JPG

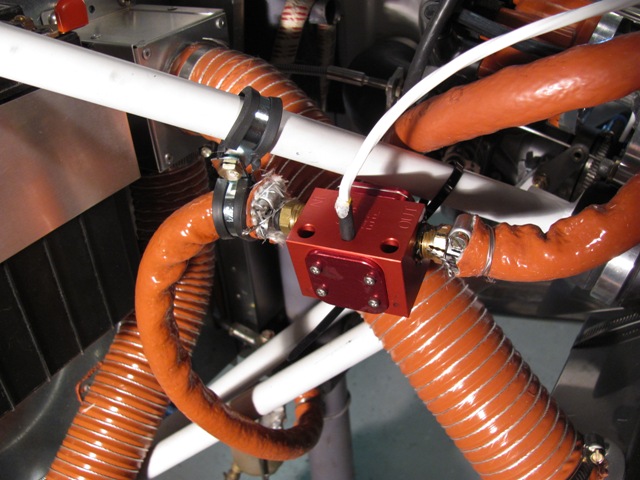

Oct 11, 2014 - This is one of several attempts to route the fuel line with the sensor inserted.  Decided to order new fuel line and start over.
HCAANewsletter/IMG_5547.JPG

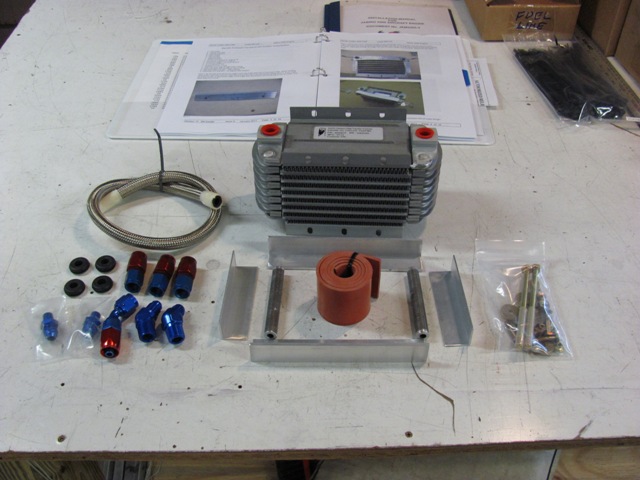

Oct 15, 2014 - Oil cooler kit
HCAANewsletter/IMG_5552.JPG

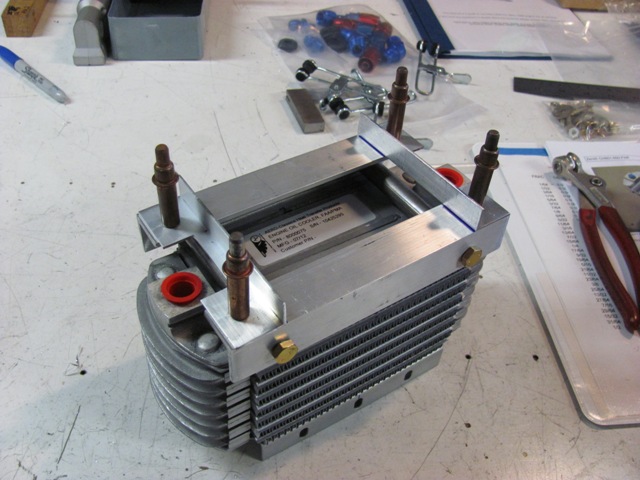

Oct 15, 2014 - Making oil cooler mounting brackets.
HCAANewsletter/IMG_5554.JPG

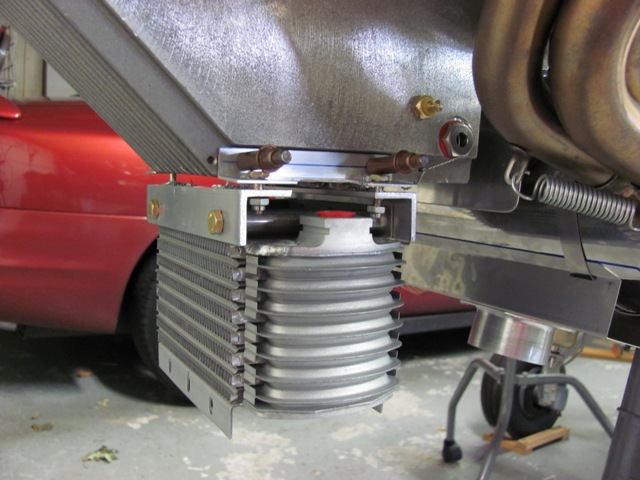

Oct 15, 2014 - Oil cooler assembly drilled to oil pan.
HCAANewsletter/IMG_5558.JPG

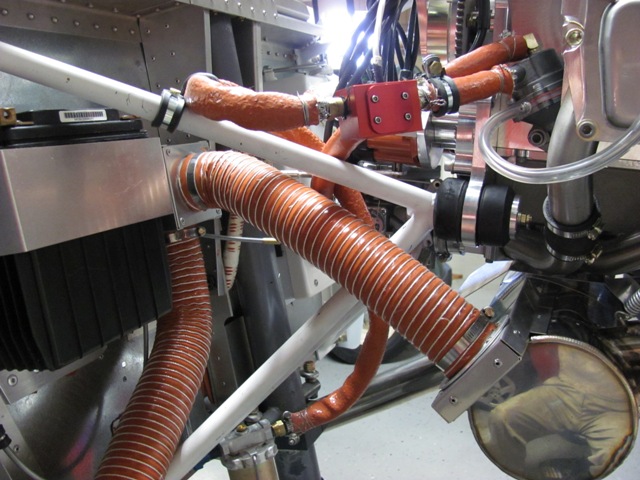

Oct 20, 2014 - Final installation of incoming fuel line.
HCAANewsletter/IMG_5563.JPG

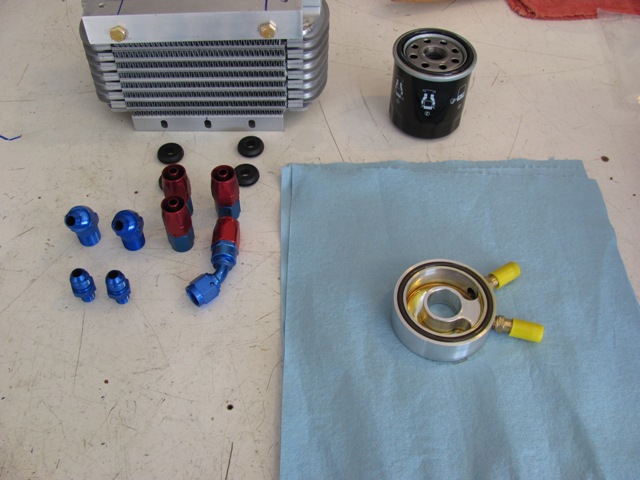

Oct 25, 2014 - Oil cooler with various fittings and hose ends.  Removed oil filter and oil bypass from engine.
HCAANewsletter/IMG_5564.JPG

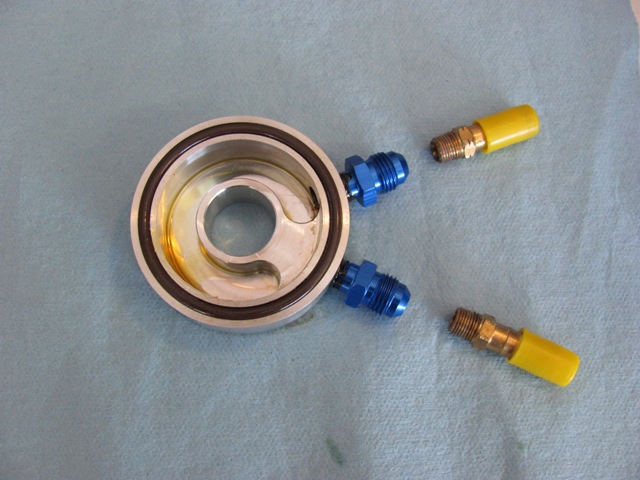

Oct 25, 2014 - Replaced original nipple fittings with AN6 fittings for hose connections.
HCAANewsletter/IMG_5566.JPG

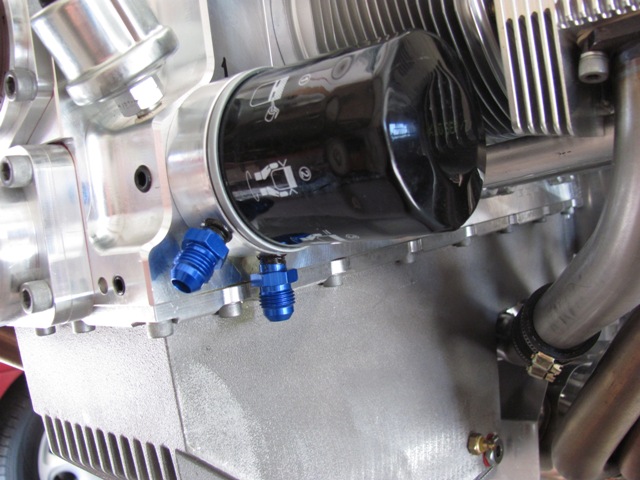

Oct 25, 2014 - Oil bypass and filter re-installed on engine.
HCAANewsletter/IMG_5572.JPG

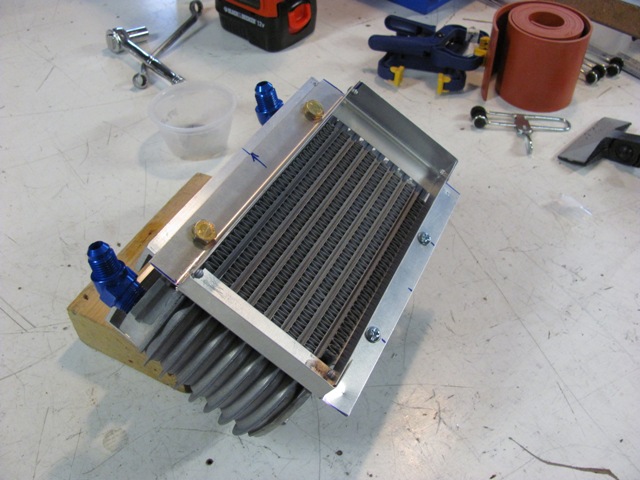

Oct 31, 2014 - Used L-angle to make frame to mount baffle material.
HCAANewsletter/IMG_5575.JPG

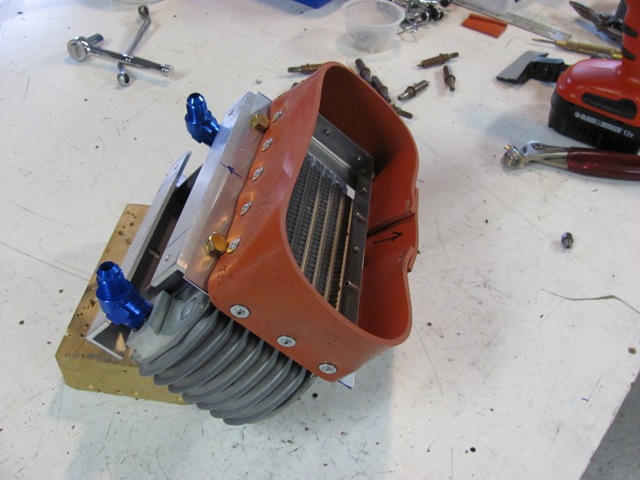

Oct 31, 2014 - Riveted baffle material to L-angle frame to form air seal.

HCAANewsletter/IMG_5576.JPG

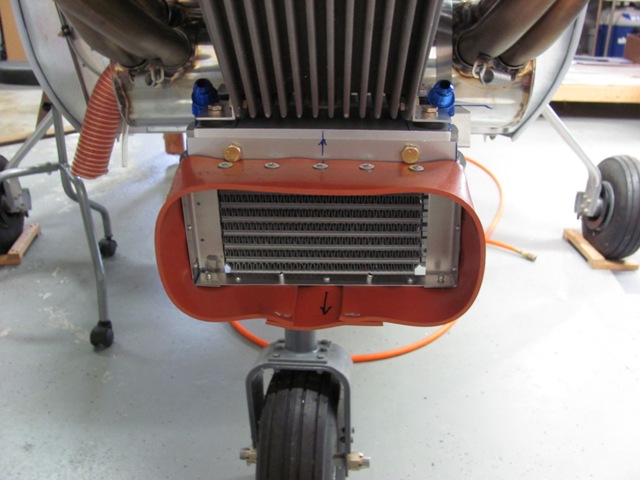

Oct 31, 2014 - Oil cooler mounted to oil pan.  When cowling is installed, the baffle material will seal around the front air scoop.
HCAANewsletter/IMG_5579.JPG

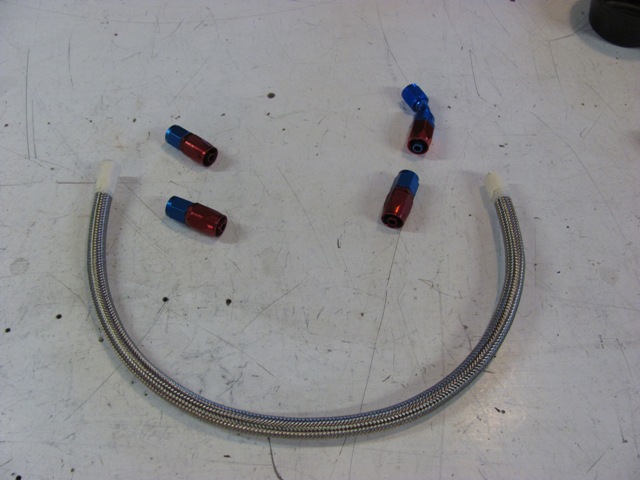

Nov 2, 2014 - Braided oil line and hose fittings for use with oil cooler.
HCAANewsletter/IMG_5581.JPG

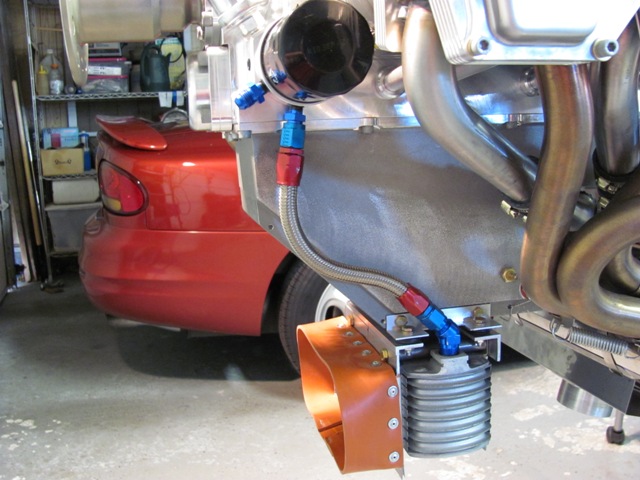

Nov 2, 2014 - Cut and fabricated first line connecting oil bypass to oil cooler.

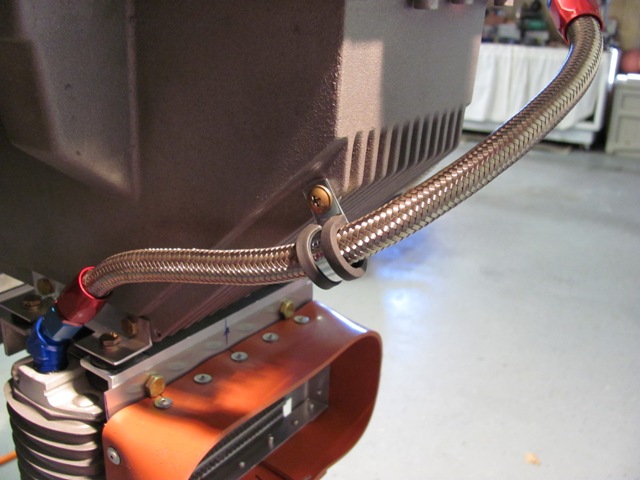

HCAANewsletter/IMG_5583.JPG

Nov 2, 2014 - Second line from oil bypass to oil cooler, with cushion clamp for stabilization.

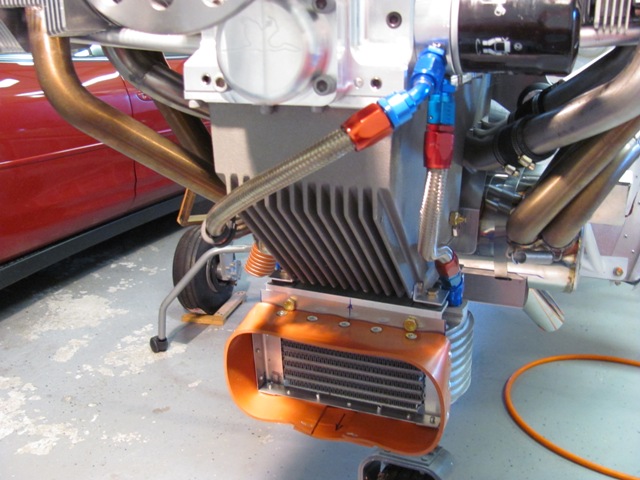

HCAANewsletter/IMG_5585.JPG

Nov 2, 2014 - Another view..  Installation complete.
