JimSnyder24/IMG_4315.JPG

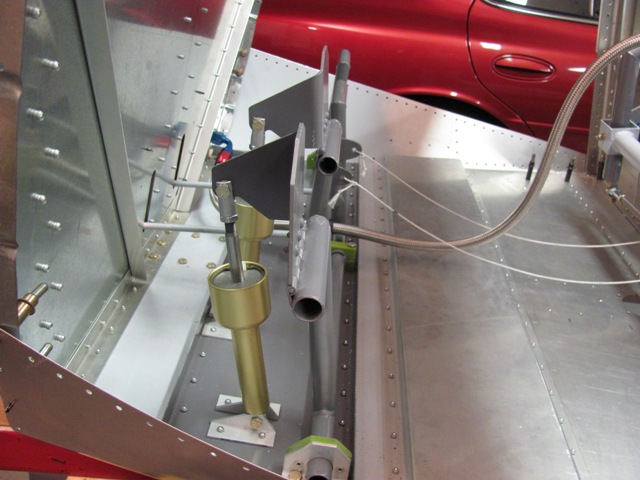

May 1, 2012 - Adjusted rudder & brake pedals.
JimSnyder24/IMG_4319.JPG

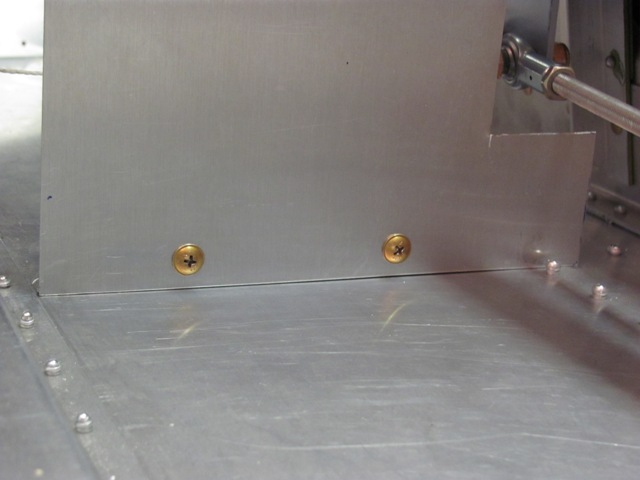

May 1, 2012 - May 1, 2012 - Added nut plates to L-angles for bottom of center console side fairings.  Side fairings attached with 10-32 screws to the L-angles.
JimSnyder24/IMG_4321.JPG

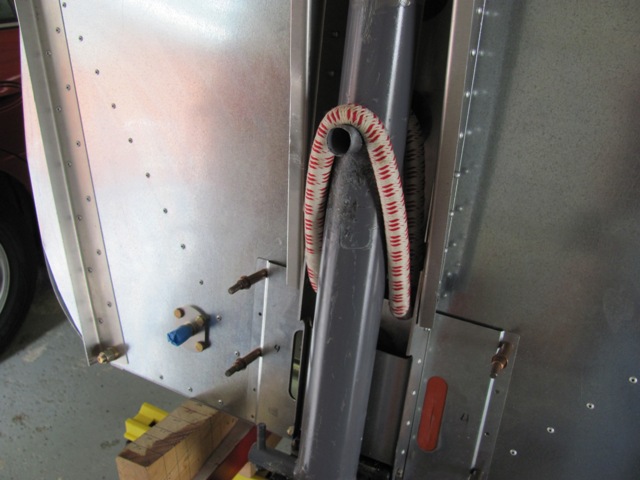

May 4, 2012 - Replaced previous 1080HD bungee with a plain 1080.  Trying to reduce tightness to rudders.
JimSnyder24/IMG_4322.JPG

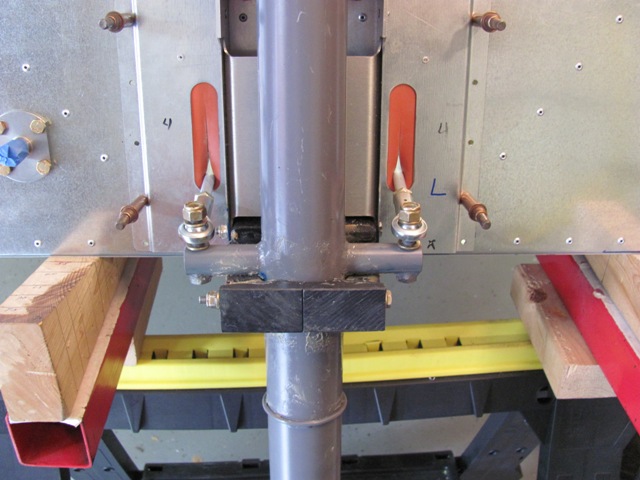

May 4, 2012 - Installed red baffle material in lieu of the metal sliders for the steering rods.
JimSnyder24/IMG_4329.JPG

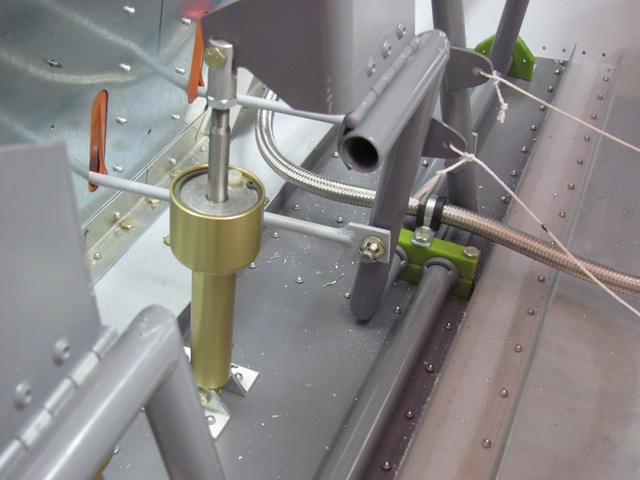

May 4, 2012 - Installed red baffle material in lieu of the metal sliders for the steering rods.
JimSnyder24/IMG_4330.JPG

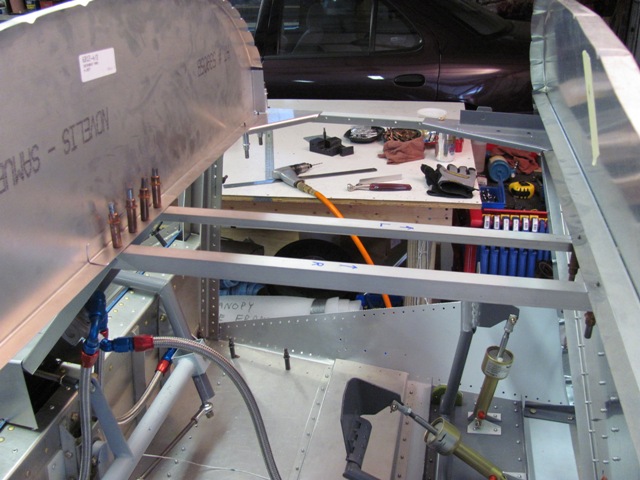

May 12, 2012 - Drilled and clecoed .062 L-extrusions (in lieu of .040 L-angle) between firewall and bottom of panel.
JimSnyder24/IMG_4345.JPG

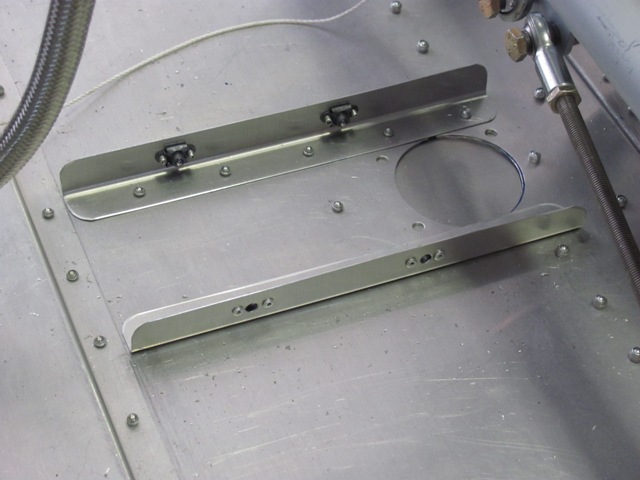

May 15, 2012 - Riveted L-angles for center console side fairings to floor.
JimSnyder24/IMG_4346.JPG

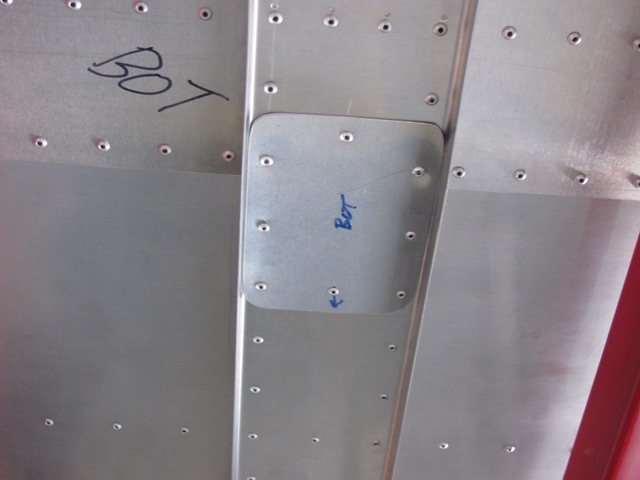

May 15, 2012 - Riveted cover plate over old hole in floor for gascolator.
JimSnyder24/IMG_4349.JPG

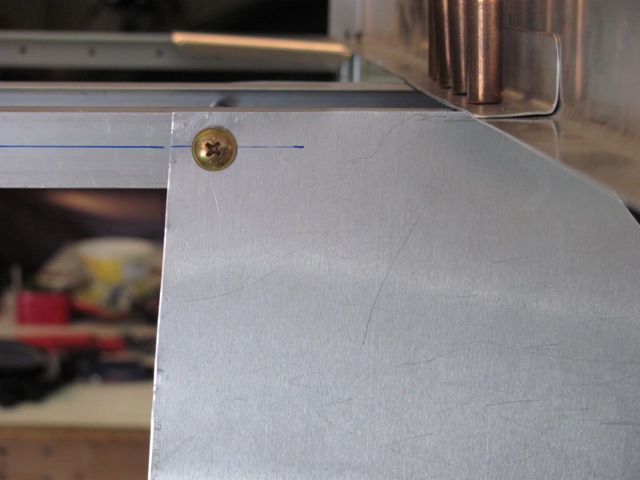

May 15, 2012 - Side fairing in place, screwed to panel brace.
JimSnyder24/IMG_4350.JPG

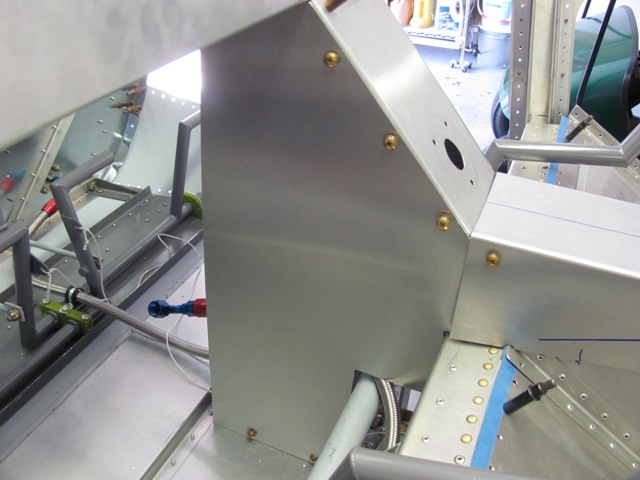

May 15, 2012 - Installed nut plates in center console to attach side fairings.

JimSnyder24/IMG_4358.JPG

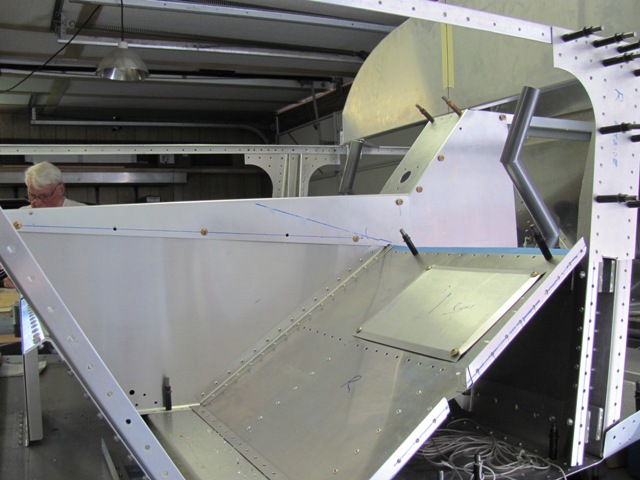

May 19, 2012 - Fastened arm rest to center seat support with nut plates and 10-32 screws.
JimSnyder24/IMG_4359.JPG

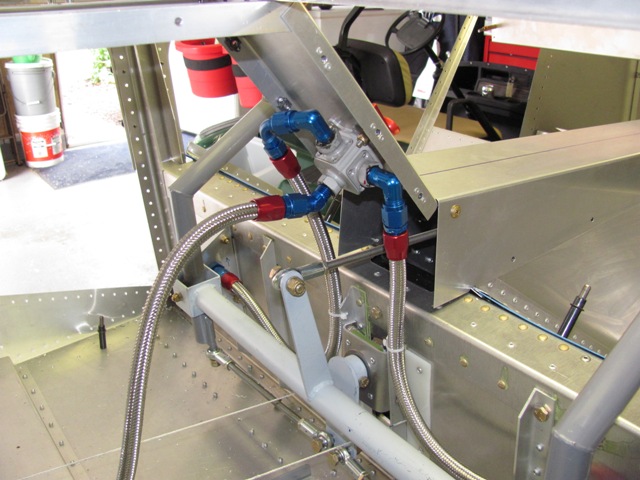

May 29, 2012 - Applied sealer/lubricate to threads and tightened fuel fittings.
JimSnyder24/IMG_4360.JPG

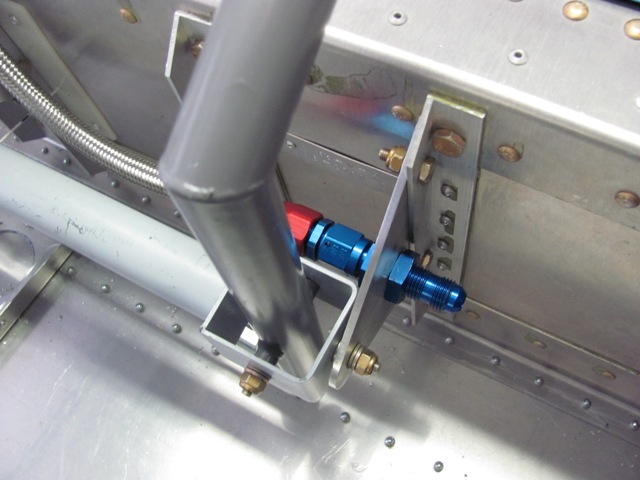

May 29, 2012 - Fuel inlet hose for left fuel tank.
JimSnyder24/IMG_4362.JPG

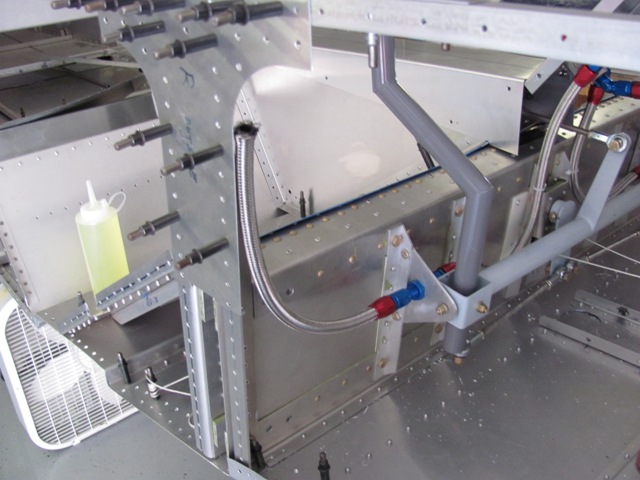

May 31, 2012 - Piece of fuel line I used to practice attaching fittings.  Attached to future tank inlet.
JimSnyder24/IMG_4363.JPG

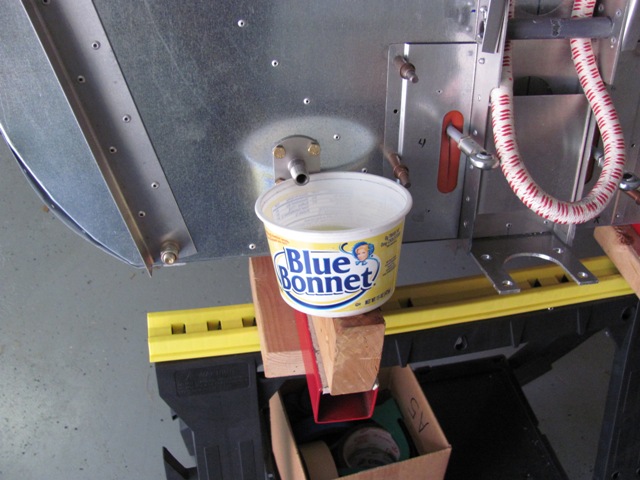

May 31, 2012 - Cup to catch fuel from gascolator firewall fitting.
JimSnyder24/IMG_4364.JPG

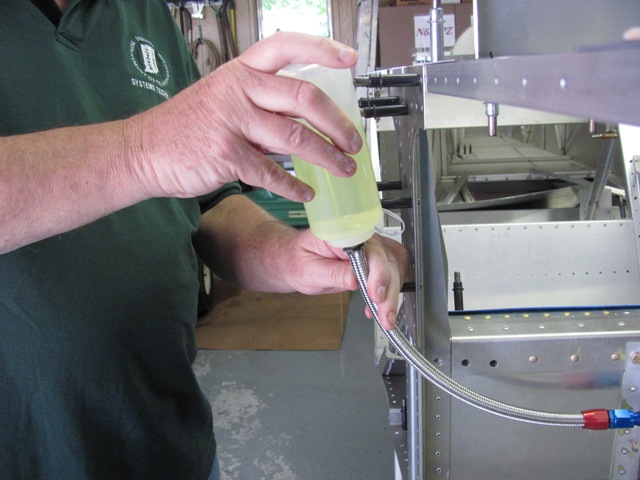

May 31, 2012 - Condiment squeeze bottle with (car) gas.  Inserted tip of squeeze bottle into test fuel line to simulate fuel tank.  Tested fuel flow and fuel selector for both sides.  No leaks.
