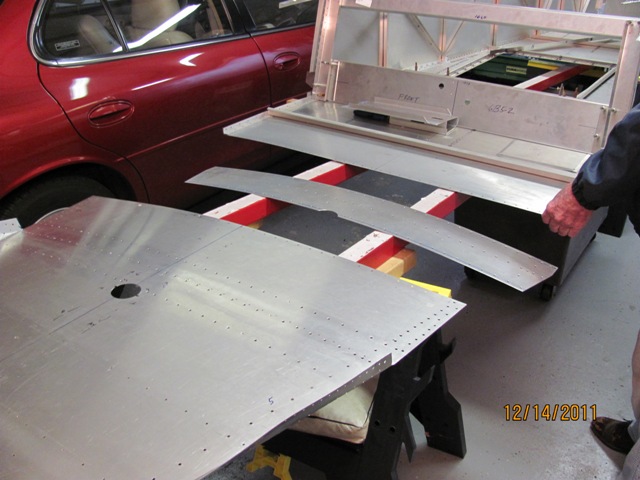

Dec 14, 2011 - Disassembled front fuselage for deburring and clean up prior to riveting.
JimSnyder21/IMG_4117.JPG

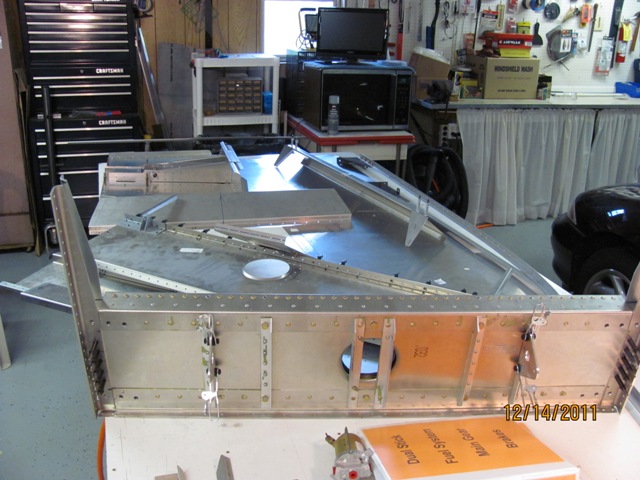

Dec 14, 2011 - The center section and other components removed.
JimSnyder21/IMG_4118.JPG

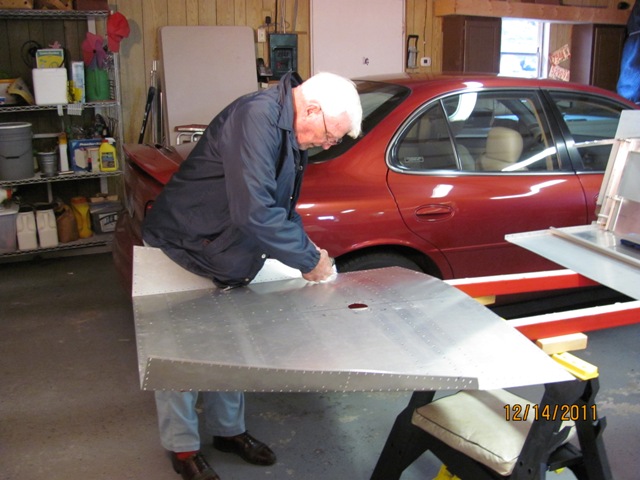

Dec 14, 2011 - Clarence Heathco helping with deburring.
JimSnyder21/IMG_4138.JPG

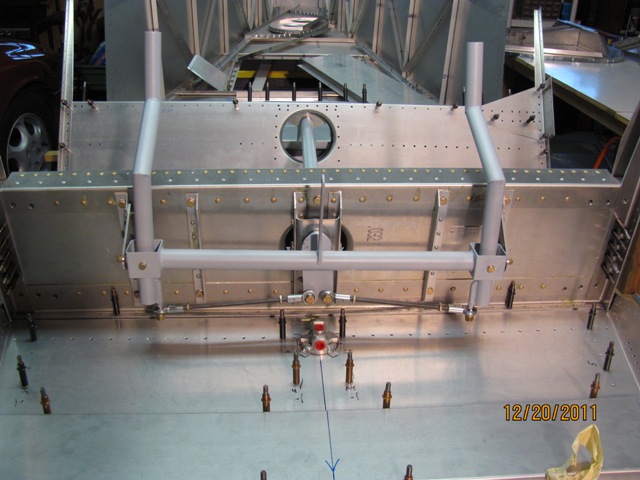

Dec 20, 2011 - Control stick components attached to Center Section,
JimSnyder21/IMG_4140.JPG

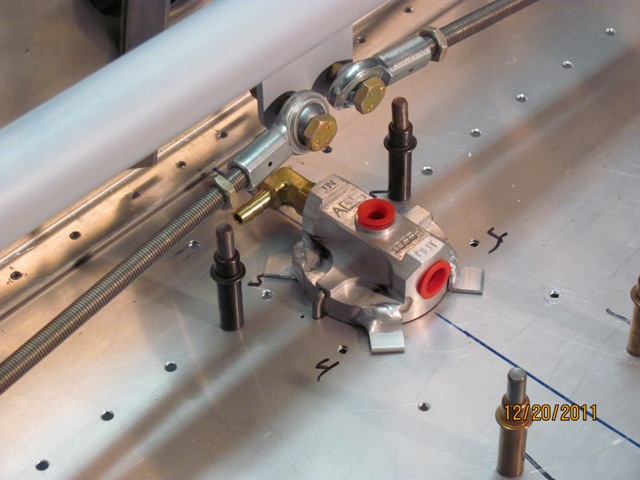

Dec 20, 2011 - Linkage loosely attached to check for clearance of gasolator.  The location was pre-cut by Zenith, prior to dual stick option.
JimSnyder21/IMG_4158.JPG

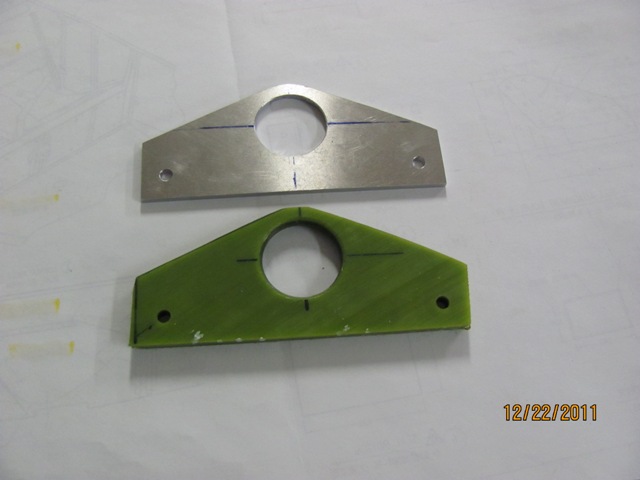

Dec 22, 2011 - Fabricated nylon bearing for the torque tube rear bearing.  Made similar for front bearing.  These are not called for on the plans, but I added to increase durability of the bearings and torque tube.
JimSnyder21/IMG_4162.JPG

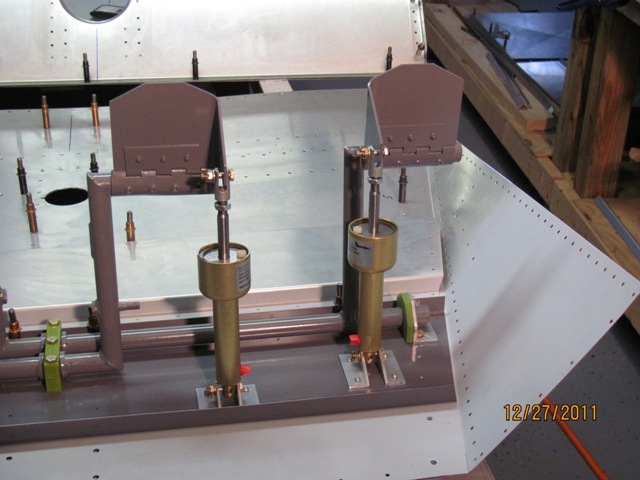

Dec 27, 2011 - Installed rudder pedals and brake cylinders.
JimSnyder21/IMG_4166.JPG

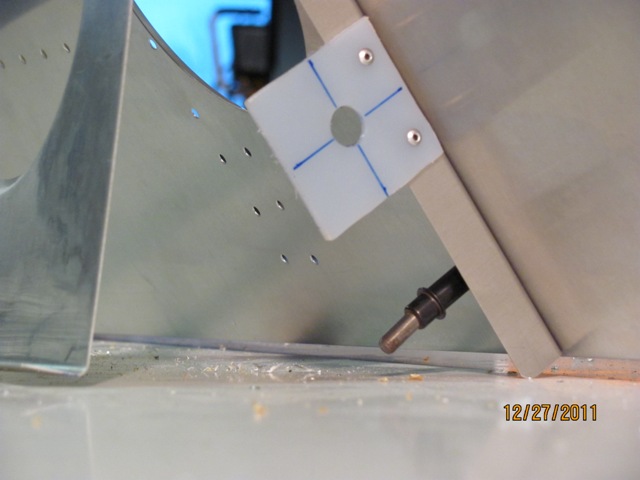

Dec 27, 2011 - Added nylon bearing for aileron balance cable behind seat back support..
JimSnyder21/IMG_4177.JPG

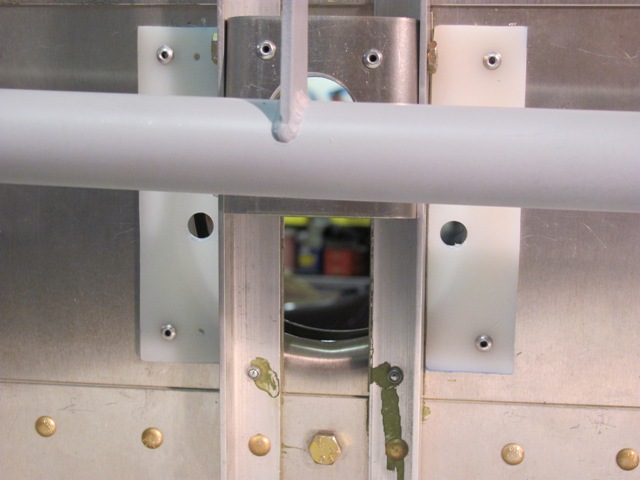

Dec 31, 2011 - Fabricated, drilled, & riveted fairleads for rudder cables to center spar.
JimSnyder21/IMG_4178.JPG

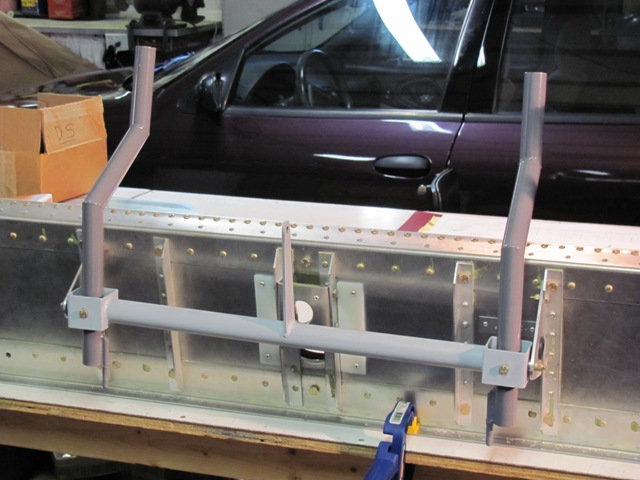

Dec 31, 2011 - Bolted flight control sticks to control cross tube.
JimSnyder21/IMG_4179.JPG

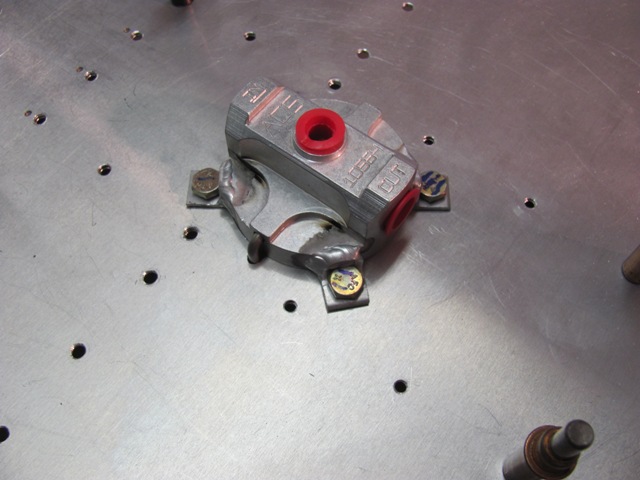

Dec 31, 2011 - Drilled and bolted gasolator to bottom skin.  Plans call for rivets here, but I wanted to be able to remove if necessary.
