HCAANewsletter/IMG_6318.JPG

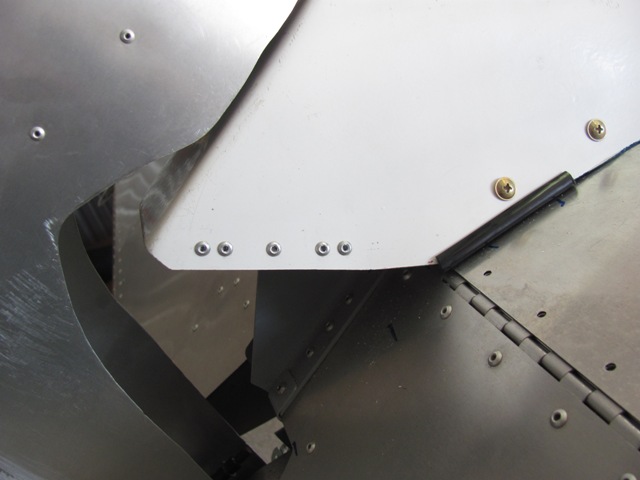

Oct 4, 2019 - Riverted the reinforcing L-angles to the saddle with A5 rivets.

HCAANewsletter/IMG_6319.JPG

 Oct 4, 2019 - Installed fairiing on lower section of rudder.


HCAANewsletter/IMG_6320.JPG

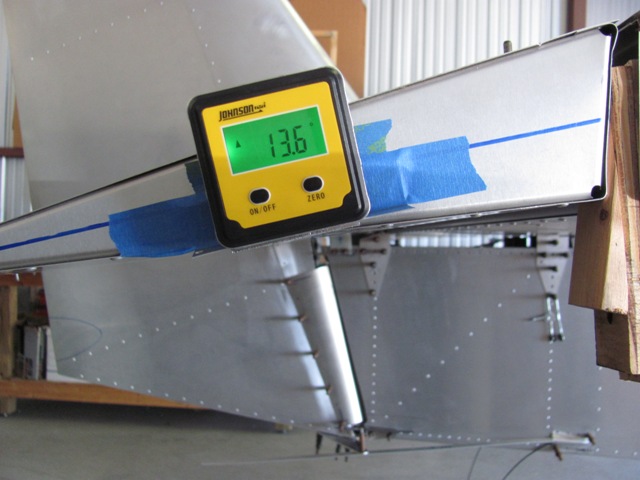

 Oct 4, 2019 - Plans call for down elevator limits between 12 to 15 degrees.

HCAANewsletter/IMG_6322.JPG

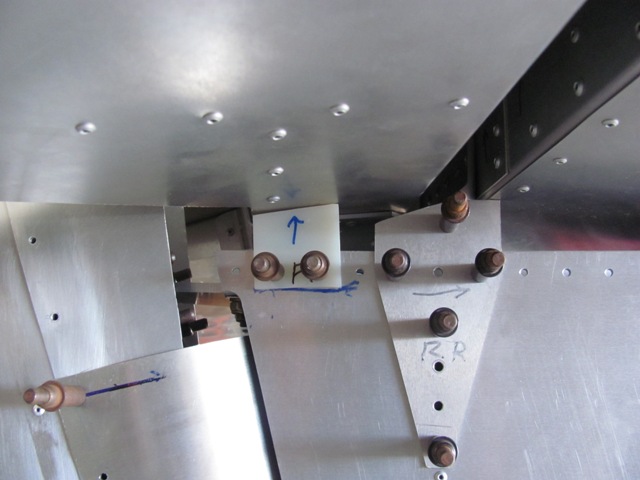

 Oct 4, 2019 - Installed 1/8 inch nylon material as the elevator hard stops.

HCAANewsletter/IMG_6323.JPG

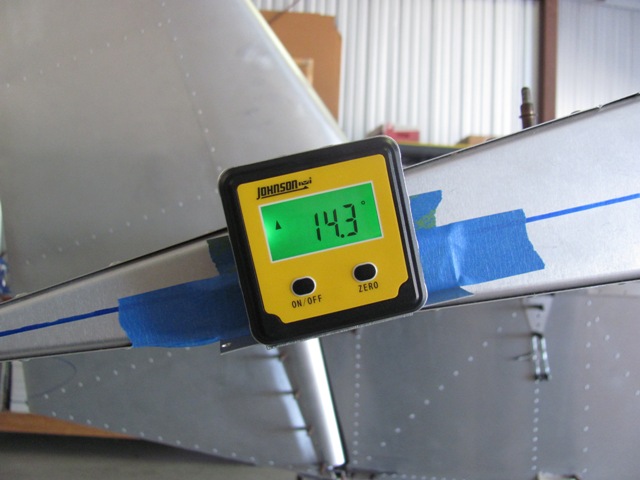

 Oct 4, 2019 - After installation of the hard stops, the down deflection
settled in at 14.3 degrees.

HCAANewsletter/IMG_6330.JPG

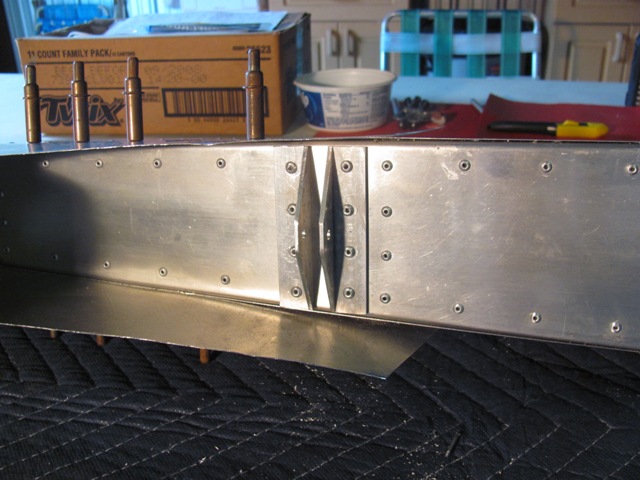

 Oct 15, 2019 - Removed the rudder.  Ready for final cleanup.  Riveted
the top support bracket with A5 rivets.

HCAANewsletter/IMG_6331.JPG

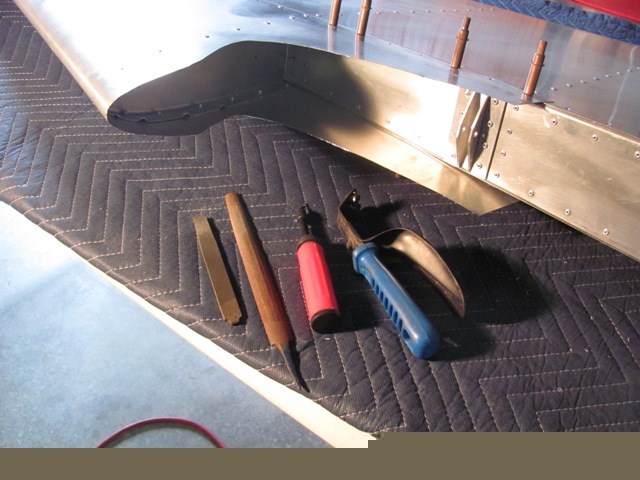

 Oct 15, 2019 - Filed and smoothed all the trimmed edges.

HCAANewsletter/IMG_6332.JPG

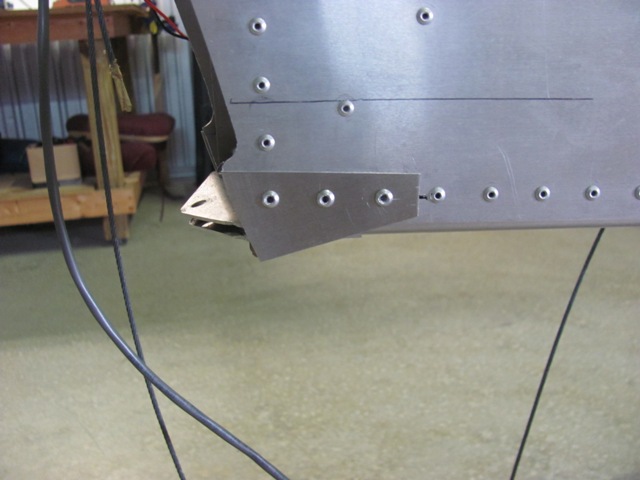

 Oct 15, 2019 - Riveted the rudder stops.

HCAANewsletter/IMG_6335.JPG

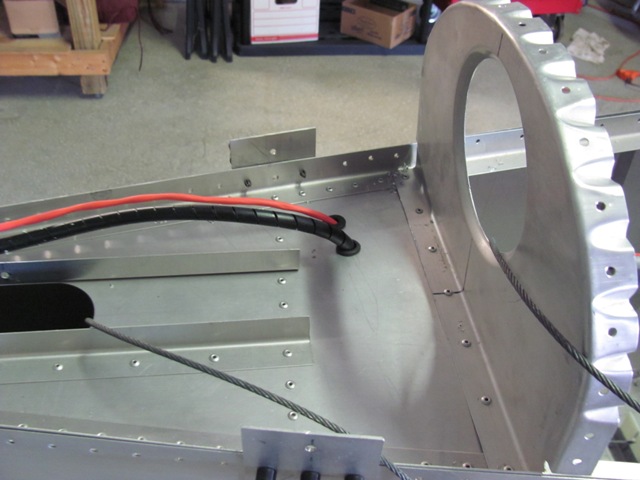

 Oct 19, 2019 - Rerouted wiring for elevator trim and tail light to eliminate
interference with elevator cables and horns.

HCAANewsletter/IMG_6336.JPG

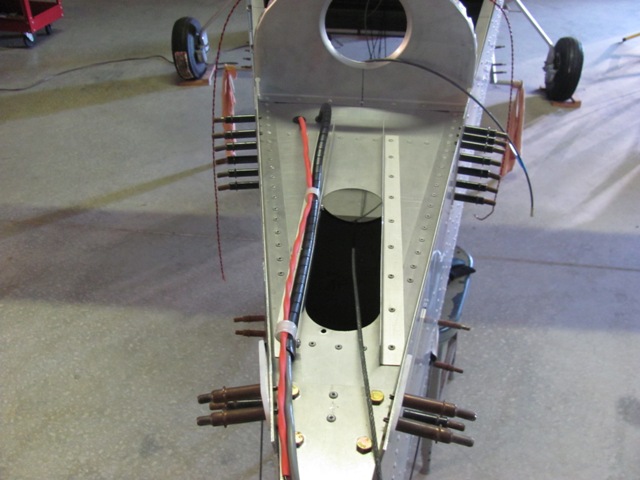

Oct 19, 2019 - Rerouted the wiring down the left side channel with wire clips.

HCAANewsletter/IMG_6337.JPG

 Oct 19, 2019 - Also, riveted the lower elevator stops in place.

HCAANewsletter/IMG_6340.JPG

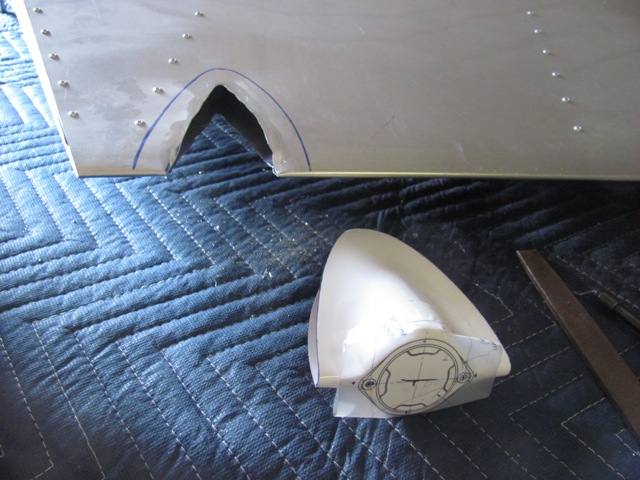

 Oct 28, 2019 - Rough cut opening in bottom of rudder to accommodate tail light.

HCAANewsletter/IMG_6341.JPG

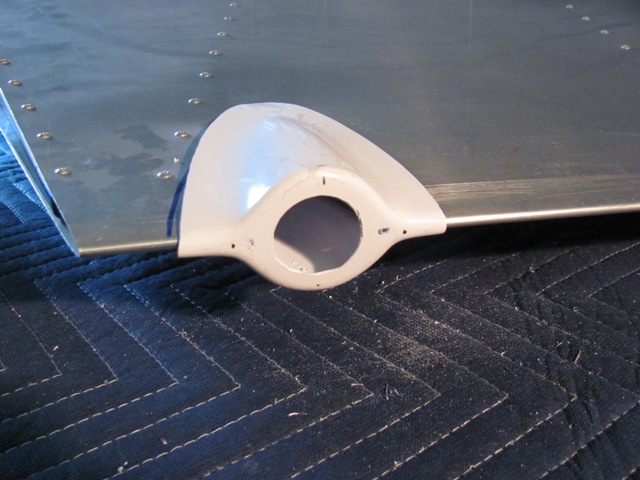

 Oct 28, 2019 - Cut 1 inch opening in molded tail bracket.

HCAANewsletter/IMG_6343.JPG

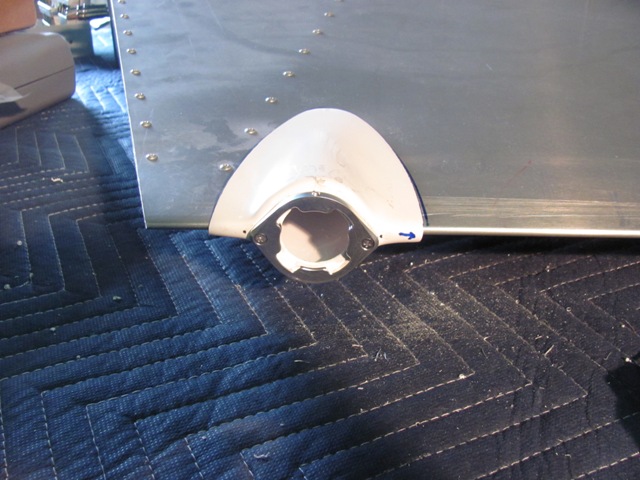

 Oct 28, 2019 - Locking ring for Tail Beacon ADS-B is screwed onto the molded bracket.

HCAANewsletter/IMG_6345.JPG

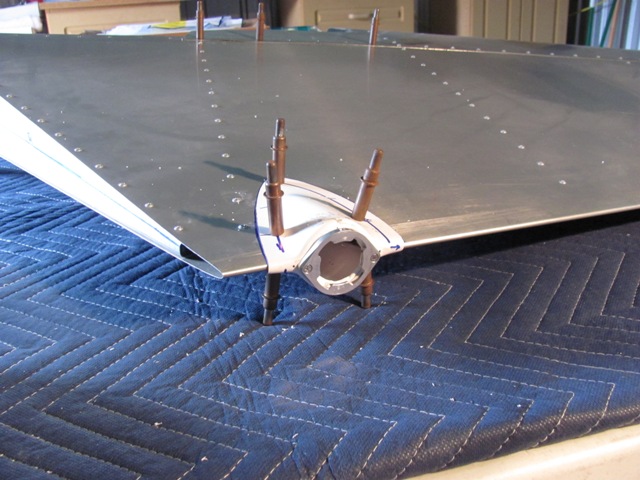

 Oct 28, 2019 - The mounting bracket billed and clecoed to the rudder.

HCAANewsletter/IMG_6346.JPG

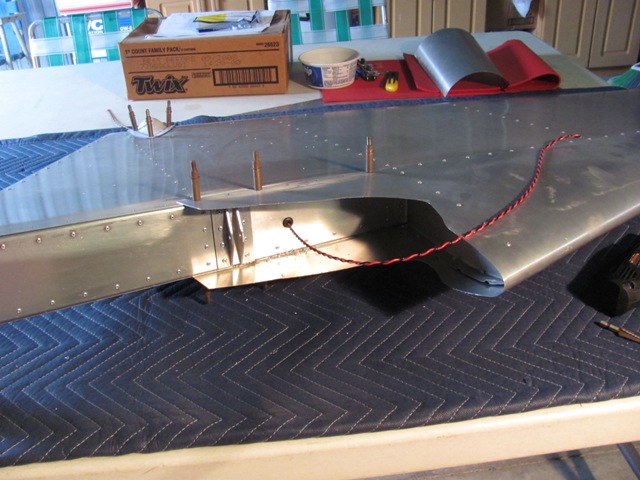

 Oct 28, 2019 - Inserted grommet and fed twisted pair wire through to
provided power to the ADS-B unit.

HCAANewsletter/IMG_6347.JPG

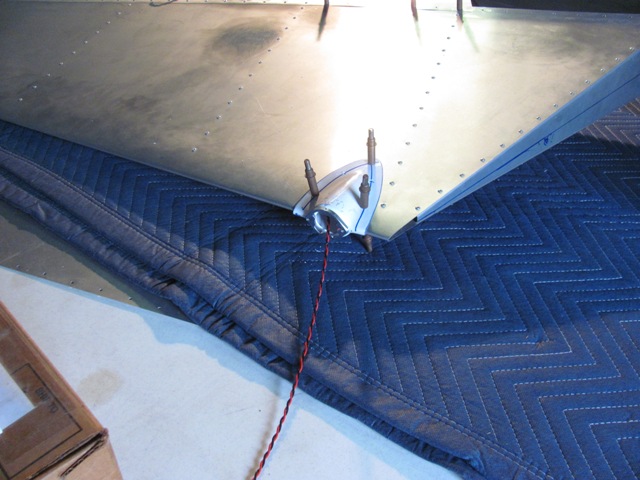

 Oct 28, 2019 - The wire came through the bracket opening on the first try.
