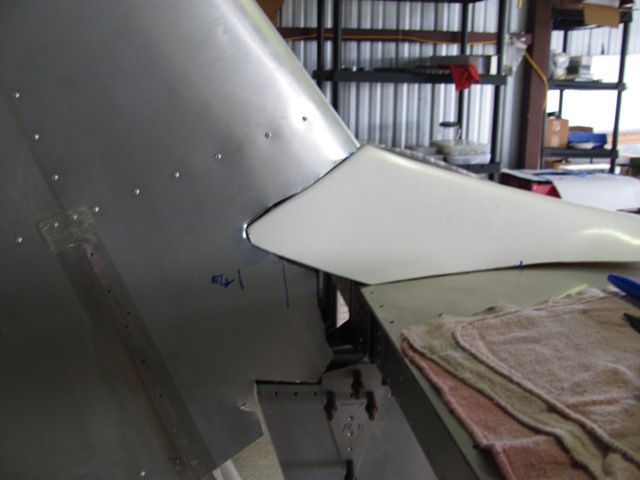

Aug 6, 2019 - Slowly trimming away more material. The 'saddle'
(as the plans call it) is getting close to fit.

HCAANewsletter/IMG_6215.JPG

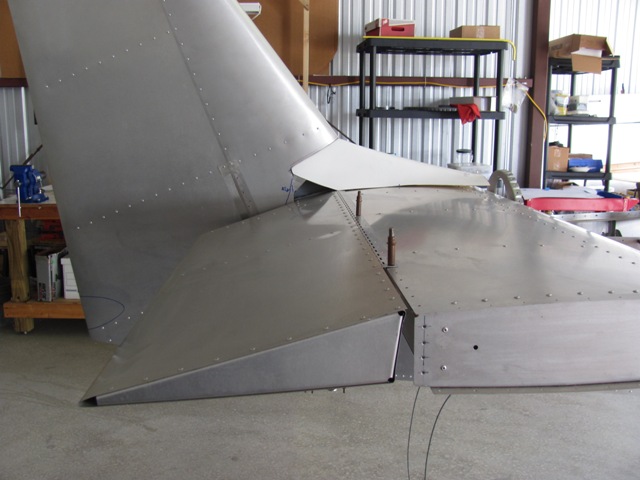

 Aug 6, 2019 - Trimmed away enough material to enable the elevator to be attached.

HCAANewsletter/IMG_6218.JPG

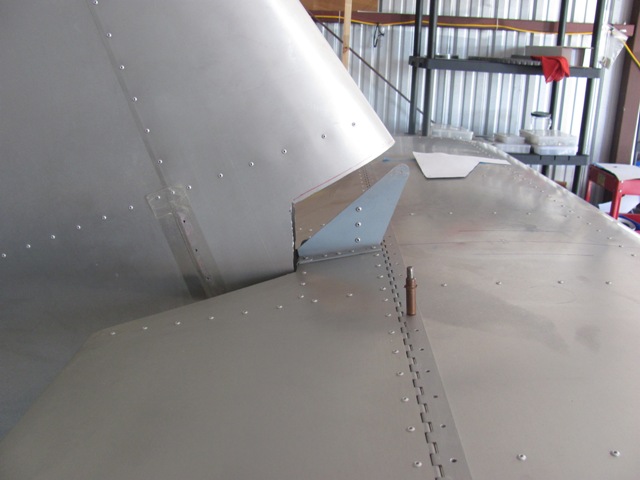

 Aug 7, 2019 - Removed elevator, and trimmed another 5mm from the rudder.
Reinstalled elevator.  Not only does rudder need trimmed to clear the saddle,
but must be cut back to clear elevator when rudder swings.

HCAANewsletter/IMG_6219.JPG

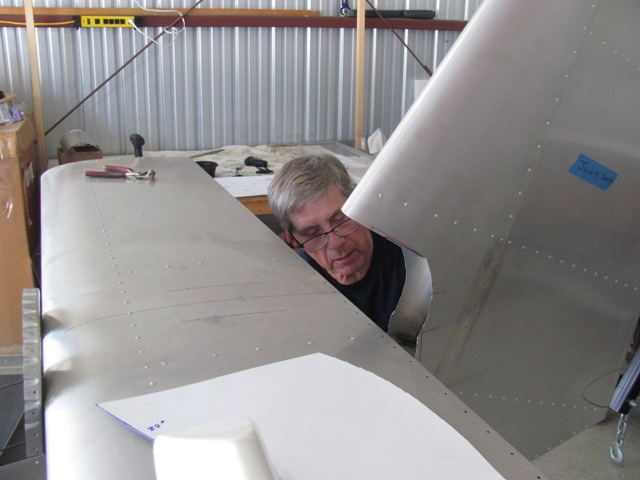

 Aug 9, 2019 - Gary Reynolds lending his sheet metal expertise to the
rudder trimming process.  We (Gary) has spent several hours and made
 several cuts to gradually shape the cutaway.

HCAANewsletter/IMG_6223.JPG

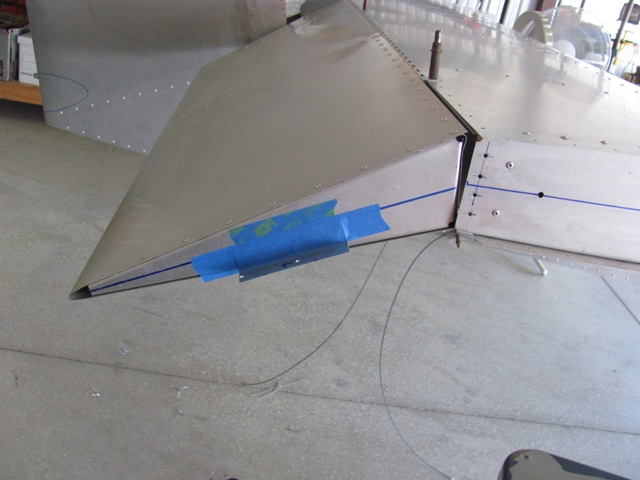

Aug 12, 2019 - Taped a piece L-angle to the level line of the elevator.

HCAANewsletter/IMG_6225.JPG

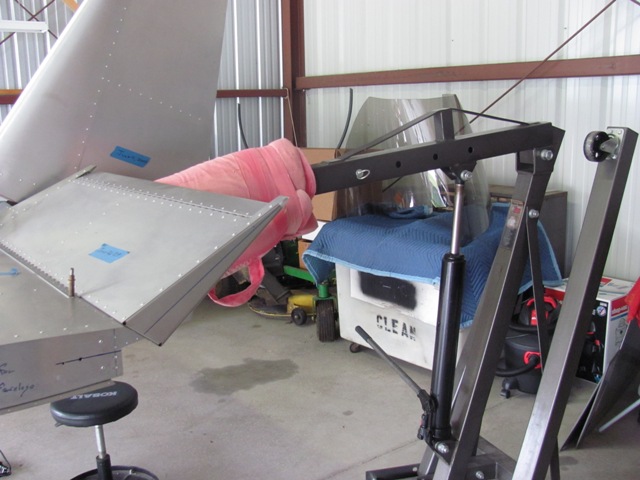

 Aug 12, 2019 - Using engine hoist to lift the elevator.

HCAANewsletter/IMG_6226.JPG

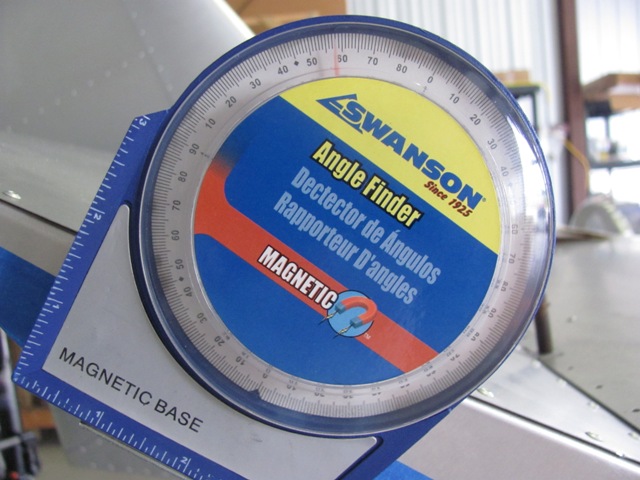

 Aug 12, 2019 - Angle finder attached to the L-angle on the elevator,
Indicates 32 degrees up angle.

HCAANewsletter/IMG_6227.JPG

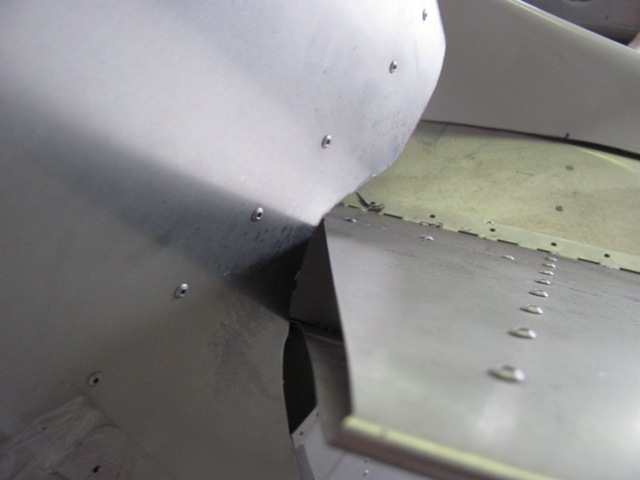

Aug 12, 2019 - With the elevator up at 32 degrees, the right side of the
rudder is now trimmed enough to now contact.  Final trimming is needed.

HCAANewsletter/IMG_6229.JPG

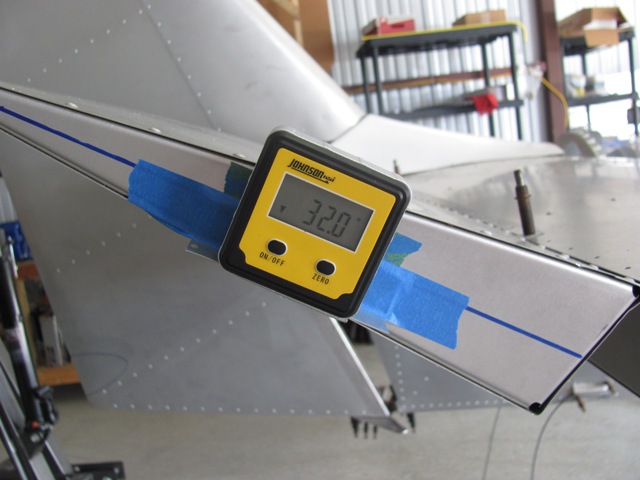

Aug 15, 2019 - New digital level to give more accurate reading.

HCAANewsletter/IMG_6230.JPG

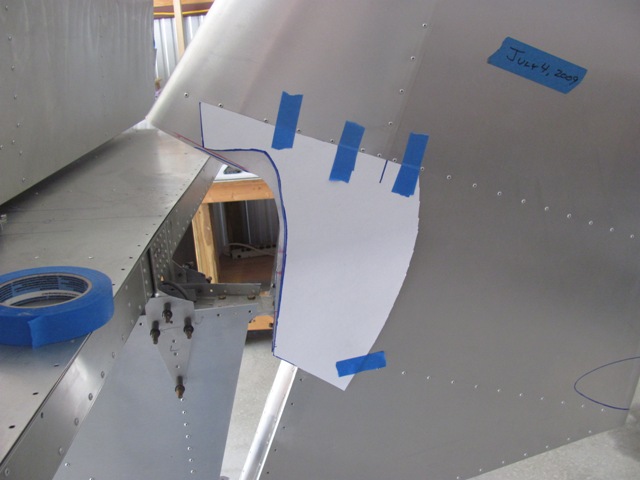

 Aug 15, 2019 - Made paper template of right side to transfer to left side.

HCAANewsletter/IMG_6231.JPG

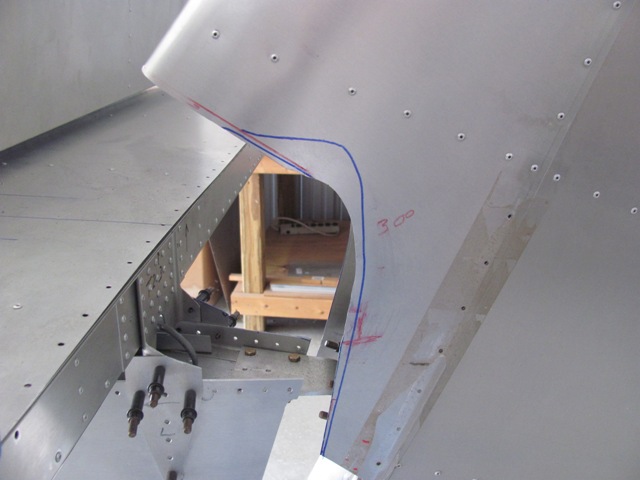

 Aug 15, 2019 - Rough cut line based on template.

HCAANewsletter/IMG_6233.JPG

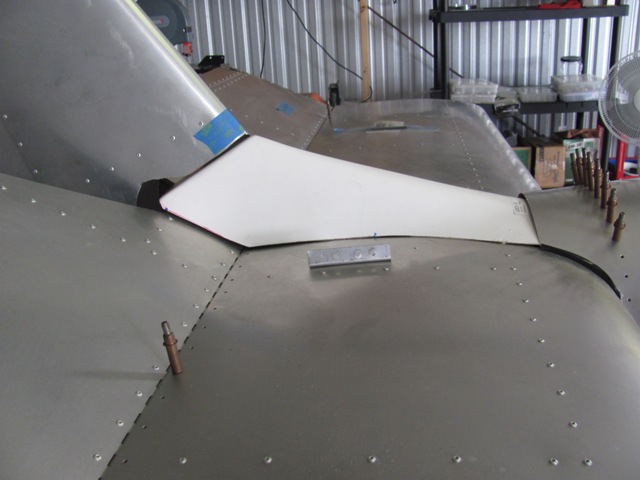

 Aug 15, 2019 - Put the turtle deck back on to check fit of fiberglass saddle.
Will need to secure it in place before make final trim to rudder.

HCAANewsletter/IMG_6238.JPG

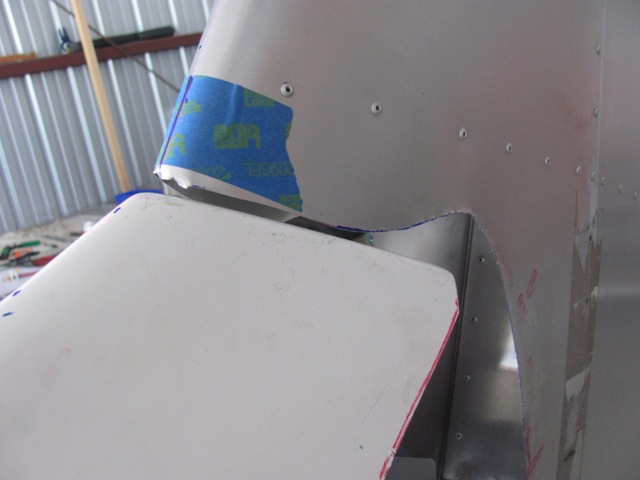

 Aug 23, 2019 - Rough clearance at this point.  Need to attach the saddle
to get an accurate measurement on final clearance.

HCAANewsletter/IMG_6239.JPG

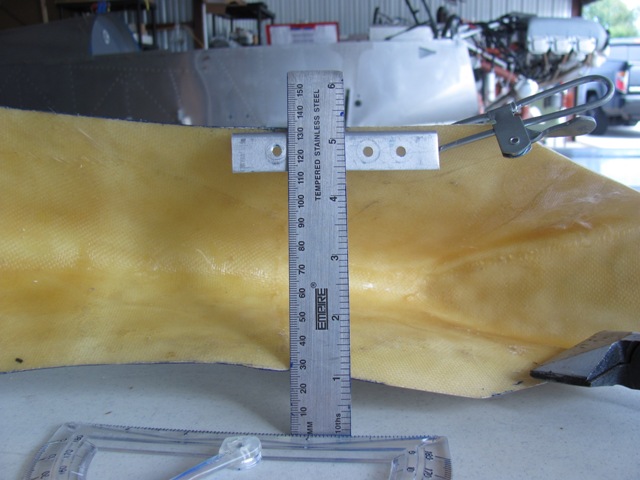

 Aug 23, 2019 - Using scrap L-angle to estimate bend angle needed to
match the side of the saddle to the surface of the horizontal stabilizer.

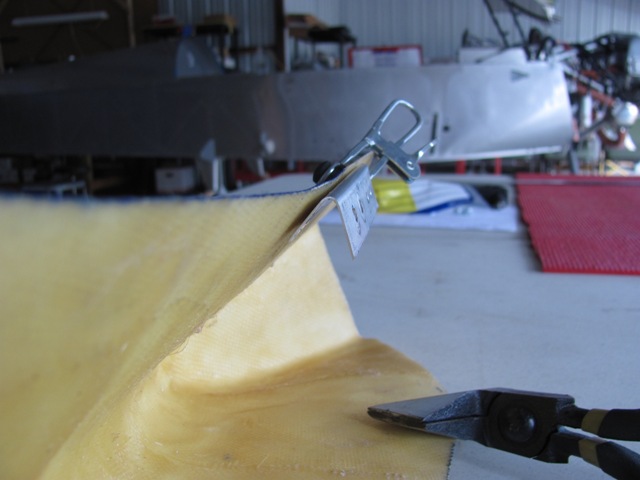

 HCAANewsletter/IMG_6240.JPG

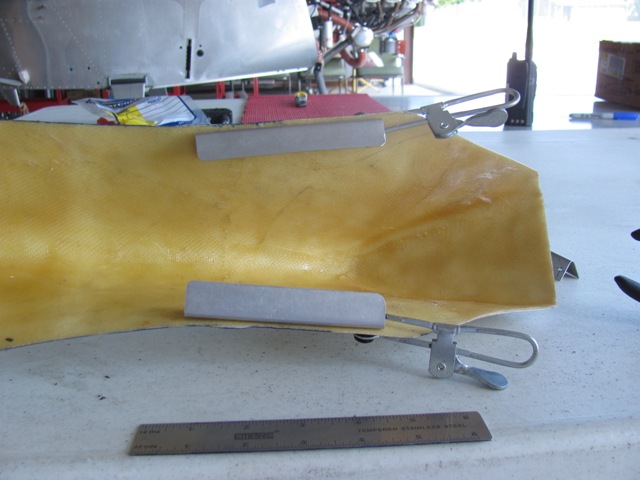

 Aug 23, 2019 - This appears to be close to needed angle.

HCAANewsletter/IMG_6242.JPG

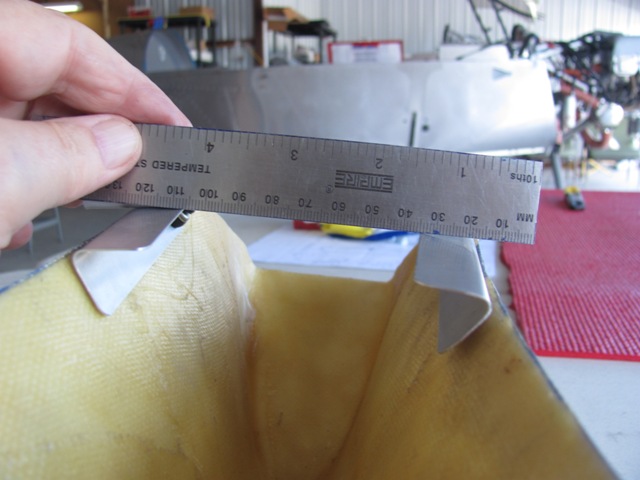

Aug 24, 2019 - The plans call for brackets of 100mm bent to 60 degrees.

HCAANewsletter/IMG_6243.JPG
 Aug 24, 2019 - Again some of the plan dimensions turn out to be "suggestions".

HCAANewsletter/IMG_6244.JPG

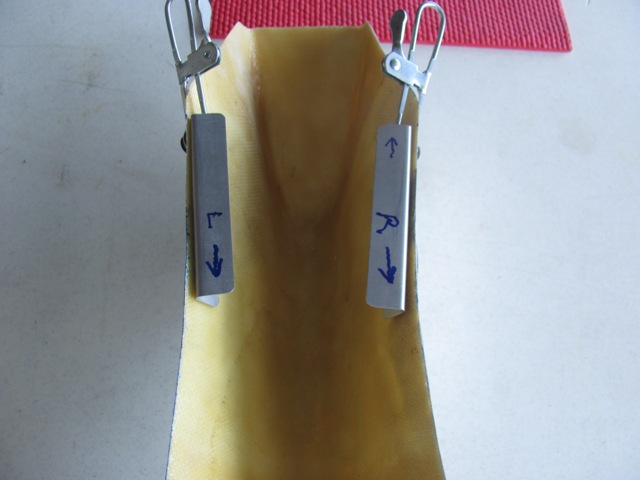

 Aug 24, 2019 - After more tweaking, the required angles are more like
55 degrees in order to get a flat surface.

HCAANewsletter/IMG_6245.JPG

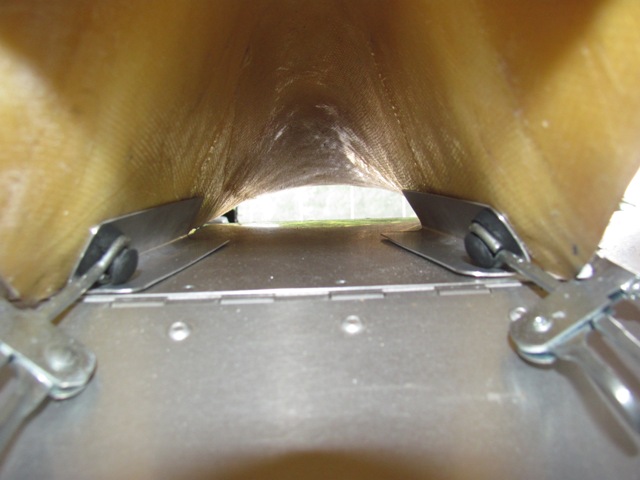

 Aug 24, 2019 - A view of the saddle resting on the horizontal stabilizer showing flat contact.

HCAANewsletter/IMG_6248.JPG
 Aug 28, 2019 - After deciding that using standard L-angle bent to 55
degrees would make riveting very difficult, I did some research online.

HCAANewsletter/IMG_6249.JPG

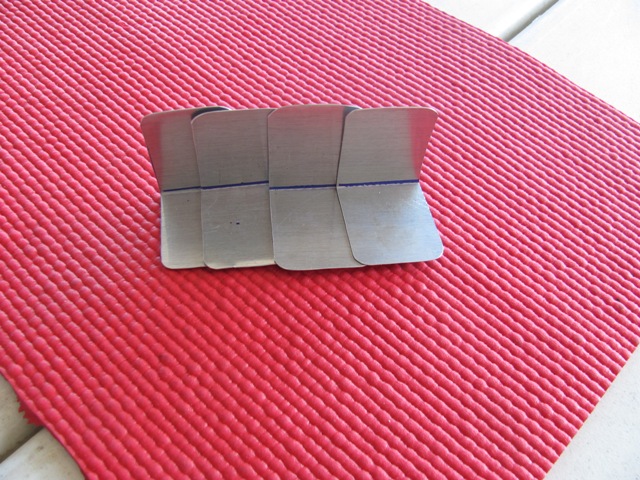

 Aug 28, 2019 - One builder made his own oversized tabs.

HCAANewsletter/IMG_6250.JPG

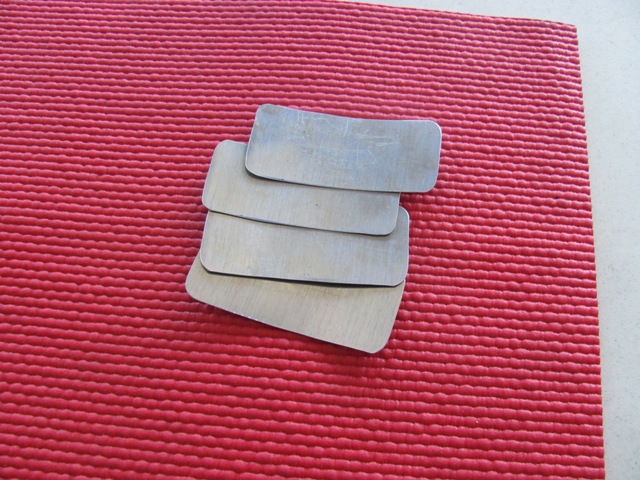

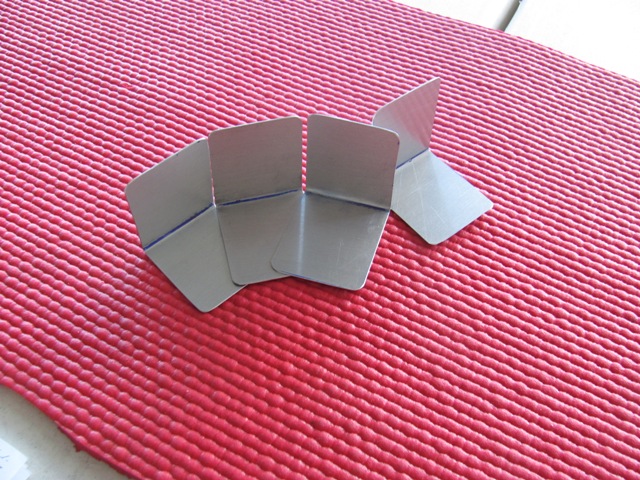

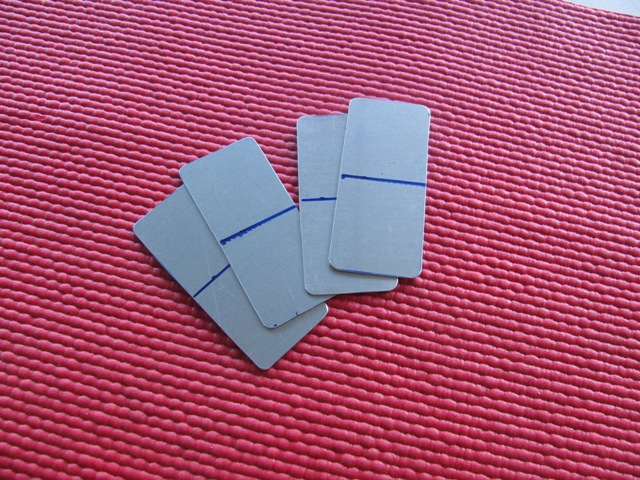

 Aug 28, 2019 - After making several sets of different sizes and material
thickness, I settled on these made from .025 inch material.

HCAANewsletter/IMG_6251.JPG
 Aug 28, 2019 - Made first 90 degree bend using vice and rod for a
1/8 radius bend.  Final bend will be made by hand when fitting the saddle.

HCAANewsletter/IMG_6252.JPG

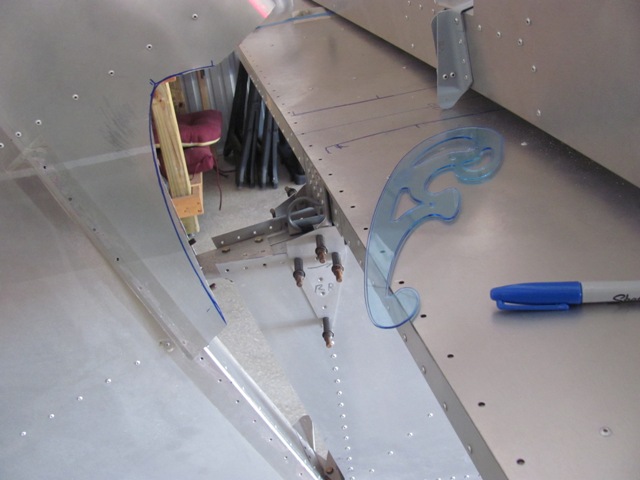

 Aug 29, 2019 - Trying to create a smoother cut line.

HCAANewsletter/IMG_6253.JPG

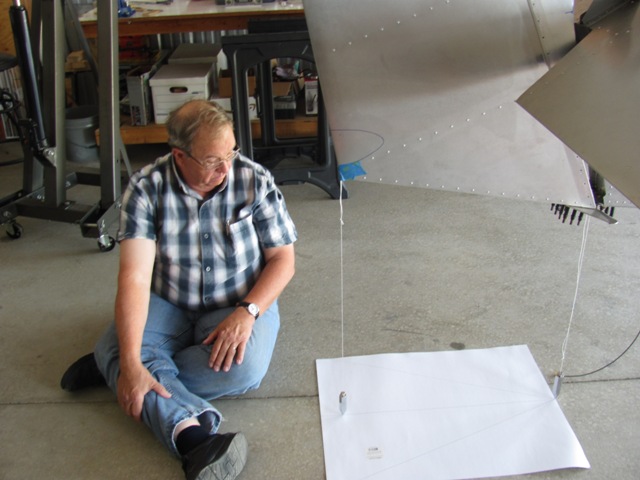

 Aug 29, 2019 - John Rothrock creating a layout to check turn
angles of the rudder.  Looking for 20-22 degrees each direction.

HCAANewsletter/IMG_6255.JPG

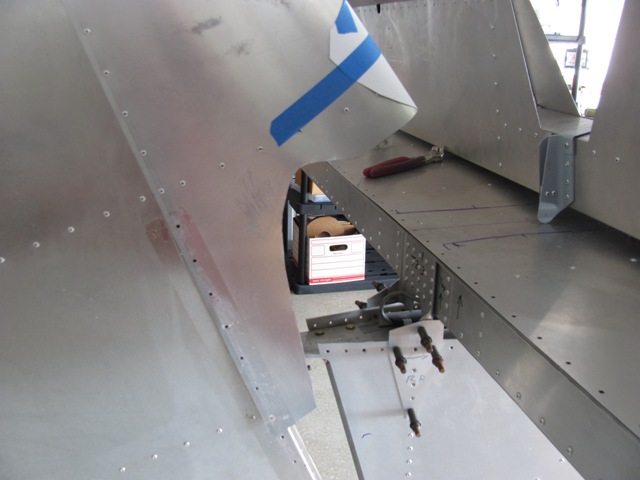

 Aug 30, 2019 - Hopefully 'final' trimming done to the right side of rudder.

HCAANewsletter/IMG_6256.JPG

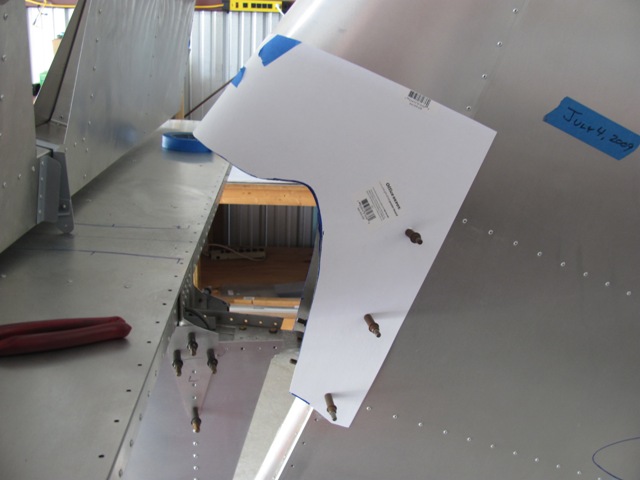

 Aug 30, 2019 - Paper template from right side of rudder to transfer to left side.

HCAANewsletter/IMG_6257.JPG

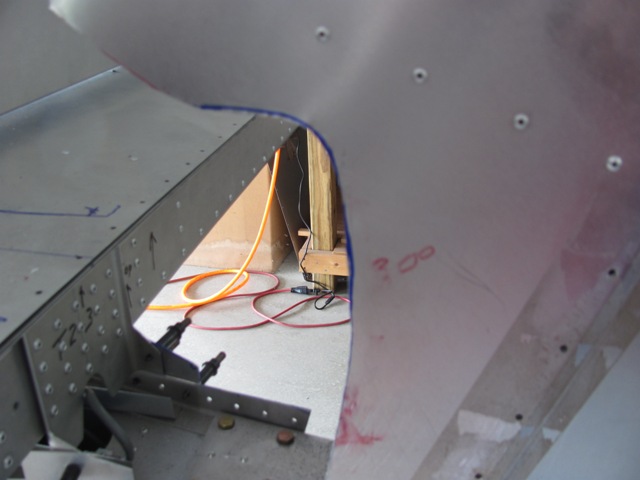

 Aug 30, 2019 - Additional trimming needed based on template.

HCAANewsletter/IMG_6258.JPG

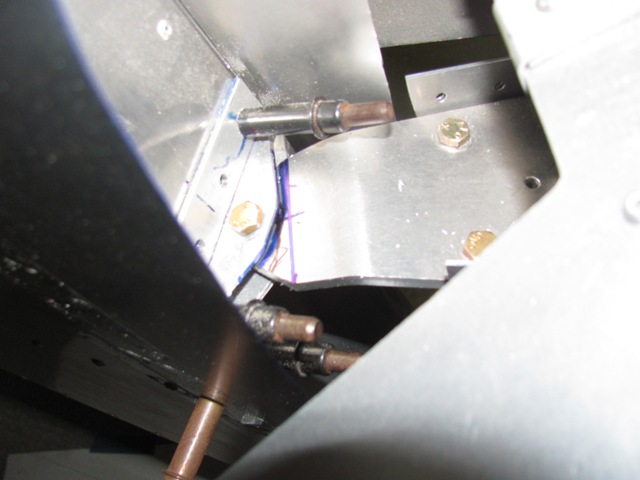

 Aug 31, 2019 - Found it necessary to round off edges of upper hinge
to allow the rudder to swing the full 21 degrees needed

HCAANewsletter/IMG_6261.JPG

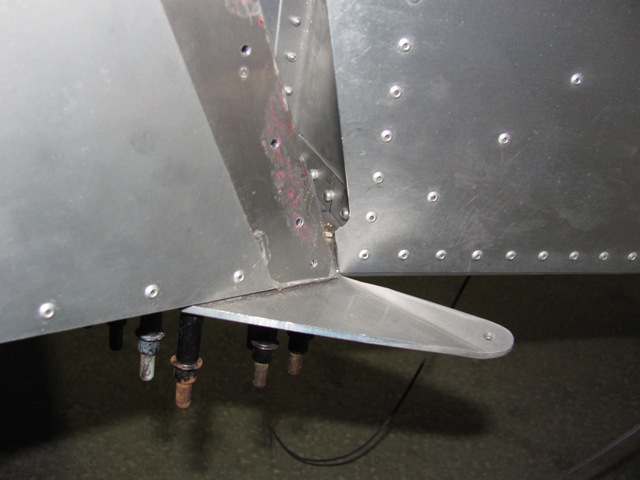

Aug 31, 2019 - Rudder now able to reach full deflection.  Rudder stops

will be riveted to the fuselage at the point of contact.
