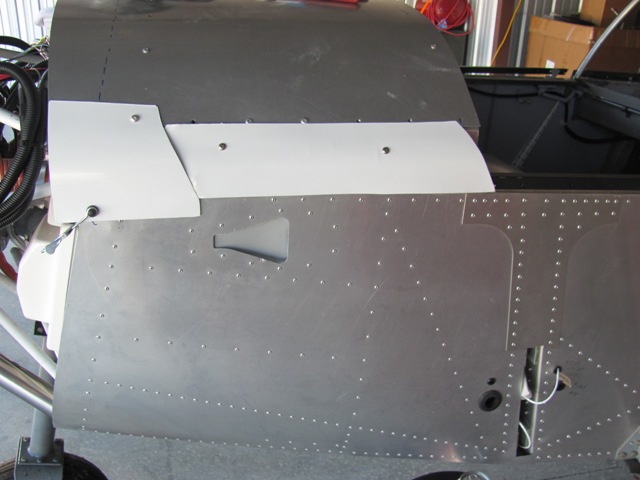

HCAANewsletter/IMG_6090.JPG
Aug 2, 2018 Obtained sample vinyl wrap from supplier.  Tested application
on protoype for the canopy arm covers.

HCAANewsletter/IMG_6100.JPG

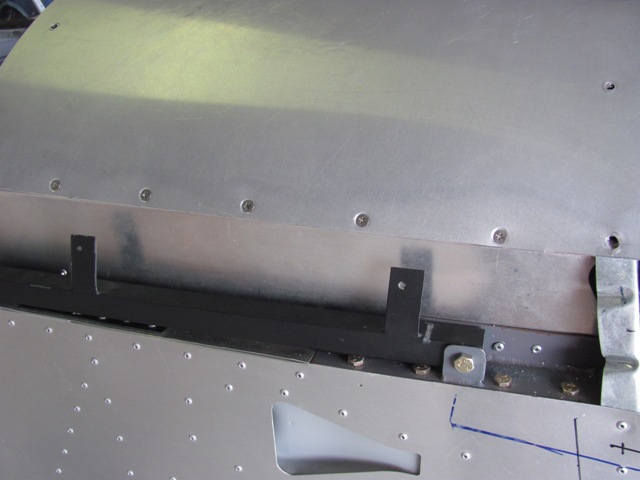

Oct 1, 2018 - Replacing truss head screws that could interfere with canopy side arm, with
countersunk flush screws.   Makes for a much cleaner operation.

HCAANewsletter/IMG_6103.JPG

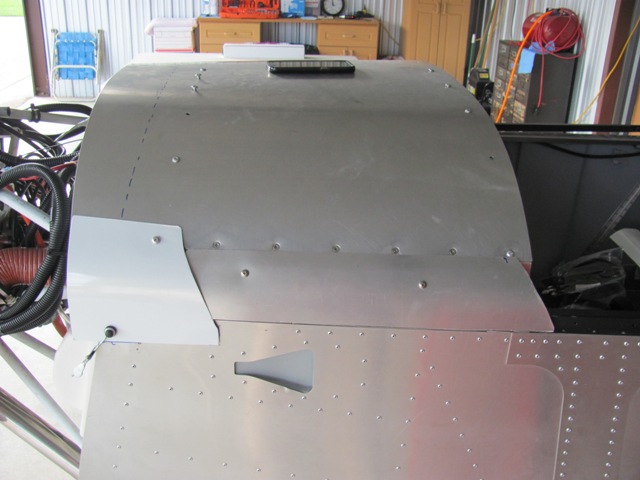

Oct 9, 2018 - Left side canopy arm cover pretty much complete.

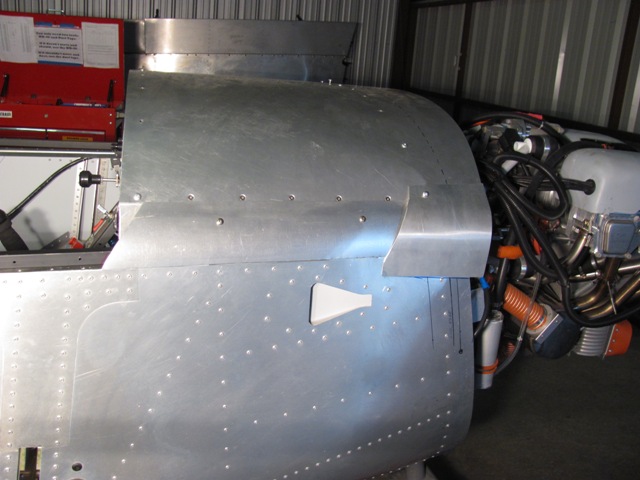

HCAANewsletter/IMG_6108.JPG
Oct 15, 2018 - Finished right side cover installation.

HCAANewsletter/IMG_6111.JPG

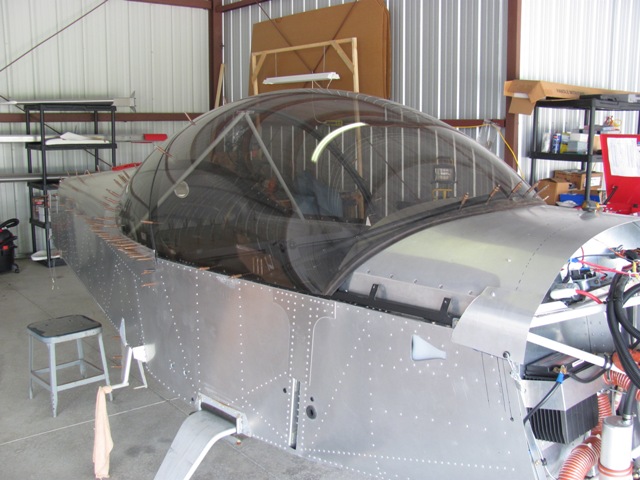

June 4, 2019 - Reinstalled front canopy with rubber trim piece.

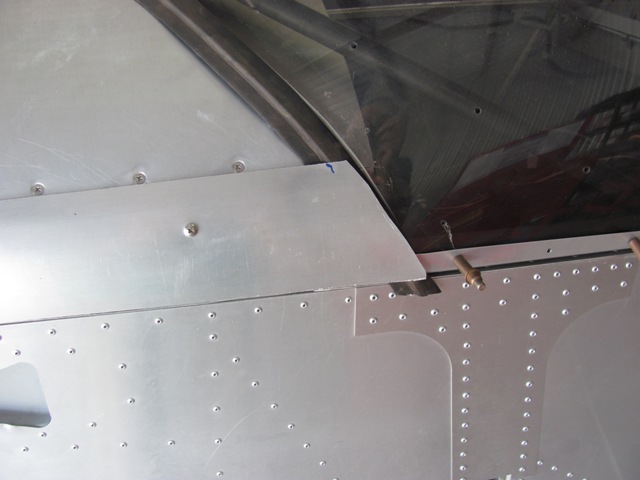

HCAANewsletter/IMG_6113.JPG
June 4, 2019 - Arm cover needs trimming.

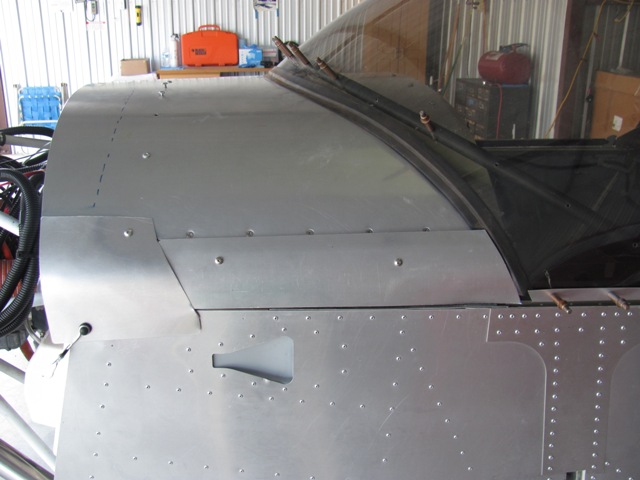

HCAANewsletter/IMG_6116.JPG
June 4, 2019 - The arm cover and 'ear' in place.

HCAANewsletter/IMG_6117.JPG

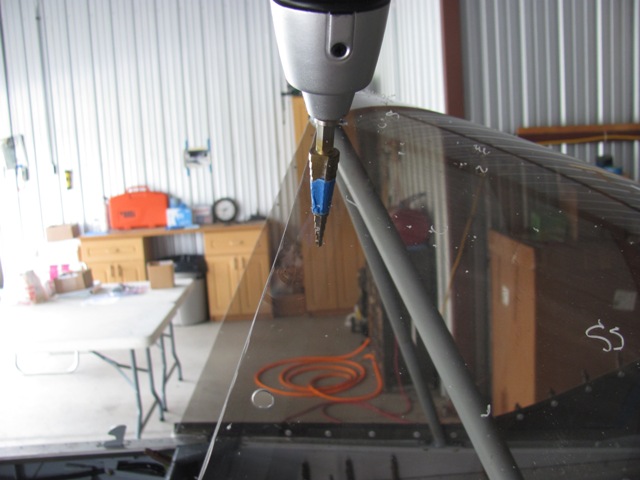

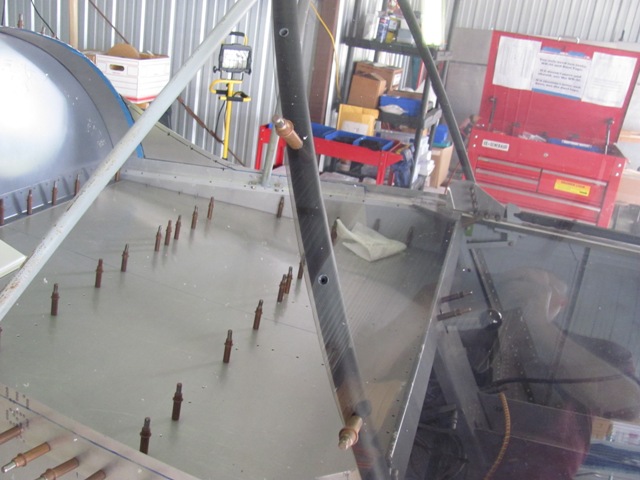

June 6, 2019 - Enlarging attachment holes in canopy,  Using step drill to cut the holes.

HCAANewsletter/IMG_6118.JPG

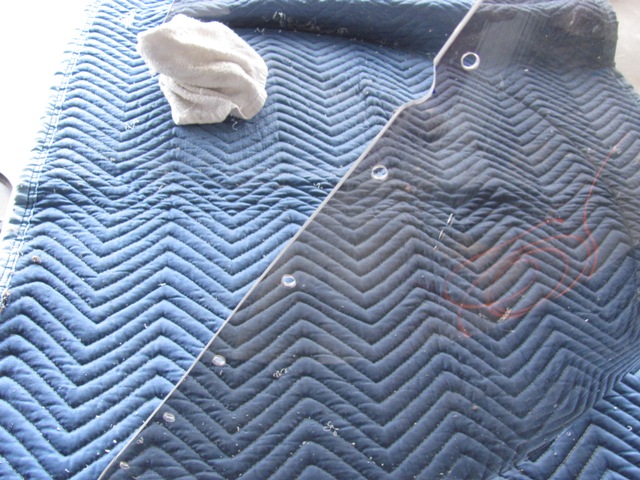

June 6, 2019 - Removed rear canopy to finish.   Plans suggest enlarging to 5/16 inch, but I
decided on 1/4 inch due to proximity to edge.

HCAANewsletter/IMG_6120.JPG
 June 8, 2019 - Enlarging screw holes in front canopy.

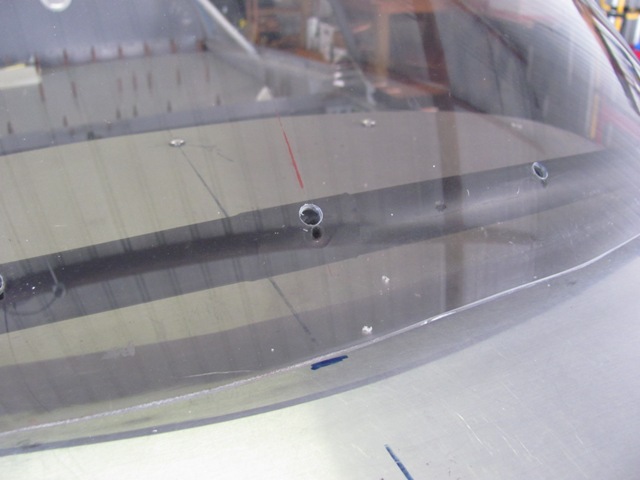

HCAANewsletter/IMG_6122.JPG
June 8, 2019 - Even after enlarging, screw locations don't match.
The added thickness caused by the shrink wrap is just enough to be a problem.

HCAANewsletter/IMG_6126.JPG

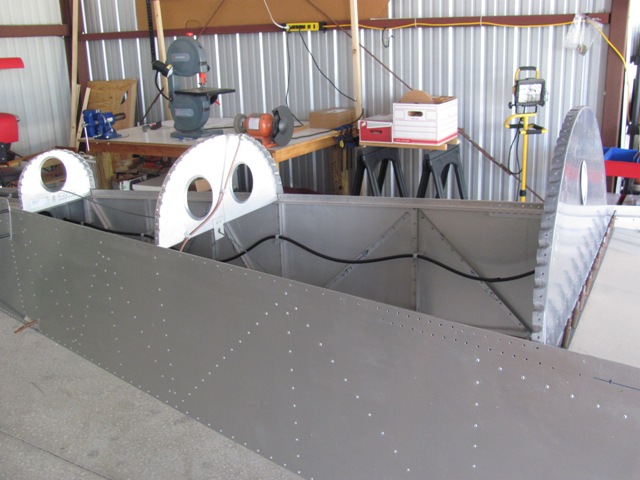

June 11, 2019 - Removed turtle deck to gain access to inside of fuselage.

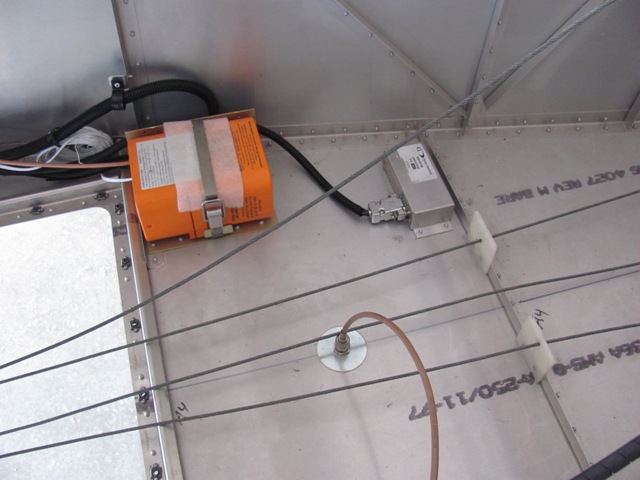

HCAANewsletter/IMG_6127.JPG
June 11, 2019 - This is the original Ameri-King ELT that is no longer certified.

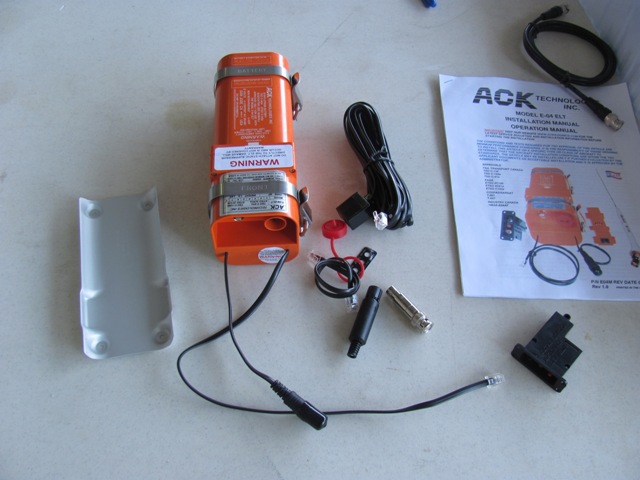

HCAANewsletter/IMG_6129.JPG
June 11, 2019 - This is the new ACK E-04 ELT to be installed.

HCAANewsletter/IMG_6130.JPG

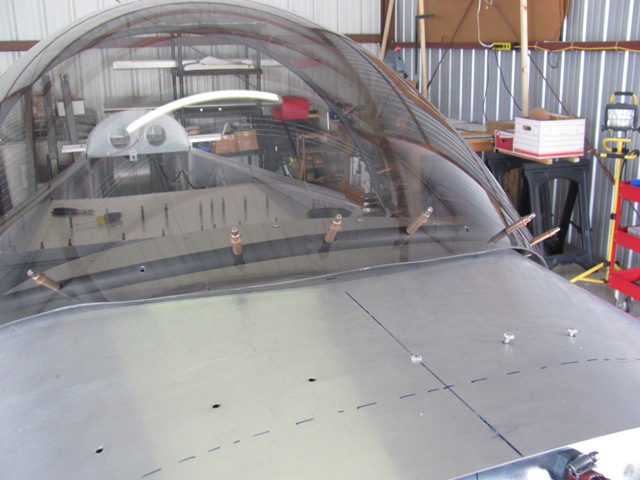

June 12, 2019 - I fixed the front frame by removing the double thickness in the center.
Also, found that works by setting nose first, then working back.

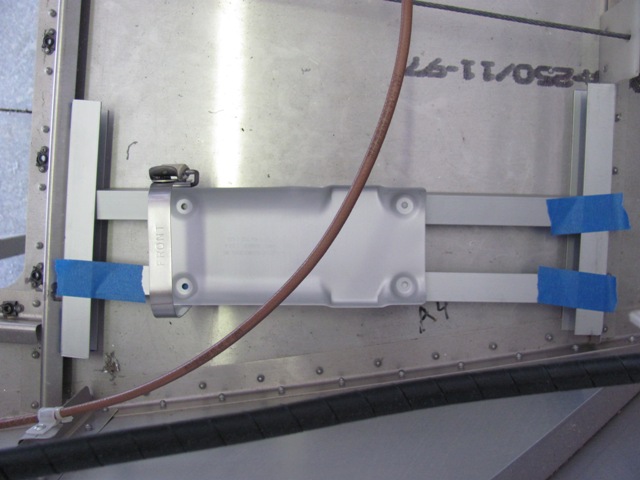

HCAANewsletter/IMG_6141.JPG
June 14, 2019 - Using .063 L-angle to build support structure for the ELT mounting plate.  ELT mounting
plate will screw to the longitudinal supports.  This rough design will be refined for permanent installation.

HCAANewsletter/IMG_6143.JPG
J

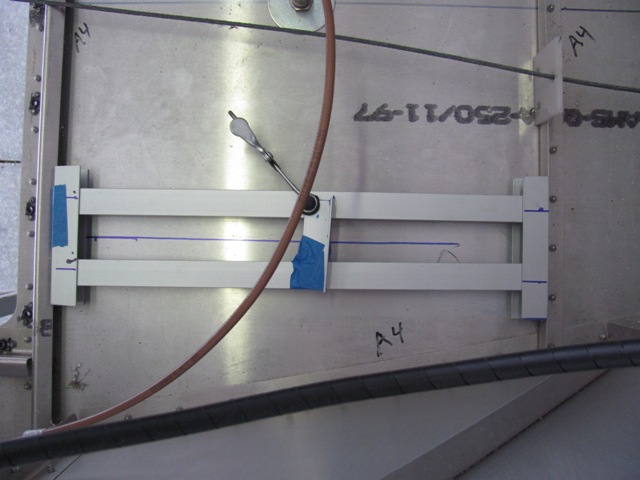

June 21, 2019 - Trimmed the ELT support components to final size, and established proper location and alignment.

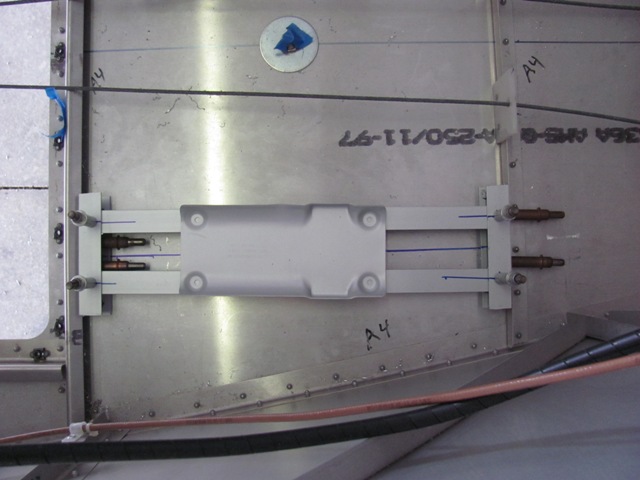

HCAANewsletter/IMG_6153.JPG
June 21, 2019 - The ELT support frame fabrication completed.  Now to disassemble
and rivet all in place.

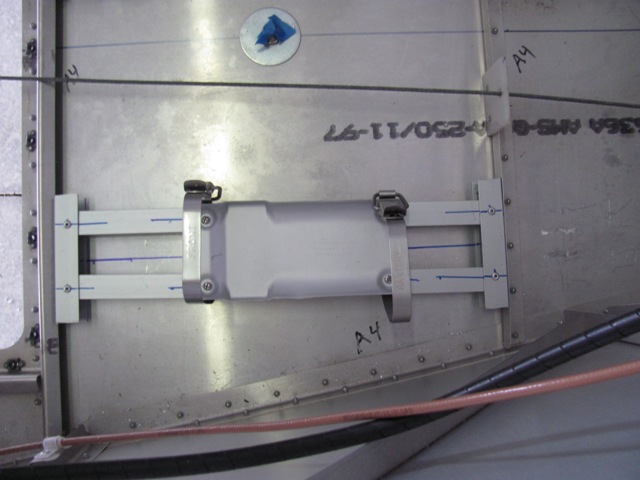

HCAANewsletter/IMG_6156.JPG
Jun 23, 2019 - The completed LET support structure riveted in place.  Super strong.

HCAANewsletter/IMG_6157.JPG

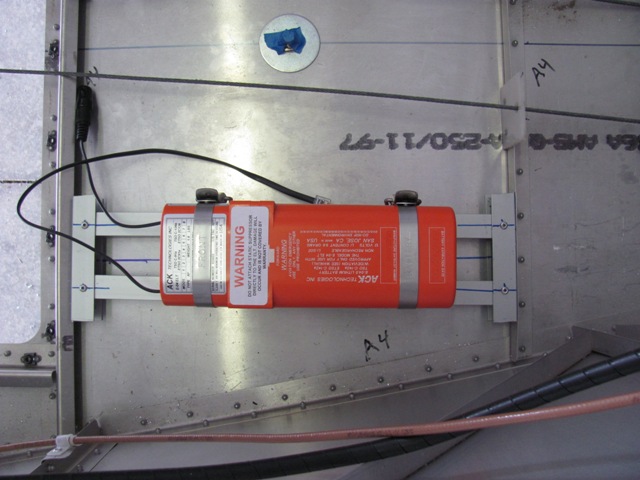

June 23, 2019 - The new ACK E-04 ELT mounted, but not activated.
