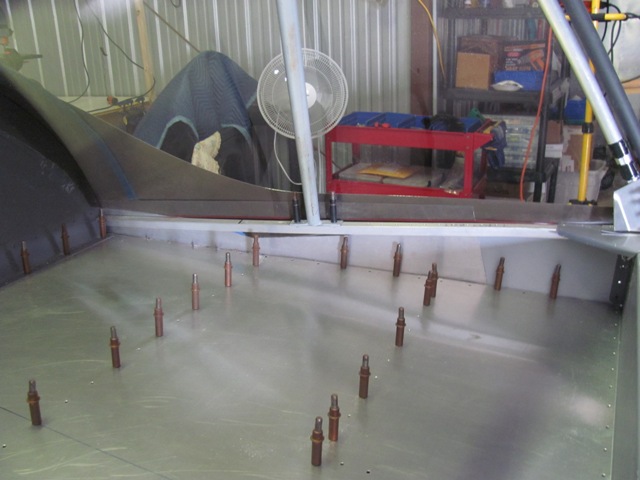

May 4, 2018 - After long hiatus, finally back to work on the rear canopy.  Marked all the edges for final trim.

The sides will be brought up above the longerons.

HCAANewsletter/IMG_6017.JPG

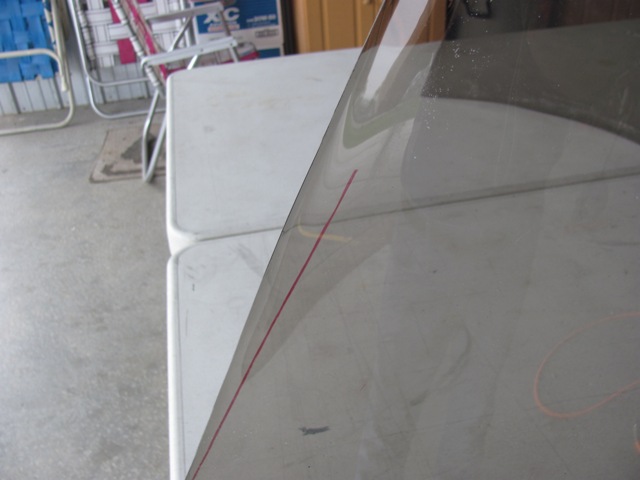

May 5, 2018 - One of the red line marks for trimming.

HCAANewsletter/IMG_6019.JPG

June 2, 2018 - Ordered new sheets of aluminum from Aircraft Spruce to fabricate new rear canopy trim pieces.

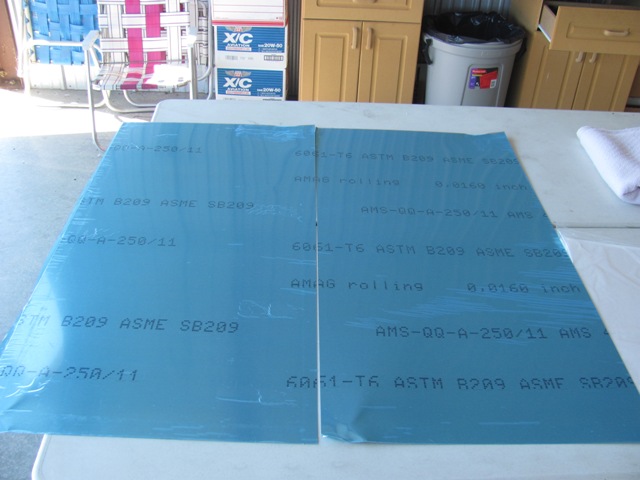

Ordered two sheets 6060-T6,  24 inch X 48 inch, .016 inch thick.  Second sheet is backup for mistakes.

HCAANewsletter/IMG_6026.JPG

 Jun 2, 2018 - Using poster paper to make templates for test fits.

A 36 inch long piece should be a good start.

HCAANewsletter/IMG_6028.JPG

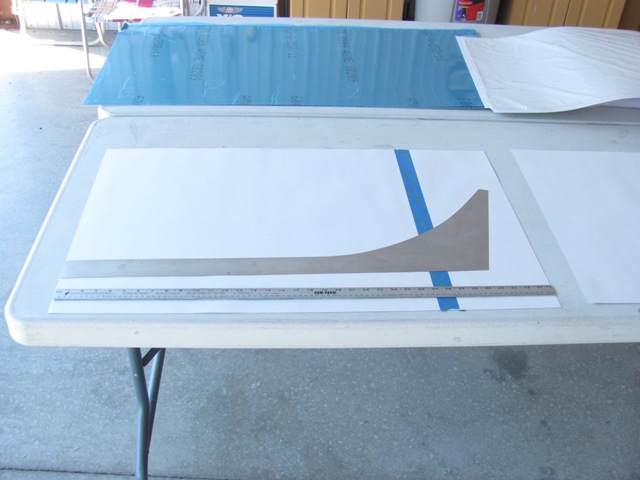

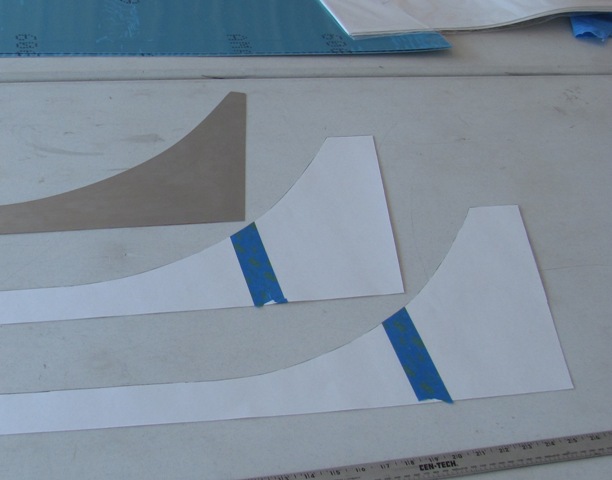

Jun 4, 2018 - Note the new templates have a wider 'head' than the original trim pieces.

HCAANewsletter/IMG_6031.JPG

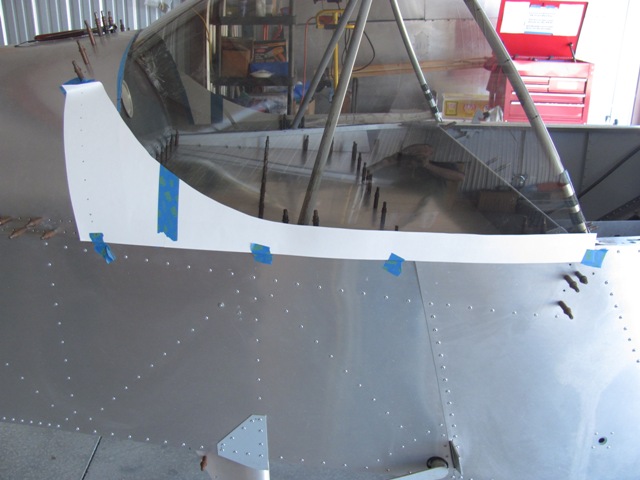

Jun 4, 2018 = Template on the right side.   The wider 'head' allows using the exiting bulkhead rivet line.

 HCAANewsletter/IMG_6033.JPG

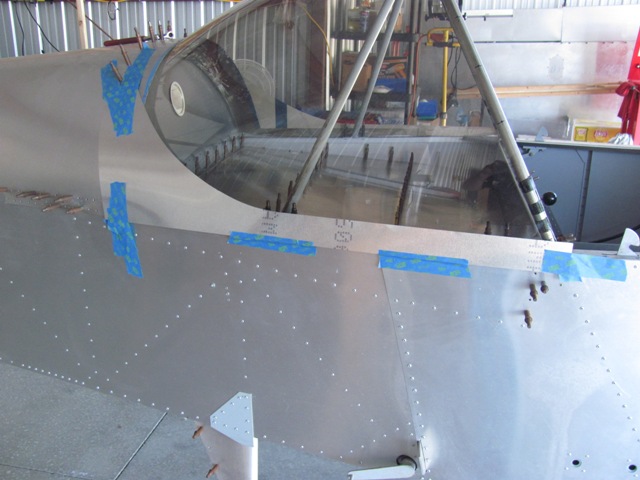

Jun 4, 2018 - New right side aluminum trim piece based on template.

HCAANewsletter/IMG_6035.JPG

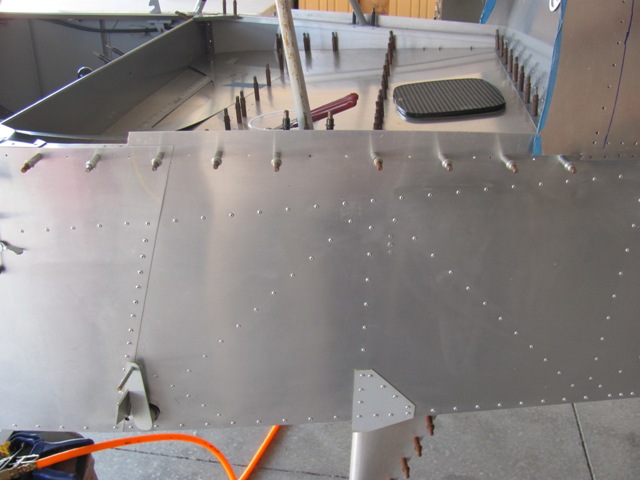

Jul 17, 2018 - Fuselage skin and longeron drilled preparing for rear canopy cover trim.

HCAANewsletter/IMG_6040.JPG

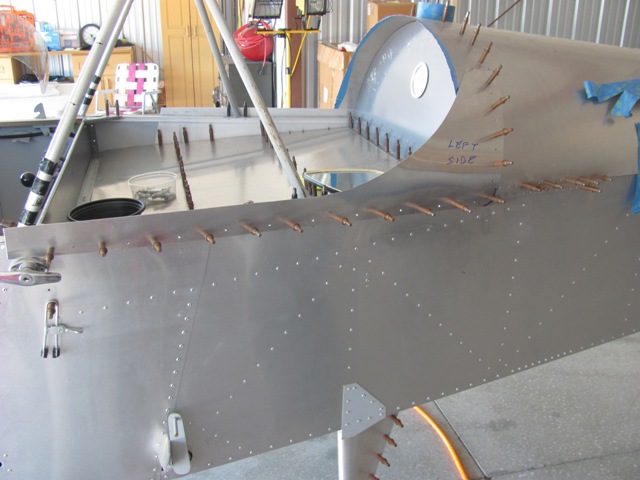

Jul 18, 2018 - The left side trim piece clecoed in place.  Used a combination of back-drilling through the

longeron, and a strap finder to locate the holes.

HCAANewsletter/IMG_6043.JPG

Jul 18, 2018 - Right side trim piece clecoed in place.

HCAANewsletter/IMG_6047.JPG

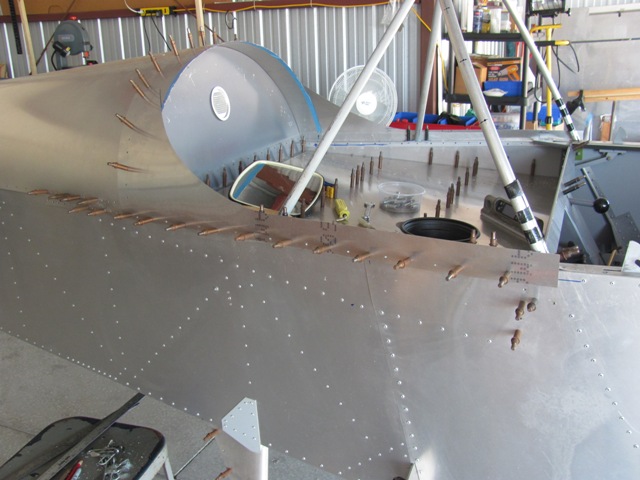

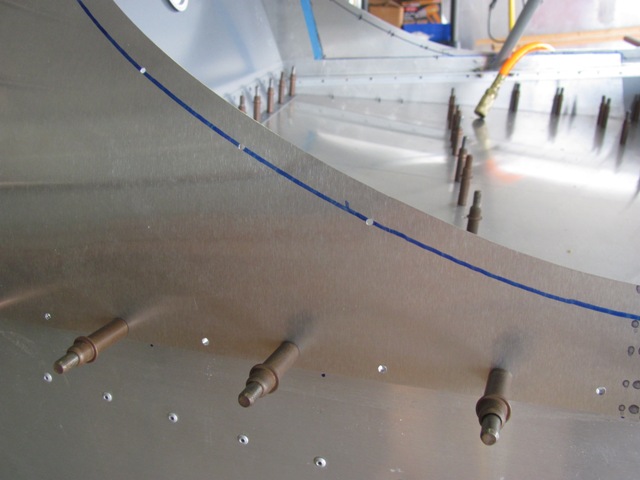

Jul 19, 2018 - Blue line indicates approximate locations for drilling into the canopy.

HCAANewsletter/IMG_6052.JPG

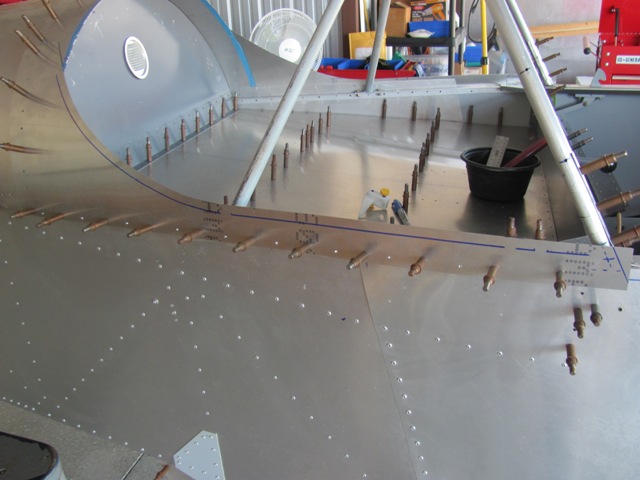

Jul 20, 2018 - The trim piece is predrilled before drilling into the canopy.

HCAANewsletter/IMG_6055.JPG

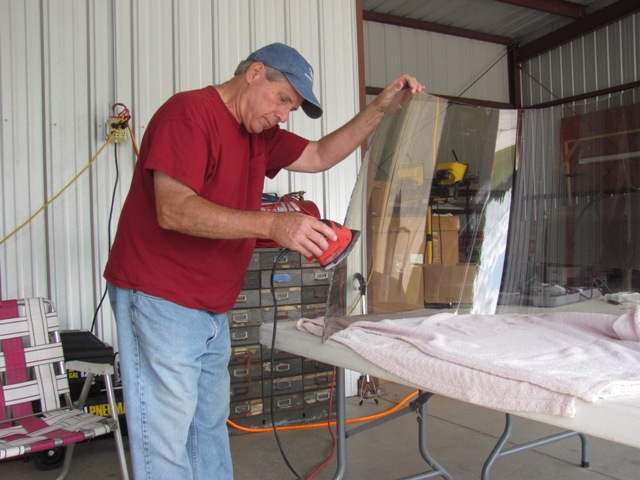

Jul 27, 2018 - Gary Reynolds helping again.  Here he is sanding after trimming

more from from the left side of the rear canopy.

HCAANewsletter/IMG_6063.JPG

Jul 27, 2018 - Rear canopy in place, placing first cleco.

HCAANewsletter/IMG_6064.JPG

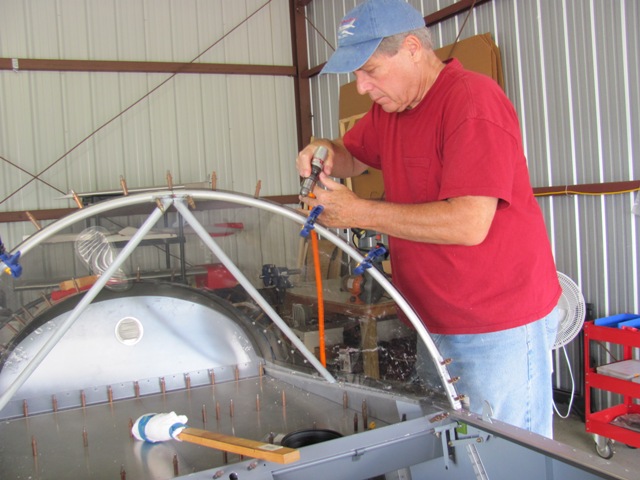

Jul 27, 2018 - Back portions of canopy clecoed.  Continuing to drill canopy to rear support hoop.

HCAANewsletter/IMG_6065.JPG

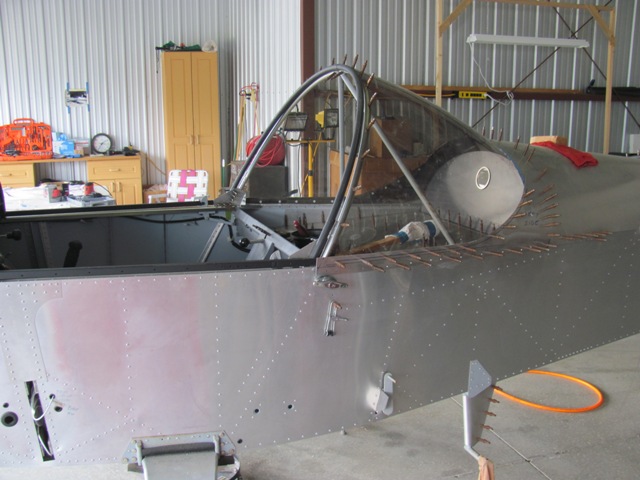

Jul 27, 2018 - Rear canopy finally drilled and clecoed in place.

HCAANewsletter/IMG_6066.JPG

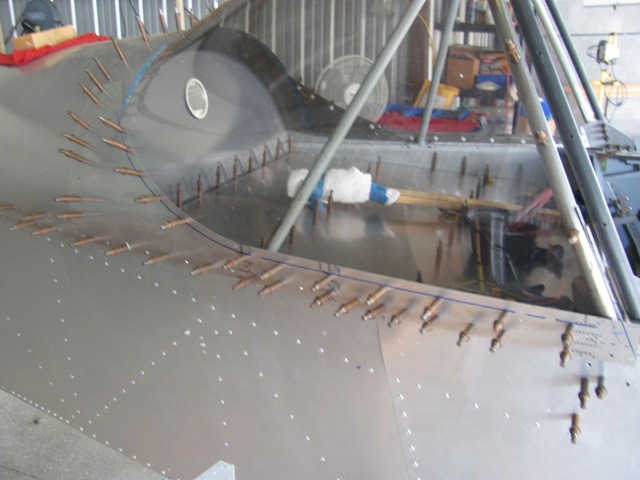

Jul 27, 2018 - A closer look at all the clecos so far.

HCAANewsletter/IMG_6067.JPG
