JimSnyder39/IMG_5667.JPG

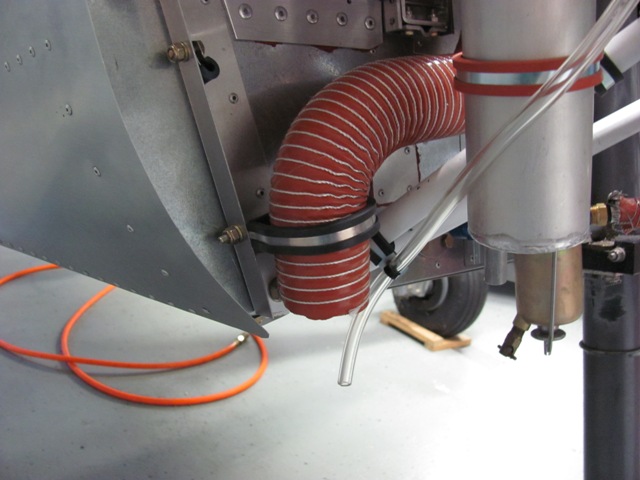

Apr 27, 2015 - Added 2-1/18 inch cushion clamp to support scat hose from cabin heat bypass.
JimSnyder39/IMG_5669.JPG

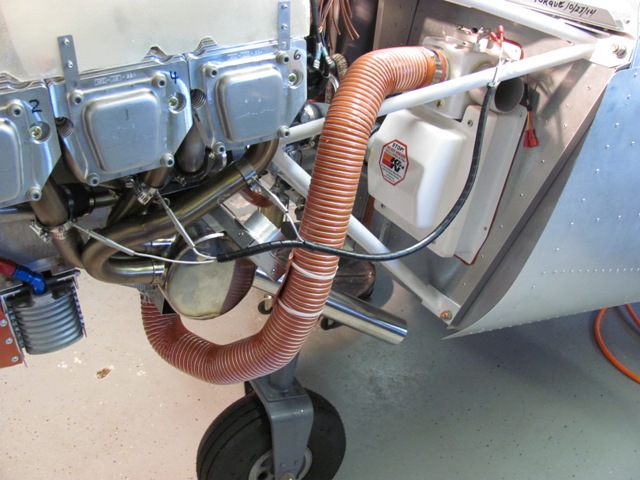

Apr 27, 2015 - Installed scat hose from carb heat muff to air filter box.
JimSnyder39/IMG_5670.JPG

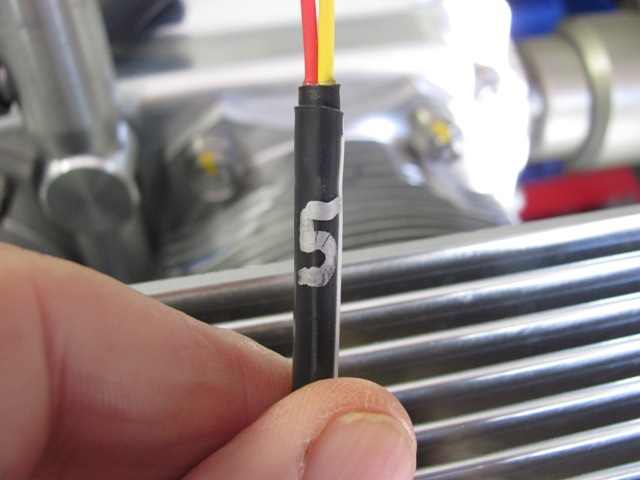

Apr 28, 2015 - Marking each EGT and CHT lead with corresponding cylinder number.
JimSnyder39/IMG_5671.JPG

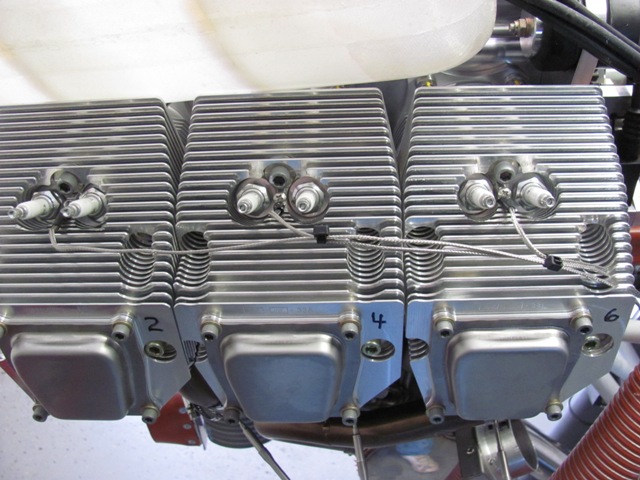

Apr 28, 2015 - Routing of the CHT leads across the cylinders
JimSnyder39/IMG_5672.JPG

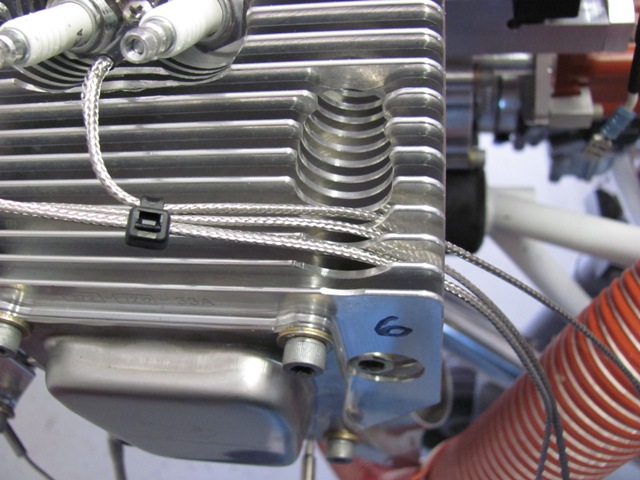

Apr 28, 2015 - Running the CHT leads down and out.
JimSnyder39/IMG_5674.JPG

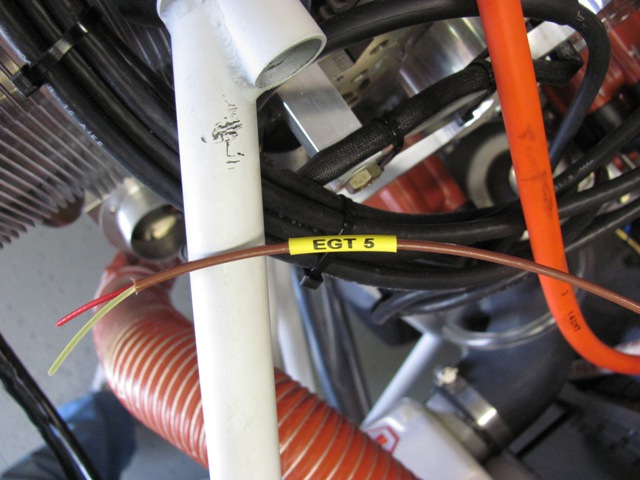

Apr 30, 2015 - One of the leads from the Dynon EMS harness.  Wires color coded to match leads from the cylinders.  Ends to be stripped.
JimSnyder39/IMG_5676.JPG

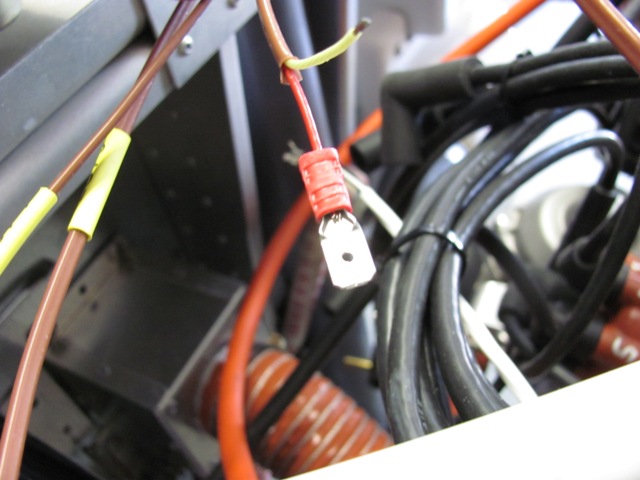

Apr 30, 2015 - Male spade terminal crimped onto lead.
JimSnyder39/IMG_5677.JPG

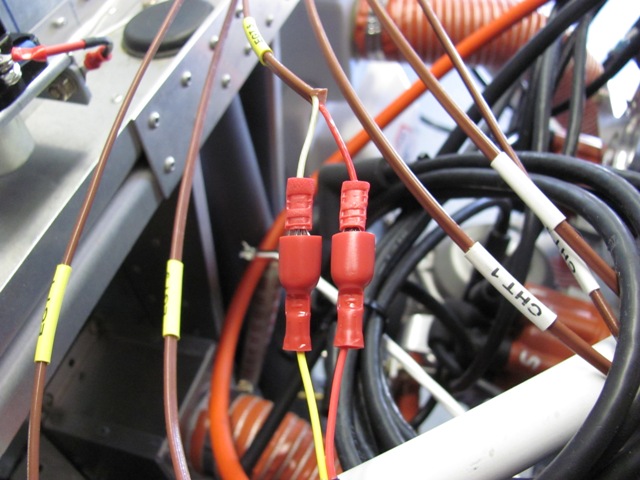

Apr 30, 2015 - Leads from Dynon connected to cylinder leads.
JimSnyder39/IMG_5680.JPG

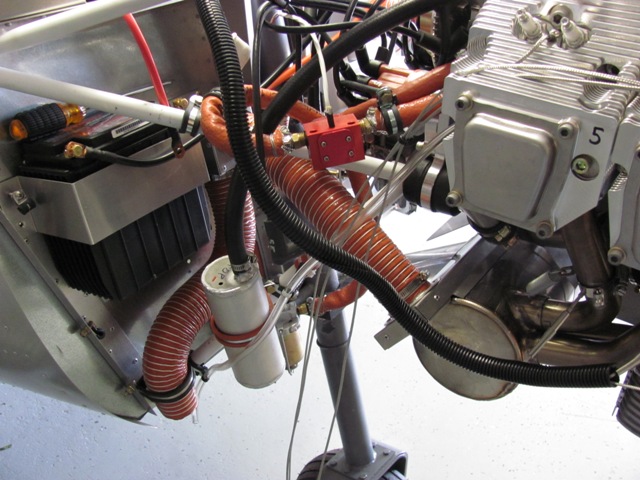

Apr 30, 2015 - The three EGT leads encapsulated in conduit.
JimSnyder39/IMG_5684.JPG

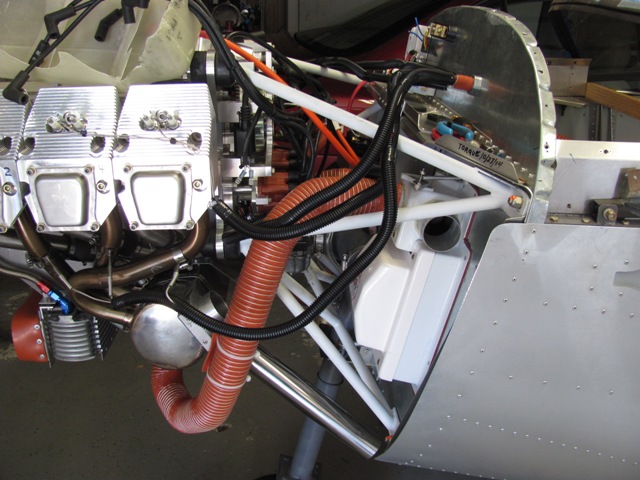

May 1, 2015 - Finished connecting right side CHT leads, then connected all left side EGT & CHT leads.
JimSnyder39/IMG_5685.JPG

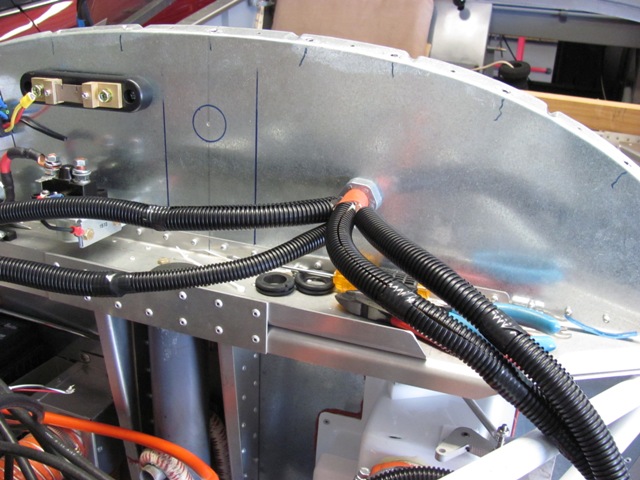

May 1, 2015 - All EGT & CHT leads encapsulated in conduit.  Proper routing and support will be done later.
