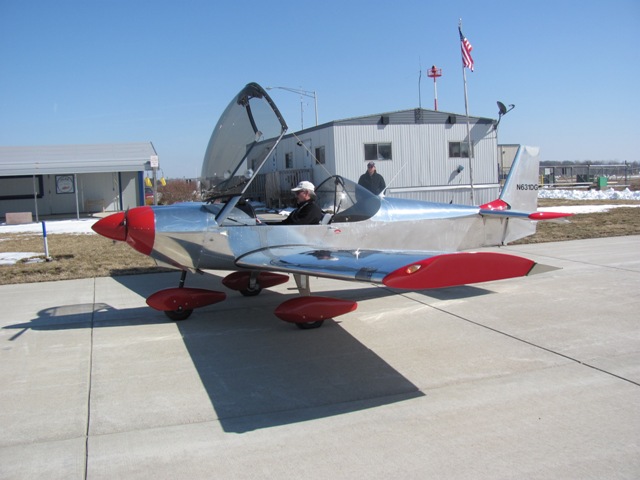

Mar 8, 2013 - Dave Gardea, builder of a 601/650 hybrid based in Shelbyville, met me at Hendricks Co. Airport.  I was able to take some measurements and photos of his canopy.

HCAANewsletter/IMG_4994.JPG

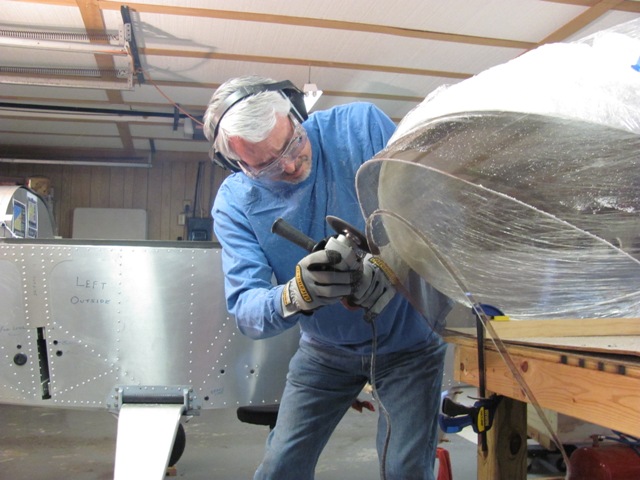

Mar 11, 2013 - Dave Gardea helping me make the initial cuts on the front edge of my canopy.  Very tedious work.  Measure, remove, cut, fit; measure, remove, cut, fit; measure, remove, cut, fit; over and over and over.

HCAANewsletter/IMG_4995.JPG

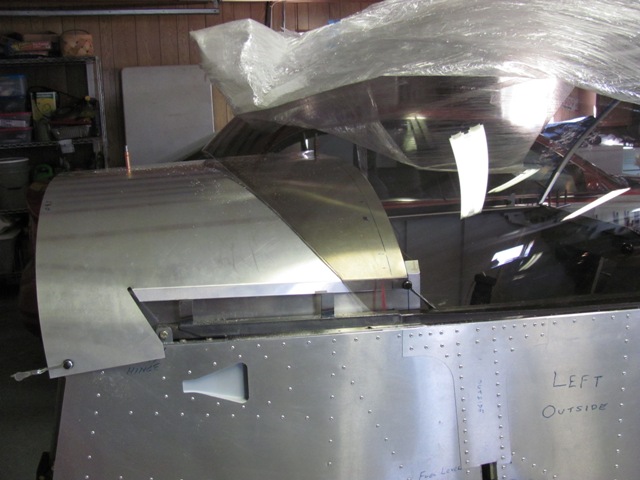

Mar 11, 2013 - Canopy starting to fit a little better.

HCAANewsletter/IMG_4998.JPG

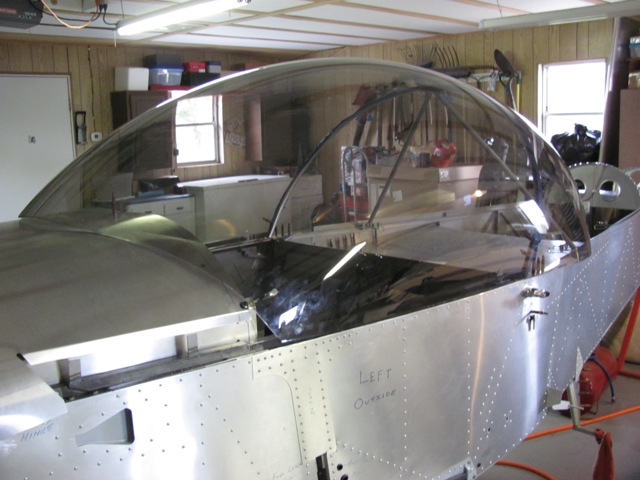

Apr 8, 2013 - Still working on canopy.  The front is fitting a little better each time, but the back won't settle down on the rear support hoops.

HCAANewsletter/IMG_5002.JPG

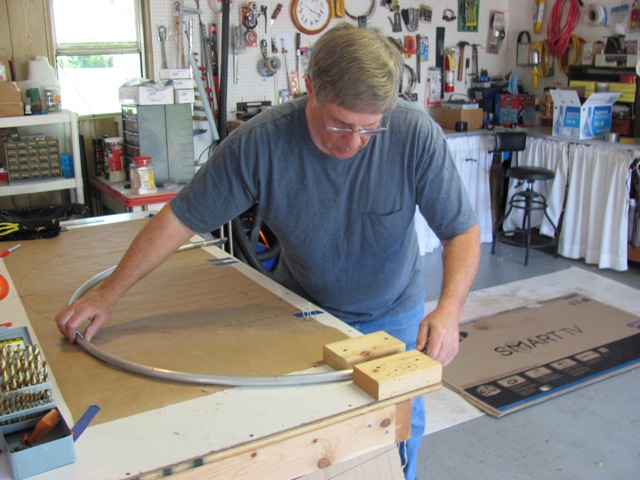

May 15. 2013 - Gary Reynolds, friend and EAA Tech Counselor, came over to help re-profile the rear support hoops to fit the profile of the canopy.  Gary is using a jig to slowly bend and straighten sections of the aluminum tubing.

HCAANewsletter/IMG_5004.JPG

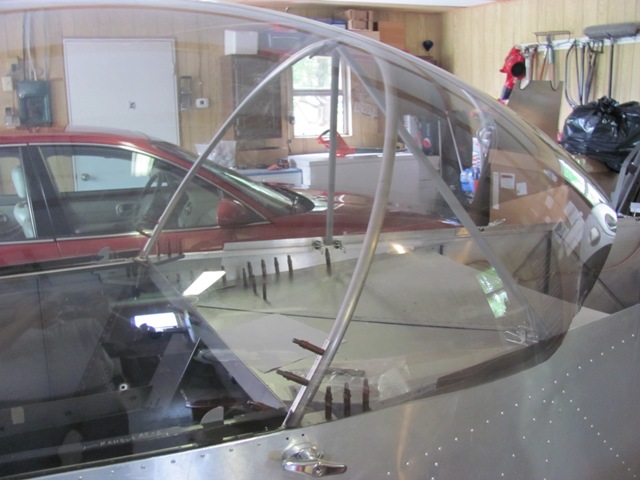

May 15. 2013 - The canopy now sits down on the hoop.  Gary re-profiled a second hoop to match this one.  Three hours of constant work.  Thanks, Gary !!!

HCAANewsletter/IMG_5007.JPG

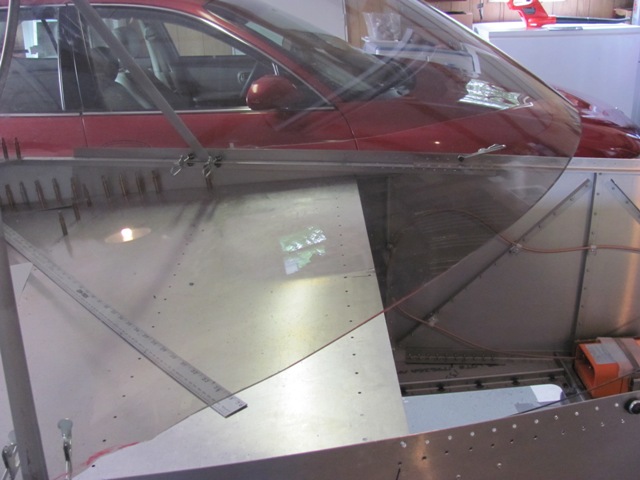

May 15. 2013 - Rear of canopy requires cut off to be flush with the baggage bulkhead indicated by the rear rivet line on the baggage floor.

HCAANewsletter/IMG_5008.JPG

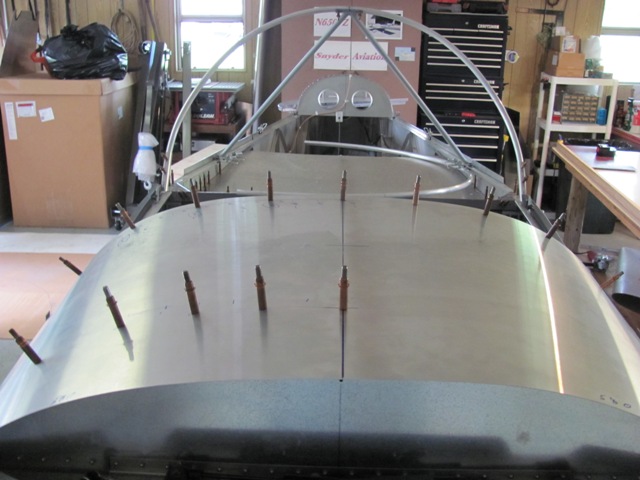

May 16. 2013 - Drilling and cleco-ing the forward top skin, which covers the instrument panel wring, cabling, etc.

HCAANewsletter/IMG_5013.JPG

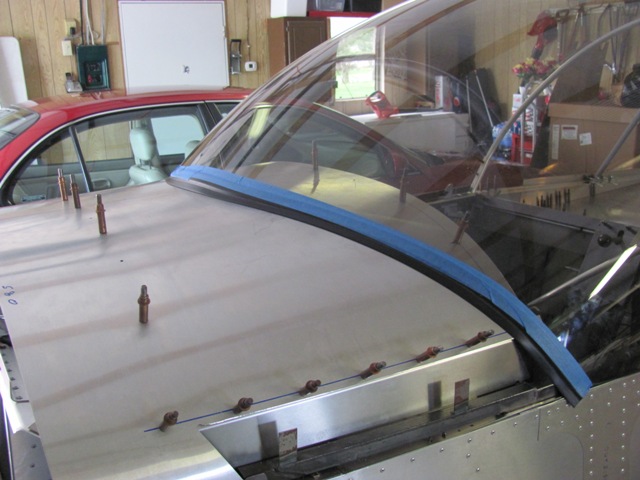

May 16. 2013 - Trial fit of canopy with rubber seal temporarily attached.

HCAANewsletter/IMG_5028.JPG

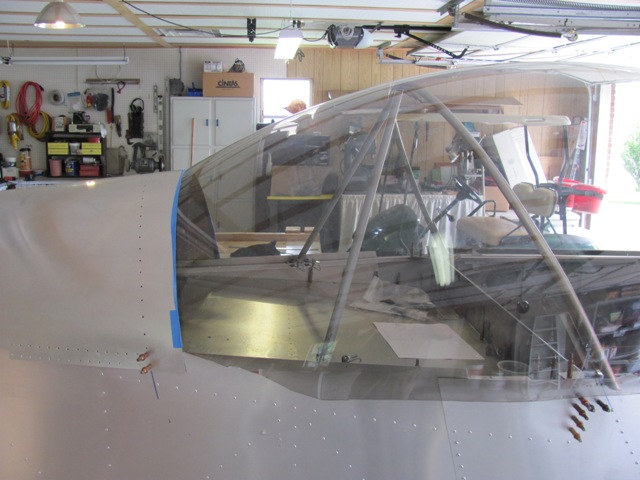

May 27, 2013 - Testing the rear top skin around rear portion of the canopy.

HCAANewsletter/IMG_5029.JPG

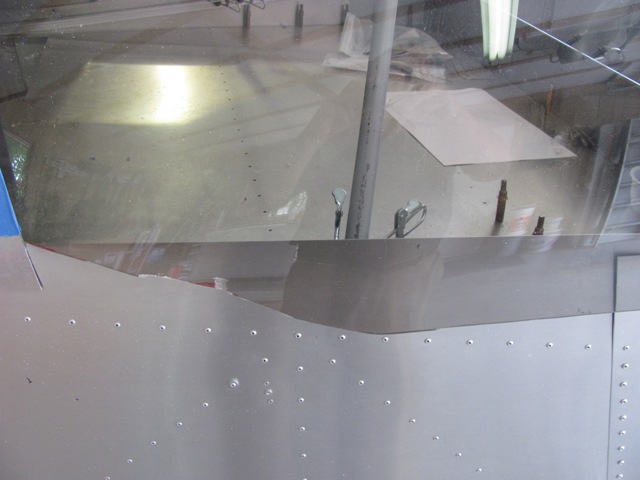

May 27, 2013 - Massive amount of canopy needs to be trimmed.

HCAANewsletter/IMG_5030.JPG

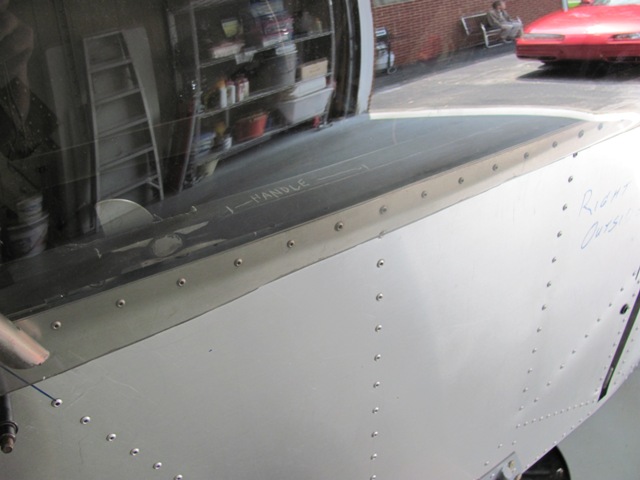

Canopy along side rails also needs trimmed.

HCAANewsletter/IMG_5036.JPG

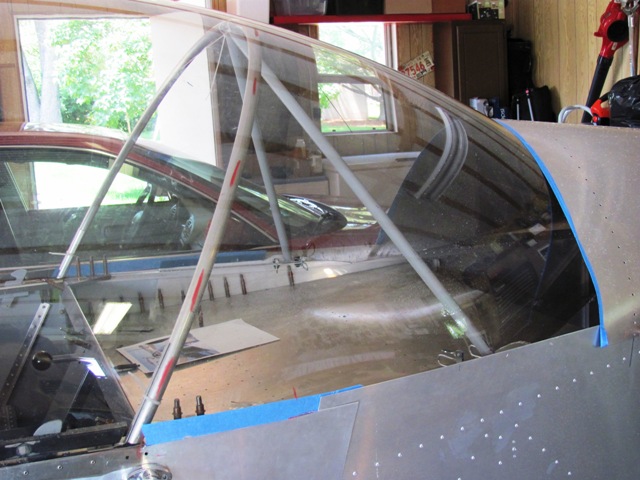

May 29, 2013 - Trimmed rear sides of canopy to fit inside the fuselage.  Canopy fitting better.  This area will be covered with flashing later.

HCAANewsletter/IMG_5038.JPG

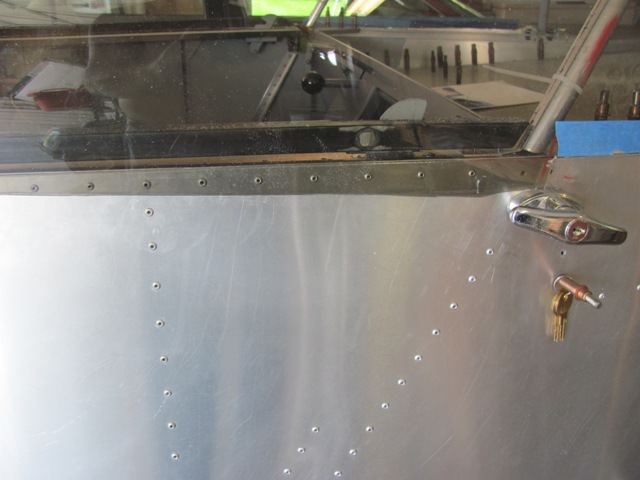

May 29, 2013 - Next is to trim to the side rails.

HCAANewsletter/IMG_5041.JPG

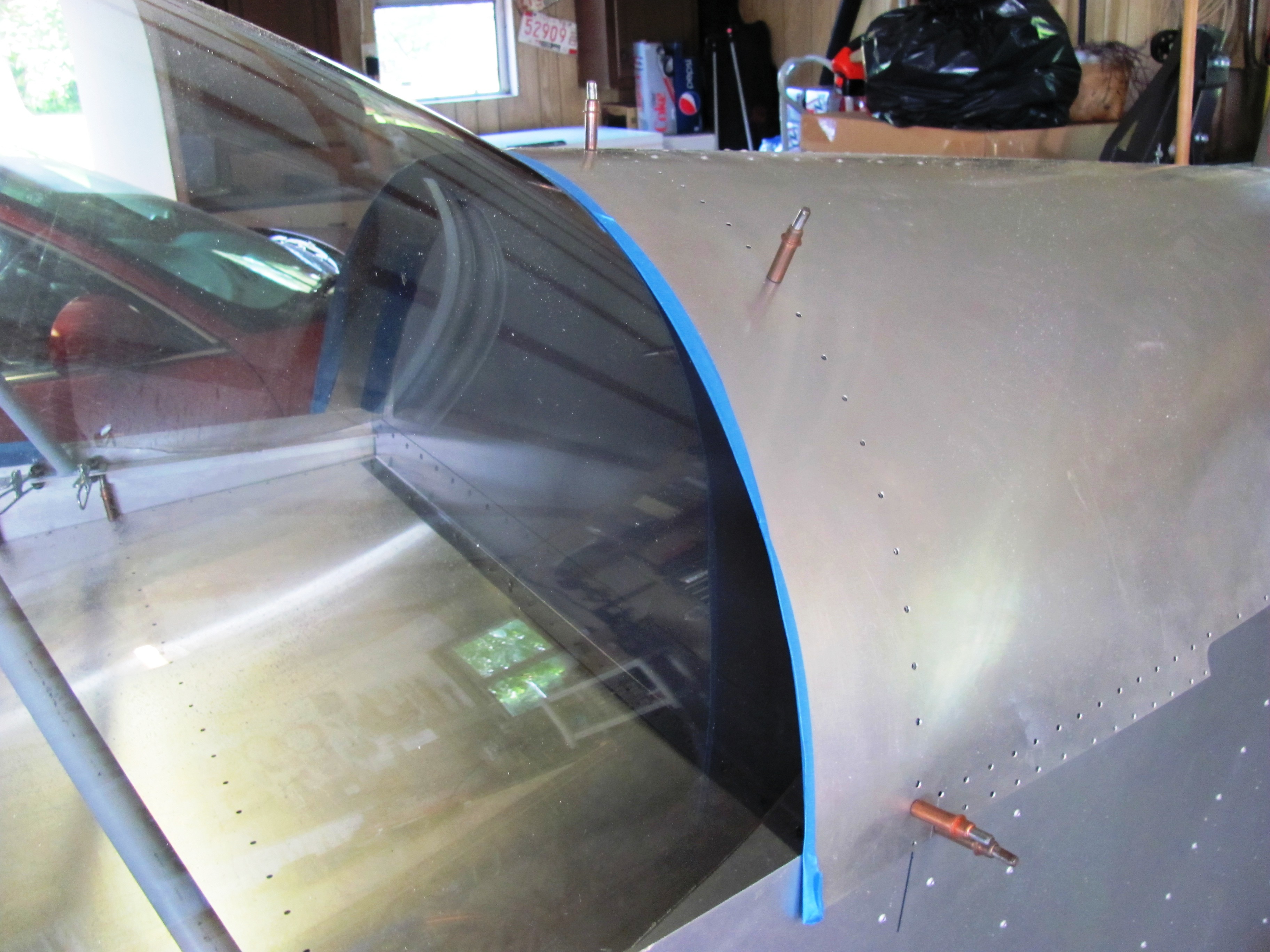

May 30, 2013 - Cut off rear portion of canopy to match bulkhead.

HCAANewsletter/IMG_5046.JPG

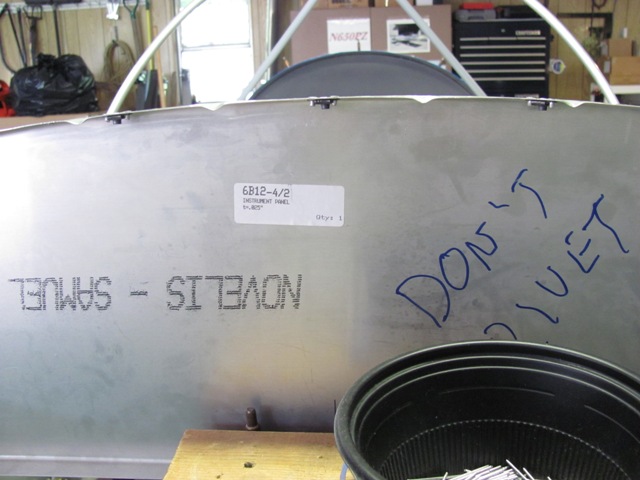

May 31, 2013 - Installed nutplates on panel and firewall for attaching the forward top skin.

HCAANewsletter/IMG_5047.JPG

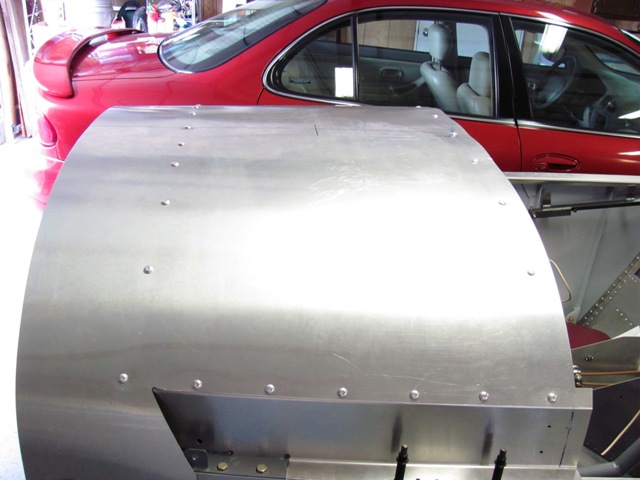

May 31, 2013 - Forward top skin attached using #8-32 truss head screws into the nut plates.  This will permit future access to the panel wiring and other components.
