JimSnyder25/IMG_4425.JPG

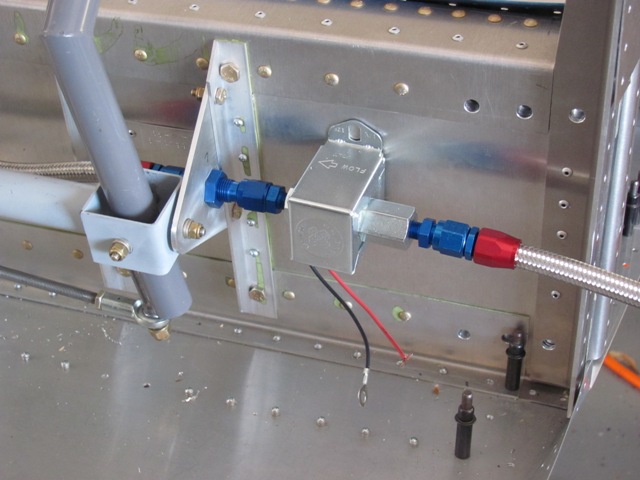

Jun 27, 2012 - Installed electric fuel pumps on left & right sides between lines coming from wing tanks, then going to fuel selector.

JimSnyder25/IMG_4432.JPG

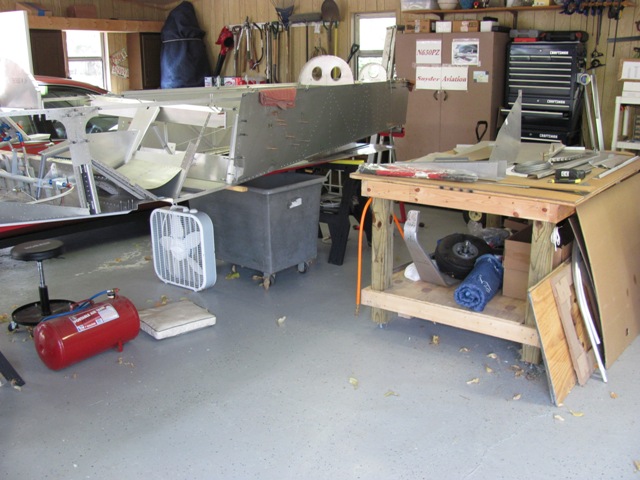

Jul 8, 2012 - Removed from work table to make room for attaching left wing.

JimSnyder25/IMG_4434.JPG

Jul 8, 2012 - My son, Jason, helping me transport left wing back home.

JimSnyder25/IMG_4436.JPG

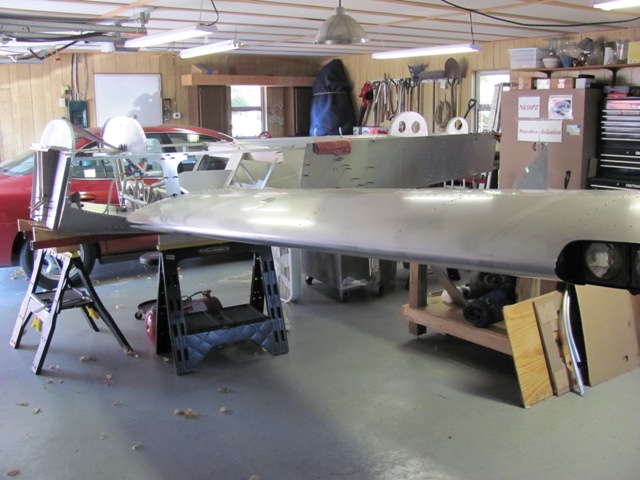

Jul 8, 2012 - Dry fit left wing.  End (out of picture) is  supported by roller stand.  Needed to verify position of Rear Spar Attach tab before riveting the area.

JimSnyder25/IMG_4440.JPG

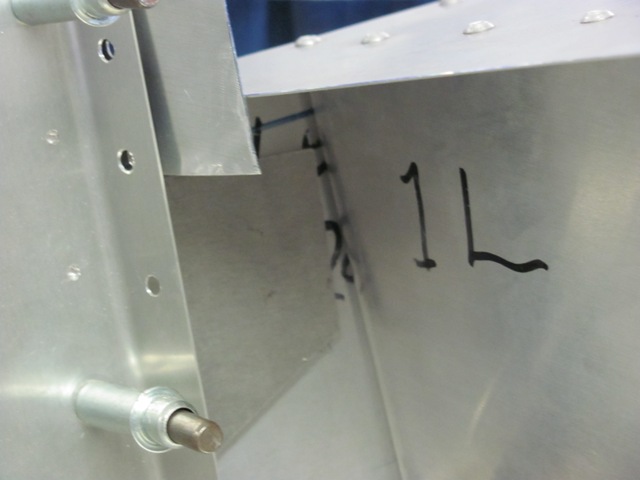

Jul 8, 2012 - Rear Spar Attachment Tab (trapezoid shape) just inside the Rear Spar.  A bolt will placed through the tab & rear spar during final assembly.  Everything OK.

JimSnyder25/IMG_4444.JPG

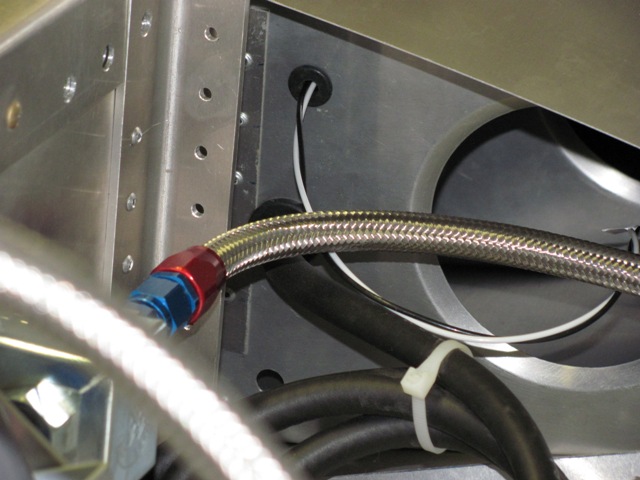

Jul 8, 2012 - Routing of fuel hose from tank will be moved to align with steel braid hose fitting.

JimSnyder25/IMG_4464.JPG

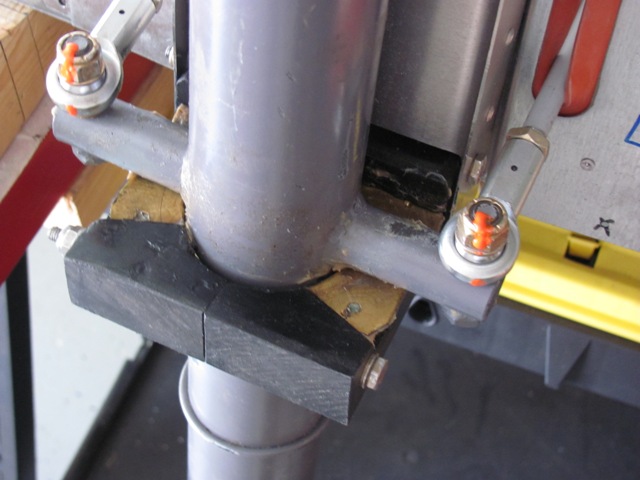

Jul 17, 2012 - Re-installed nose strut bearing block, with brass bearing insert.  Makes turning much easier.

JimSnyder25/IMG_4465.JPG

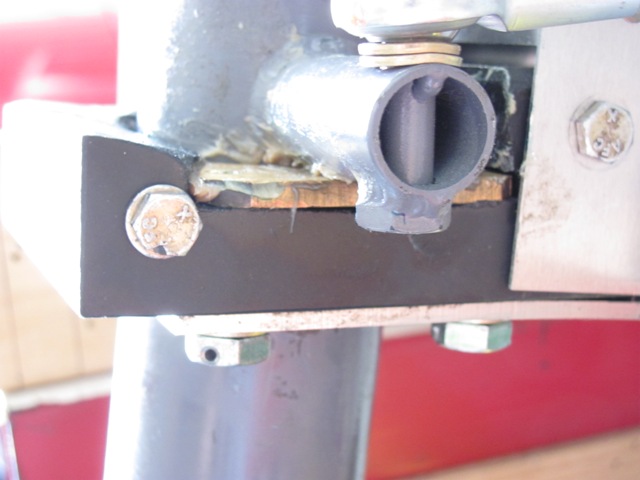

Jul 17, 2012 - Side view of strut bearing block with brass insert.

JimSnyder25/IMG_4466.JPG

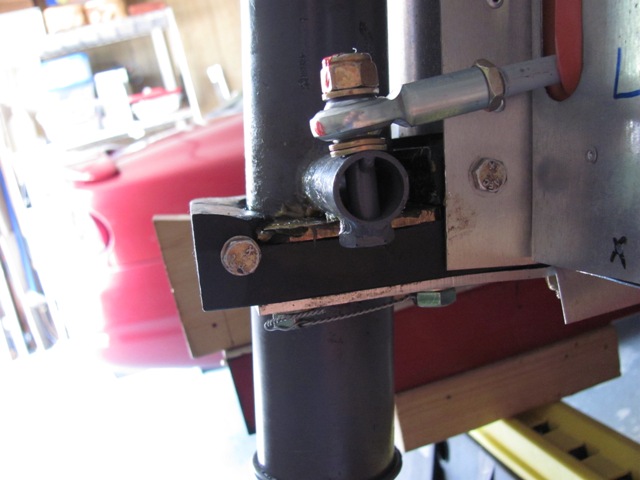

Jul 29, 2012 - Saftey wired 4 bottom bolts holding strut bearing block to bearing support bracket.

JimSnyder25/IMG_4537.jpg

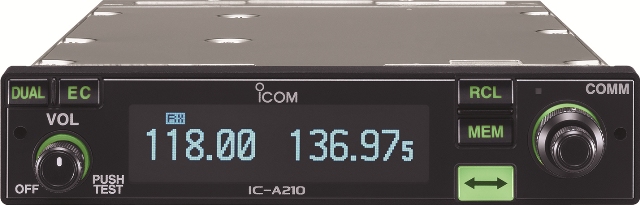

Jul 30, 2012 - While at Oshkosh - Airventure 2012, I purchased an ICOM A210 com radio.  Delivered by UPS today.

JimSnyder25/IMG_4538.jpg

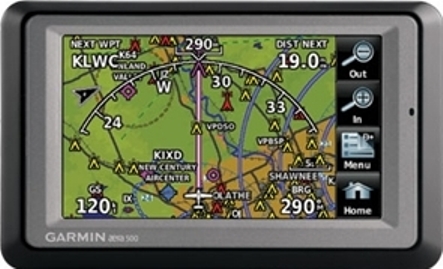

Jul 30, 2012 - While at Oshkosh - Airventure 2012, I purchased a Garmin Aera 500 GPS.  Delivered by UPS today.
